NovaStar, Uni-E 250, Shuttle Loom, Working Width 2140mm, 160 ppm

NovaStar, Uni-E 250, Shuttle Loom, Working Width 2140mm, 160 ppm

Description

  1. Overview
    1. Shuttle looms with automatic change spool device for technical fabrics, denim, and other fabrics.

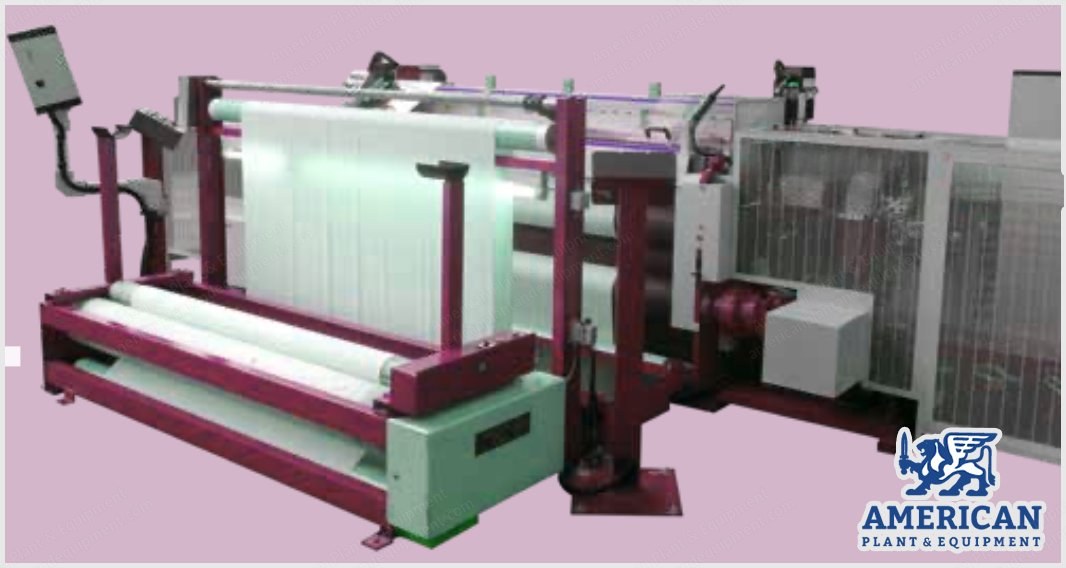

    2. A large machine with a white sheet
  2. Technical Features
    1. Maximum weaving width: 2140mm – min. 1000mm (on request be possible all weaving width).
    2. The loom is suitable for weaving tubular fabrics and flats.
    3. Adjustable wire/cm. max. 200 – min. 5.
    4. Max speed from 150 rpm.
    5. Maximum warp tension: daN/m 1500.
  3. Shuttle Driving System (Patented)
    1. Controlled by 2 toothed racks driven by servomotor and mounted at the left and right of the weaving machine (the toothed racks throw the shuttle from right to left and the other way round).
    2. Controlled by 2 motorized brakes autosetting by PC that block shuttle in position exact.
  4. Electronic Rotary Dobby Type R.E.R
    1. R = dobby.
    2. E = electronically controlled.
    3. R = rotary.
    4. Suitable for driving from 2 to 52 heddle frames.
    5. Dobby control by the means of the loom main PC.
    6. Operating mode: open shed and closed shed setting to be selected by the PC-program.
    7. Easy “0” point setting of the heddle frames.
    8. Adjustment position heddle frames for each fabrics type.
    9. Manually control and separate position setting of each single heddle frame.
    10. Adjustment possibility of the heddle frame timings and stops.
    11. Adjustment possibility of the heddle frame phase timing and exchange.
    12. Able to weave multilayer fabrics (several pattern possibility).
  5. Electronic Device Unifil Type
    1. UNI = Unifil.
    2. E = electronic.
    3. 250 = length shuttle mm. 250.
    4. Complete with device winding shuttle with automatic direct change in the weaving machine and with adjustment of the parameters by PC.
  6. Loom Control Device
    1. The complete loom control, all data settings and operating function adjustments are carried out by the electronic control device and the especially developed loom managing.
    2. All electronically and electric control devices are installed inside the main switchboard.
    3. All data, as well as loom driving and control functions, are developed by an industrial PC with software Windows CE.
    4. Speed: 160 picks per minute.
