NovaStar, Jute Bag Production Line, 2000 Bags/8 Hours Capacity, 4-Color Printing (New)

NovaStar, Jute Bag Production Line, 2000 Bags/8 Hours Capacity, 4-Color Printing

Description

  1. Overview
    1. Complete jute bag production line for coffee and other crops.
    2. Production capacity: 2000 pieces per day per 8 hours.
    3. Standard coffee bag dimensions: 44 inches x 26.5 inches.
    4. Standard coffee bag weight: 2.25 lbs (1.02 kg).
    5. Standard coffee bag capacity: 60 to 70 kg of coffee beans.
    6. Stitching: hemmed at mouth, dry sewn.
    7. Stripes: three blue stripes for identification.
  2. Production Line Machines
    1. Jute yarns warping machine: 1 set.
    2. Jute fabric weaving machine: 12 sets.
    3. Tucking device: 12 sets.
    4. Jute fabric calender machine: 1 set.
    5. Fabric folding and cutting machine: 1 set.
    6. Stitching machine: 5 sets.
    7. 4 colors logo printing machine: 1 set.

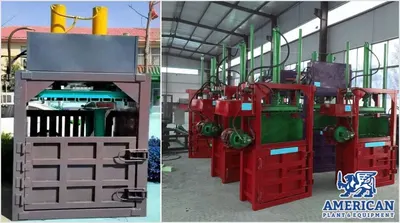

    8. Bale pressing machine: 1 set.
    9. Fabric inspecting machine: 1 set.
    10. Humidifying equipment: 1 set.

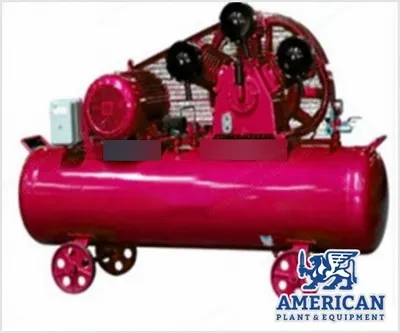

    11. Air compressor: 1 set.
    12. Heald wire shelf: 2 sets.

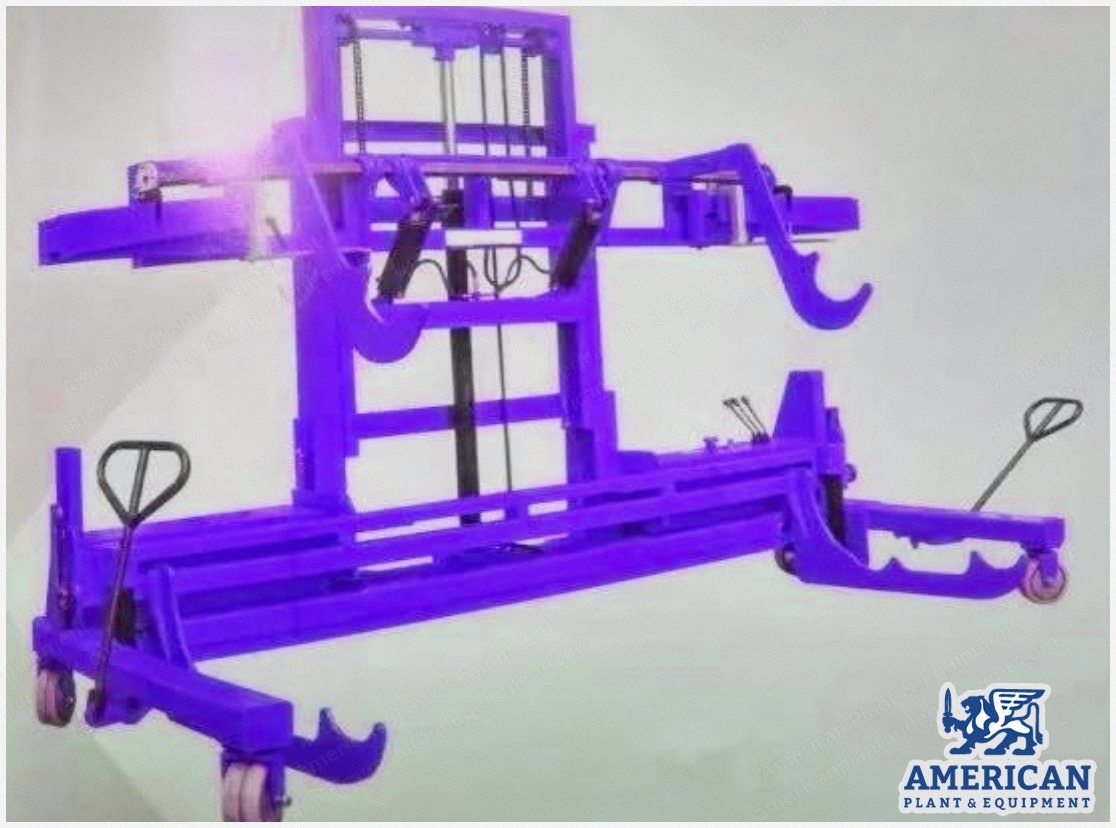

    13. Beam loading cart: 1 set.
    14. Waste yarns winder: 1 set.
    15. 1-2 year spare parts for preparation.

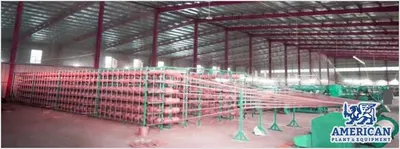

  3. Jute Yarn Warping Machine Specifications
    1. Width: 2600 mm.
    2. Beam flange diameter: 600 mm.
    3. Number of bobbin frames: 1100 pieces.
    4. Barrel spacing: 300 mm.
    5. Warping speed: 0 to 100 m/min, infinitely adjustable.
    6. Constant linear speed accuracy of the entire warp axis: ≤ ± 2%.
    7. Maximum warp tension (strip tension): 600 N.
    8. Precision of warp tension: ≤ ± 2%.
    9. Single yarn tension accuracy: ≤ ± 3%.
    10. Wire guide speed: 0001 to 9999 mm/r, stepless adjustable.
    11. Wire guide accuracy: ≤ ± 0.02%.
    12. Braking distance: less than 3 m at a speed of 400 m/min.
    13. Infrared photoelectric induction, stop when disconnected.
    14. Reliability rate of automatic stop after head breakage: 100%.
    15. Air supply: 0.3 L at 6 MPa.
    16. Operating noise of the entire machine without load shall not exceed 80 dB.
    17. Power: 7.5 kW; voltage: 480 V / 60 Hz (can be matched according to your voltage).
    18. Total weight: 5800 kg.
    19. Dimensions: 4800 x 98 x 1200 mm.

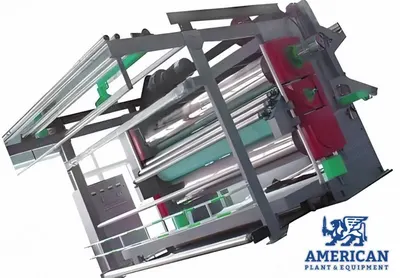

  4. Jute Fabric Calender Machine Specifications
    1. Frame thickness: 80 mm, with wall panels and 12# channel steel.
    2. Standard configuration consists of 3 rollers, arranged in a vertical stacking pattern (two rollers on top and one at the bottom).
    3. Roller size diameter: heating mirror roller 270 x 1400 mm, total power of mirror roller electric heating tubes 15.5 kW, 9 electric heating tubes, material 45 steel, electroplated.
    4. Surface is mirror-like, ground with imported polishing belts; dimensional error of structural unit less than ±5 µm.
    5. Middle passive nylon roller: made of 45 steel after precision processing and coated with nylon rubber; rubber thickness no less than 40 mm, hardness 80° ± 2° on the Shore scale; diameter 350 x 1400 mm.
    6. Support roller heating mirror roller: 270 x 1400 mm, total power of electric heating tubes 15.5 kW, 9 electric heating tubes, material 45 steel, electroplated.
    7. Temperature of each area on the surface of the heating roller uniform, with temperature difference within an error range of ± 2.5 °C; no significant temperature lag.
    8. Surface temperature can remain relatively stable for a long time; temperature of each area on the surface of the patterned roller uniform, with temperature difference within an error range of ± 1.5 °C.
  5. Condition
    1. Used industrial machinery.
    2. Includes 1-2 year spare parts for preparation.
