NovaStar, SF145, Drainage Sheet Production Line, 1000mm to 4000mm Working Width, PLC Control
Scroll to zoom
100%
Description
Overview
Production line uses a variety of resins such as HDPE, LLDPE, MDPE resin etc. (new materials and recycled materials are available) as raw materials.
Adopts casting extrusion and vacuum plastic absorption process through concave and convex roller to produce single color or double color drainage sheet.
Shape is a circular cone, cylindrical, spherical shell with three-dimensional space and a certain support solidity.
Liquids and gases can flow in it to achieve the effect of preventing and draining water.
Technical Parameters
Model and specification: OVA-13, Nova-18, Nova-23, Nova-33, Nova-43

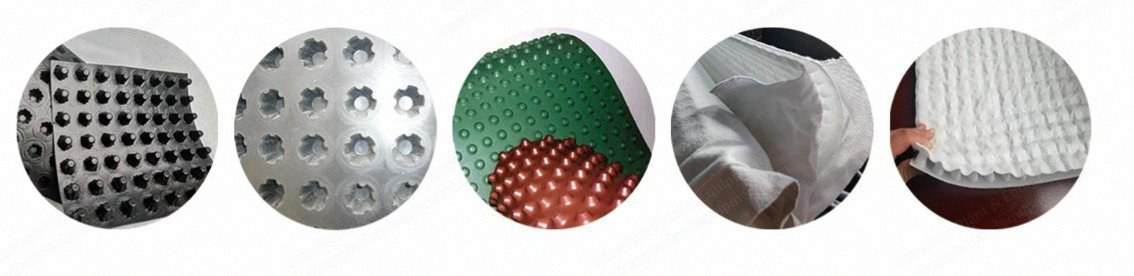

Products: HDPE drainage sheet, geo-textile compound with drainage sheet
Thickness range (mm): HDPE board 0.2 to 2.5 mm, composite board 0.1 to 2.5 mm
T-die size (mm): 1300, 1800, 2300, 3300, 4300
Max working width (mm): 1000, 1500, 2000, 3000, 4000
Cooling method: Cooling by circulating water
Specifications
Capacity: High output
Control system: PLC system
