NovaStar, RL149, Complete Bucket Shredding Line, 1200mm Working Width, 2 t/h Capacity (New)

NovaStar, RL149, Complete Bucket Shredding Line, 1200mm Working Width, 2 t/h Capacity

Description

  1. Overview
    1. Working width: 1200 mm
    2. Output particle size: 10 mm
    3. Production: 2 tons per hour
  2. System Components
    1. Belt conveyor (3 sets) – main power: 4 kW, 3 kW, 6 kW
    2. Double-shaft shredder (1 unit) – main power: 90 kW
    3. Grinder (1 unit) – main power: 180 kW
    4. Electric panel (1 unit)
    5. Total machines: 6, total main power: 283 kW

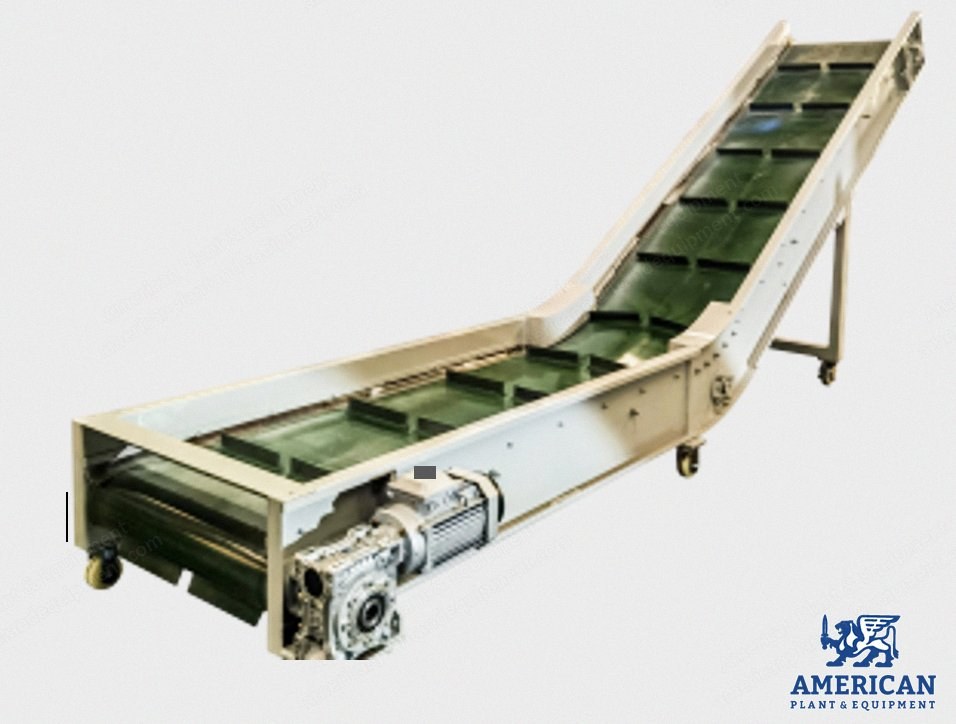

  3. Belt Conveyor (3 Sets)
    1. Purpose: conveys materials to the drum screen
    2. Belt material: PVC, 5 mm thick, 50 mm high baffle plate
    3. Belt width: 1000 mm; model 3000GS magnetic roller at the discharge port
    4. Overall dimensions: 1000 mm + 5000 mm, height to be determined
    5. Motor power: 4 kW / 3 kW / 6 kW
    6. Equipped with removable wheels made of wear-resistant and pressure-resistant nylon
    7. Equipped with a tensioning device for easy belt tension adjustment
    8. Frame material: carbon steel, 100 x 80 x 6 mm
    9. Side panel thickness: 3 mm

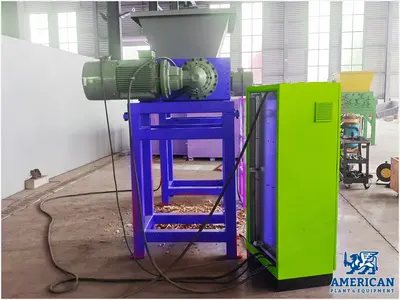

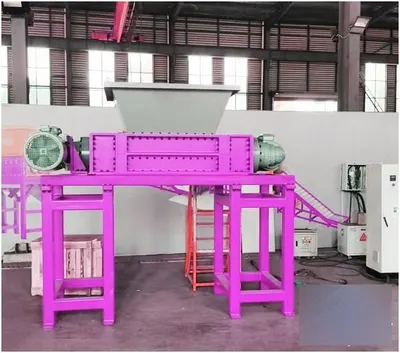

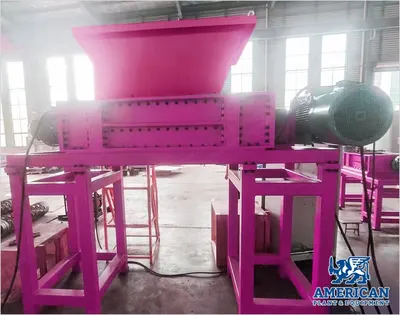

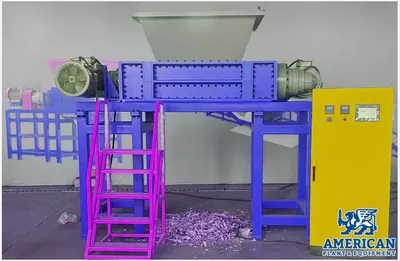

  4. Double-Shaft Shredder (1 Unit)
    1. Pre-crushing, shredding irregular flakes
    2. Main motor power: 45 kW x 2 sets
    3. Shaft width: 1200 mm
    4. Blade diameter: 450 mm
    5. Roll width: 1200 mm
    6. Number of rotary blades: 24, shearing type
    7. Blade material: SKD-11
    8. Gearbox: 2 sets, ZLY350
    9. Rotating speed: 23 rpm
    10. Anti-seizure and reverse functions
    11. Feeding capacity: 2000 kg
    12. Blade shaft diameter: 185 mm
    13. Blade thickness: 100 mm
    14. Safety guardrail designed according to national standards
    15. Accessible steps deck and maintenance platform
    16. Frame material: Q235 carbon steel
    17. Paint: anti-rust paint thickness 125 mm, topcoat 60 mm

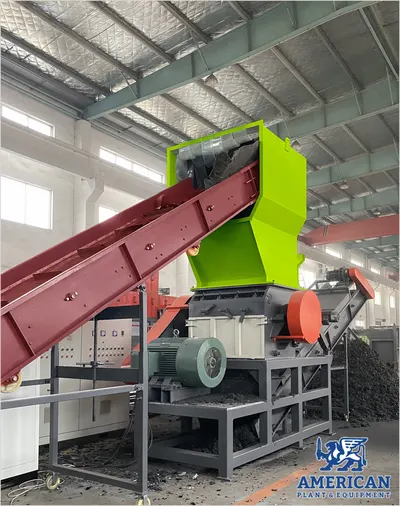

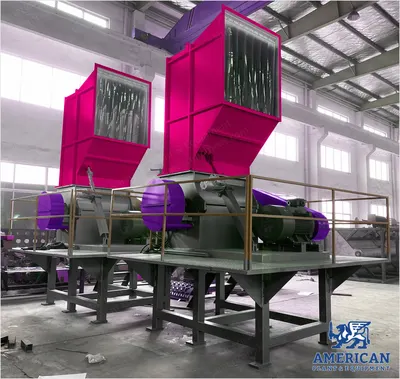

  5. Crusher (1 Unit)
    1. Secondary grinding of materials
    2. Motor power: 90 kW
    3. Screen size: 10 mm diameter hole, screen thickness: 10 mm
    4. Spindle diameter: 600 mm
    5. Spindle width: 1200 mm

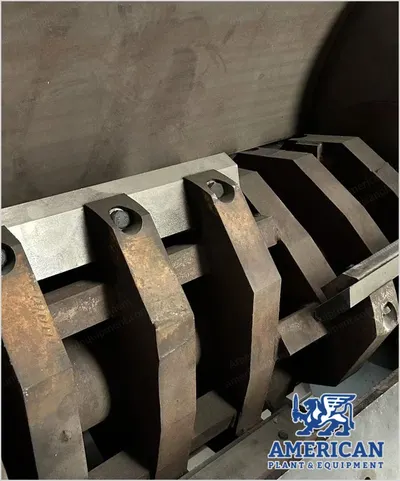

    6. Number of rotating blades: 10
    7. Number of fixed blades: 8
    8. Blade material: SKD-11, specially treated for durability and wear resistance
    9. Rotor speed: 560 rpm
    10. Housing thickness: 40 mm
    11. External bearing seat so that plastic material can be water sprayed
    12. Spindle made of 45# quenched and tempered steel
    13. Water-spray grinding provides a cleaning effect
    14. A plastic curtain is installed at the grinder feed port to effectively block dust generated during operation
    15. The grinder features a hydraulically operated 1.5 kW blade change mechanism and a shock-absorbing system that effectively absorbs impact during the grinding process, protecting the grinder; idle noise is below 80 dB
    16. The grinder is equipped with a lubrication system to ensure bearing lubrication and tight sealing
    17. The connection between the discharge port and the horizontal spiral feed port is sealed to prevent stains, material leakage, and potential safety hazards
