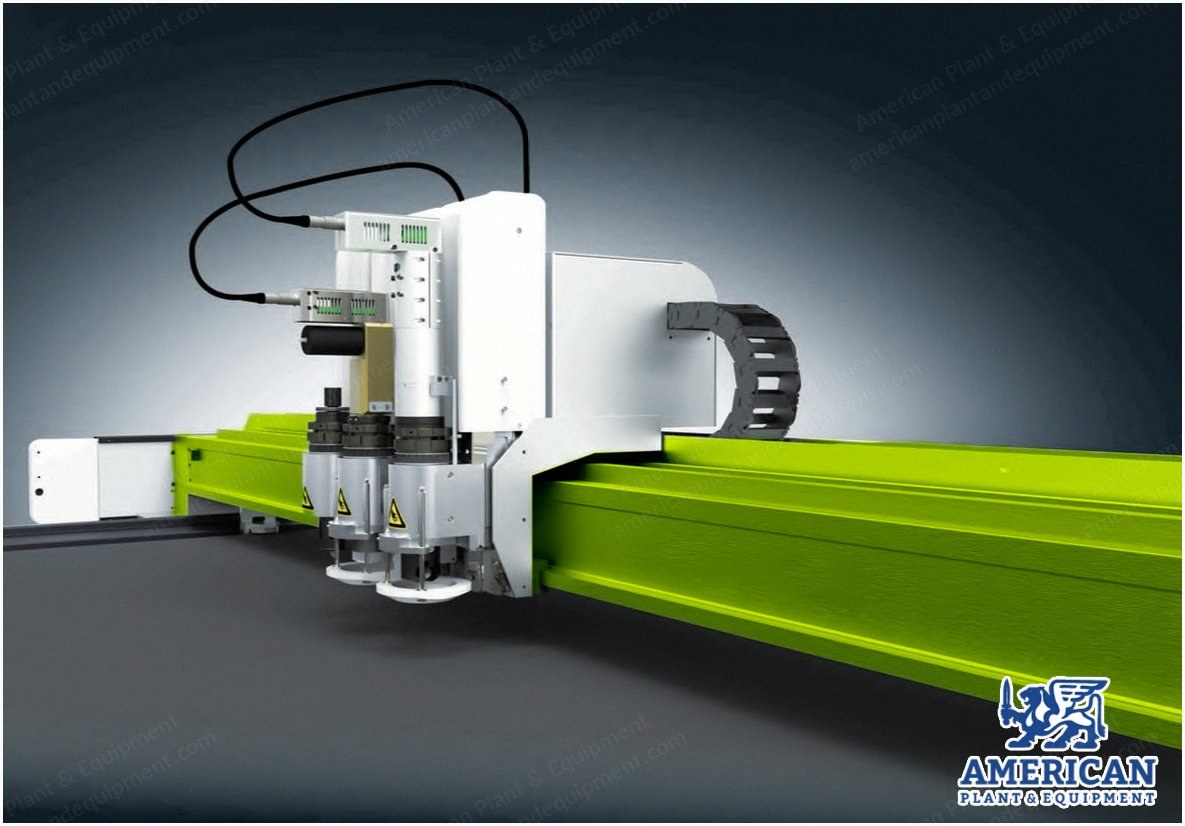

NovaStar, DN157, Large Format Cutting System, Dual Beams, Aviation Aluminum Honeycomb Panel (New)

NovaStar, DN157, Large Format Cutting System, Dual Beams, Aviation Aluminum Honeycomb Panel

Description

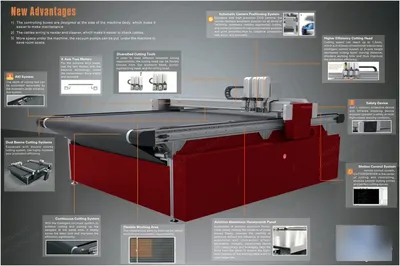

  1. New Advantages
    1. Controlling boxes are designed at the side of the machine body, making maintenance easier.
    2. Cables wiring is neater and cleaner, making it easier to check cables.
    3. More space under the machine; vacuum pumps can be put under the machine to save room space.
  2. Key Features
    1. Diversified cutting tools: Cutting head can be flexibly chosen from the standard head, punching/notching head, and the milling head to meet different industrial cutting requirements.
    2. X axis two motors: For the extreme wide beam, two motors with balance technology make the transmission more stable and accurate.
    3. Aki system: The depth of cutting tool can be controlled accurately by the automatic knife initialization system.
    4. Dual beams cutting systems: Equipped with double beams cutting system to highly increase production efficiency.
    5. Continuous cutting system: With the intelligent conveyor system, achieves cutting and picking up samples at the same time, saving labor cost and improving efficiency significantly.
    6. Flexible working area: The modularized working area can be added according to customers’ requirements.
    7. Aviation aluminum honeycomb panel: Application ensures stability of structure without influence of thermal expansion and contraction; mutually constrained dense cells bear force to ensure high-level flatness of the working table even of quite large size.
    8. Software: Processing of larger sizes of materials can be realized by page cutting function.
    9. Motion control system: CutterServer is the center of cutting and controlling, enables smooth cutting circles and perfect cutting curves.
    10. Safety device: Anti-collision protective device and infrared blocking device ensure operator’s safety at most high-speed working conditions.
    11. Higher efficiency cutting head: Cutting speed can reach up to 1.5 m/s, which is 4–6 times that of the traditional manual way; intelligent control system of Z-axis height decreases cutting tools’ moving distance, shortens working time, and improves production efficiency.
    12. Automatic camera positioning system: Equipped with a high-precision CCD camera, realizes automatic positioning on all kinds of materials, automatic camera registration cutting, and solves problems of inaccurate manual positioning and print distortion.
  3. Size Options
    1. Width/length options: 2500 mm, 3500 mm, 5500 mm, or customized size.
    2. Width 1600 mm: Cutting area 2500 mm x 1600 mm, floor area 3300 mm x 2300 mm; cutting area 3500 mm x 1600 mm, floor area 4300 mm x 2300 mm; cutting area 5500 mm x 1600 mm, floor area 6300 mm x 2300 mm.
    3. Width 2100 mm: Cutting area 2500 mm x 2100 mm, floor area 3300 mm x 2900 mm; cutting area 3500 mm x 2100 mm, floor area 4300 mm x 2900 mm; cutting area 5500 mm x 2100 mm, floor area 6300 mm x 2900 mm.
    4. Width 3200 mm: Cutting area 2500 mm x 3200 mm, floor area 3300 mm x 4000 mm; cutting area 3500 mm x 3200 mm, floor area 4300 mm x 4000 mm; cutting area 5500 mm x 3200 mm, floor area 6300 mm x 4000 mm.
    5. Other sizes: (L x W) 1500 mm x 1000 mm, cutting area 1500 mm x 1000 mm, floor area 2340 mm x 1902 mm; (L x W) 1500 mm x 1600 mm, cutting area 1500 mm x 1600 mm, floor area 2340 mm x 2452 mm.
    6. Based on standard size, machine can be customized according to customer’s special requirements.
  4. Specifications
    1. Vacuum pump: 1–2 units, 7.5 kW; 2–3 units, 7.5 kW; 3–4 units, 7.5 kW.
    2. Beam: Single beam or dual beams (optional).
    3. Max speed: 1500 mm/s.
    4. Cutting accuracy: 0.1 mm.
    5. Thickness: 50 mm.
    6. Data format: DXF, HPGL, PLT, PDF, ISO, AI, PS, EPS, TSK, BRG, XML.
    7. Interface: Serial port.
    8. Media: Vacuum system.
    9. Power: Single phase 220 V/50 Hz or three phase 220 V/380 V/50 Hz to 60 Hz.
    10. Operating environment: Temperature 0 °C to 40 °C, humidity 20% to 80% RH.
  5. Tools Overview
    1. Eot (electronic oscillating knife): For cutting soft and medium-density materials, available with 1 mm stroke.
    2. Uct (universal cutting tool): Used for through-cutting materials with thickness up to 5 mm at high speed and low cost.
    3. Kct (kiss cut tool): For cutting vinyl, foil, films, thin paper, cardboard, and other thin materials.
    4. Rz (router): Operates at speeds up to 60,000 rpm, delivers solid performance on a wide range of rigid and flexible materials; highly precise engraving capabilities include kiss cutting; efficient dust extraction helps maintain a clean, healthy work environment.
    5. Prt (powerful driven rotary tool): For cutting textiles.
    6. V-cut: Ideal for producing complex structural designs from foam core or sandwich board materials; can be set for 5 different cutting angles — 0°, 15°, 30°, 45° — to meet various cutting requests.
    7. Ctt: Used for creasing corrugated materials; a selection of creasing tools available.
