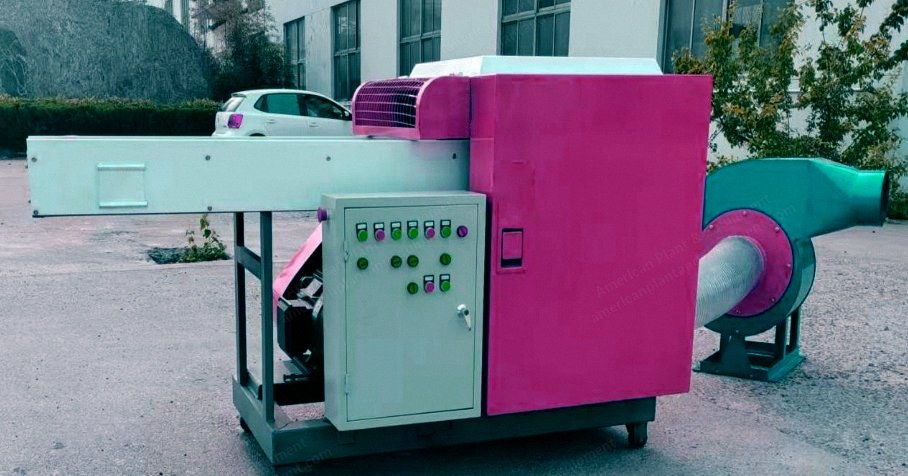

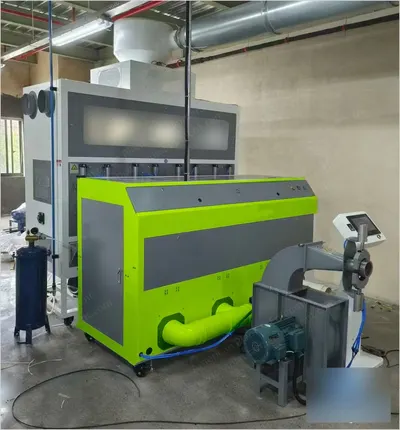

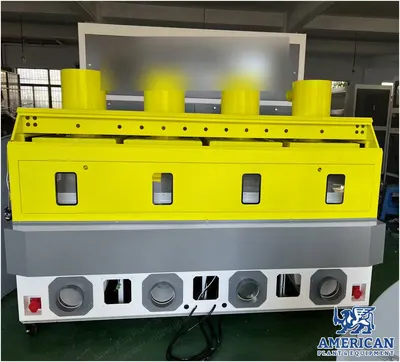

Description Overview Single nozzle with 4 weighing scales (product is weighed twice in order to mix it) Production for this line is 250 kg per hour (500 lbs per hour) This machine can mix foam particles and goose feathers Foam Shredding Machine With Horizontal Feed Voltage: 220 volts, 60 Hz, 3-phase Dimension: 3200 x 1000 x 1200 mm Weight: 760 kg Power: 7 kW Capacity: 100 to 300 kg/h Output fan power: 3 kW Screen specifications: 15 to 45 mm (customizable) Conveyor belt size: 1400 x 470 mm Cutting thickness: 0 to 150 mm Moving knife: solid carbide knife 420 mm Fixed blade: solid carbide blade 420 mm Distribution box: dual control buttons, power indicator light, thermal protection function Linked Feeding Fan Dimension: 600 x 600 x 800 mm Weight: 70 kg Power: 1.5 kW Used for feeding feathers, can be connected to an automatic down unpacking machine or a small feeding box (optional) Connecting Ductwork With connecting ductwork from shredder exit fan to top of chute feed on the filling machine Automatic Pillow Filling Machine Voltage: 220 volts, 60 Hz, 3-phase Storage box size/1 set: 2400 x 1600 x 2950 mm Storage box capacity: 80 to 100 kg Weighing machine size/1 set: 2200 x 950 x 1400 mm Filling fan/1 set: 800 x 600 x 1100 mm Filling port: one nozzle (4 weighing scales) Work table: 1600 x 2000 x 750 mm (customizable) Filling range: 200 to 2000 g Weight: 1150 kg Power: 10.5 kW Pressure: 0.6 to 0.8 MPa (air compressor to be supplied by customer, ≥15 kW) Included Items Including a set of 2 spare filling nozzles and spare parts Wooden box packaging SpecificationsWeight: 830
