Overall dimensions: 5560×1830×1210 mm (OVA-45), 7720×1830×1210 mm (OVA-70), 9720×1830×1210 mm (OVA-90), 12720×1830×1210 mm (OVA-120).
Cutting speed: ≤2000 mm/s (depending on materials).
Cutting thickness: ≤50 mm.
Cutting materials: fabrics for suits, workwear, uniforms, etc.

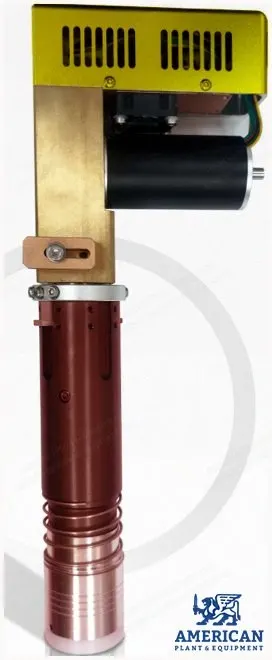

Standard configuration: pen, cursor, active round blade / high-speed vibrating blade (choose one).

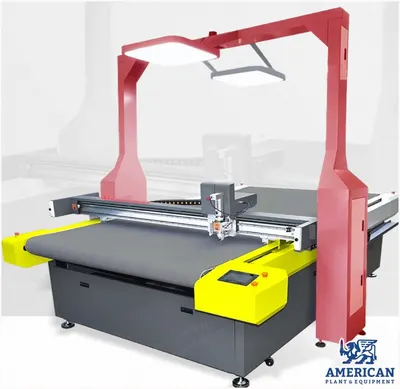

Optional tools: round punching/positioning tools, UV punching tools, laser alignment devices, systems for matching of striped and checked fabrics, projection systems, etc.
Fixation method: vacuum adsorption.
Repetition accuracy: ≤0.01 mm.
Software resolution: 0.025.
Transmission port: standard network port.
Buffer capacity: 2G, one-time quick transmission with page-turning cutting function.
Compatible formats: PLT, DXF, AI, PDF, NC, etc.
Operation interface: touch screen.
Drive system: high-end servo motors, linear guides, lead screws, synchronous belt/rack and pinion transmissions (model 45 uses a synchronous transmission belt).
Working voltage / power: AC 380V ±10% 50Hz.
Fuse specifications: 6A / 30A.
Working environment: temperature 0 to 35°C, humidity 35 to 80%.
Site requirements: bearing capacity 150 to 200 kg/m² with reserved space for turnover.
