NovaStar, Automatic Beam Stacker, Microprocessor-Controlled (New)

NovaStar, Automatic Beam Stacker, Microprocessor-Controlled

Description

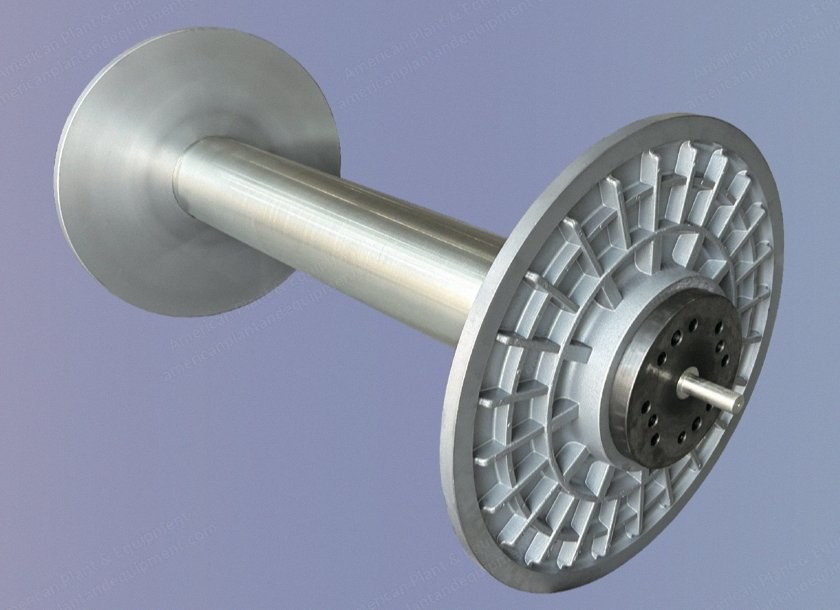

  1. Weaving Beam
    1. Item 001
    3. Applicable for Toyota, Tsudakoma, Picanol, Sulzer, Dornier, and other air jets, water jets, rapier, as well as projectile high-speed looms in single section and double section construction with or without differential motion up to 1250mm flange diameter and 540cm working width.
    4. Our company has the capability to customize weaver's beam for any leading weaving loom brands.
    5. Beam barrel: made by 20# seamless steel pipe; galvanized passivation.
    6. Flange: made by ZL105 high strength aluminum aloy; material & mechanical property are higher than ZL104 standard for imported components; surface anodic oxidation treatment.
    7. Precision after assembly.
    8. Barrel jump <0.8mm per 1000mm.
    9. Flange vertical jitter <0.5mm.
  2. Warping Beam
    1. Item 002
    3. Suitable for spun and filament yarn. Benninger, Karl Mayer, Hakoba, West Point, Suker, and other high-speed sectional and conventional warping machines.
    4. Available size: 800mm flange dia. to 1400mm dia. working width: 1600mm to 2800mm.
    5. Beam barrel: made by 20# seamless steel pipe; tensile strength: 470-490MPa; elongation: 3.6%.
    6. Flange: made by ZL105 high strength aluminum aloy; material and mechanical properties are higher than ZL104 standard for imported components; surface anodic oxidation treatment.
    7. Break disc: made by QT500-7 nodular cast iron.
    8. Precision after assembly: barrel jump <0.25mm per 1000mm; flange vertical jitter <0.35mm balance correction <30g.
  3. Automatic Beam Stacker
    1. Item 003
    2. Our automatic beam stacker is the best solution for storing ready warping beams/sizing beams/ weaving beams/fabric rolls, which is widely applicable in the weaving preparation workshop, weaving unit, and finishing unit for space utilization and to avoid damage to ready yarn/fabric rolls.
    3. Our beam stackers are available in different models for handling each particular situation, as well as incorporating a microprocessor-controlled information system for the storage and retrieval of specific beams.
    4. Raw material: sourcing from international standard steel giants.
    5. Precision: components proceeded by high-precision CNC, such as running wheels, chain wheels etc.
    6. Machining: CNC cutting and welding qualified with crack testing report.
    7. Artistic appearance: patented shot blasting technology improve the fatigue strength, increase the coverage, optimize surface roughness.
    8. Double rustproof: epoxy primer+surface metallic painting.
    9. Zero accident: European safety standard + newest chain-synchronization auto detecting technology + all electric parts from French "Schneider" and Germany "SIEMENS".
    10. Factory qualification: SGS approved, ISO 9001:2018 standard.
    11. Изображение выглядит как текст, снимок экрана, программное обеспечение, число Содержимое, созданное искусственным интеллектом, может быть неверным.
  4. Hydraulic Beam Lift Trolley
    1. Item 004
    2. Изображение выглядит как небо, колесо, апельсин, на открытом воздухе Содержимое, созданное искусственным интеллектом, может быть неверным.
    3. Capacity: 1500/2000/3000 k G
    4. Beam flange diameter: 800 to 1250mm
    5. Working width: customizes as per beam working width
    6. Hydraulic unit: one
    7. Hydraulic cylinder: two
    8. Lifting height: 700mm
  5. Electric Beam Lift Trolley
    1. Item 005
    2. Capacity: 2000 / 3000 / max. 6000 kg
    3. Beam flange diameter: 800 to 1250mm
    4. Working width: customize as per beam working width
    5. Lifting/driving motors: three AC motors
    6. Lifting height: 700mm
    7. PLC: SIEMENS
    8. Servo controller: CURTIS
  6. Electric Beam Lift Trolley
    1. Item 006
    2. Изображение выглядит как небо, игрушка, апельсин Содержимое, созданное искусственным интеллектом, может быть неверным.
    3. *Suitable for different looms with different working widths
    4. *Beam position adjustment function (when trolley is stationary): 100 mm to left/right
    5. Capacity: 2000 kg
    6. Beam flange diameter: 800 to 1250mm
    7. Beam working width: adapt any loom (1400 to 3900mm)
    8. Lifting/driving motors: three AC motors
    9. Lifting height: 700mm
    10. PLC: SIEMENS
    11. Servo controller: CURTIS
  7. Electric Beam/Fabric Roll Lift & Transport Trolley
    1. Item 007
    2. *Suitable for different looms with different working widths.
    3. *Not only suitable for lift & transport beams, but also suitable for transport fabric rolls.
    4. *Beam position adjustment function (when trolley is stationary): 100mm to left/right.
    5. Capacity: 2000 kg
    6. Beam flange diameter: 800 to 1250mm
    7. Beam working width: adapt any loom (width: 1400 to 3900mm)
    8. Lifting/driving motors: three AC motors
    9. Lifting height: 700mm
    10. PLC: Siemens
    11. Servo Controller: Curtis
  8. Electric Beam Lift Trolley with Heald Frame
    1. Item 008
    2. Capacity: 2000 / 3000 / max. 6000 kg for beam; 500 kg for heald frame
    3. Beam flange diameter: 800 to 1250mm
    4. Working width: customize as per beam working width
    5. Lifting/driving motors: three AC motors
    6. Lifting height: 700mm for beam; 1950mm for heald frame
    7. PLC: Siemens & Servo Controller: Curtis
  9. Electric Beam Lift Trolley with Heald Frame
    1. Item 009
    2. Capacity: 1500 / 2000 / 3000 kg
    3. Beam flange diameter: 800 to 1250mm
    4. Working width: customize as per beam working width
    5. Hydraulic unit: one
    6. Hydraulic cylinder: two
    7. Lifting height: 700mm
  10. Electric Beam Lift Trolley with Heald Frame
    1. Item 010
    2. Изображение выглядит как небо, игрушка, Игрушечный конструктор, Масштабная модель Содержимое, созданное искусственным интеллектом, может быть неверным.
    3. *Suitable for different looms with different working widths.
    4. *Beam position adjustment function (when trolley is stationary): 100mm to left/right.
    5. Capacity: 2000 kg for beam; 500 kg for heald frame
    6. Beam flange diameter: 800 to 1250mm
    7. Beam working width: adapt any loom (width: 1400 to 3900mm)
    8. Lifting/driving motors: three AC motors
    9. Lifting height: 700mm for beam; 1950mm for heald frame
    10. PLC: Siemens & Servo Controller: Curtis
  11. Electric Beam High Lift Trolley
    1. Item 011
    2. Capacity: 2000 / 3000 / max. 6000 kg
    3. Beam flange diameter: 800 to 1250mm
    4. Working width: customize as per beam working width
    5. Lifting/driving motors: three AC motors
    6. Lifting height: 2300mm
    7. PLC: Siemens & Servo Controller: Curtis
  12. Electric Beam High Lift Trolley
    1. Item 012
    2. *Suitable for different looms with different working widths.
    3. *Suitable for lift bottom beam & upper beam one by one.
    4. *Four-way beam position adjustment function: 100mm to front / back / left / right.
    5. Capacity: 2500 / 3000 / max. 5000 kg
    6. Beam flange diameter: 800 to 1250mm
    7. Beam working width: adapt any loom (width: 1900 to 3900mm)
    8. Lifting/driving motors: three AC motors
    9. Lifting height: 2300mm
    10. PLC: Siemens & Servo Controller: Curtis
  13. Beam High Lift Trolley
    1. Item 013
    3. *Suitable for different looms with different working widths.
    4. *Suitable for lift bottom beam & upper beam one by one.
    5. *Four-way beam position adjustment function: 100mm to front / back / left / right.
    6. Capacity: 2500 / 3000 kg
    7. Beam flange diameter: 800 to 1250mm
    8. Beam working width: adapt any loom (width: 1900 to 3900mm)
    9. Lifting/driving motors: three AC motors
    10. Lifting height: 2300mm
    11. PLC: Siemens & Servo Controller: Curtis
  14. Double Beam Lift Trolley
    1. Item 014
    2. Capacity: 2500 / 3000 / max. 6000 kg for beam; 500 kg for heald frame
    3. Beam flange diameter: 800 to 1250mm
    4. Beam working width: adapt any loom (width: 1400 to 3900mm)
    5. Lifting/driving motors: three AC motors
    6. Lifting height: 700mm for beam; 1950mm for heald frame
    7. PLC: Siemens
    8. Servo Controller: Curtis
  15. Hydraulic Beam Transport Trolley
    1. Item 015
    2. Capacity: 1500 / 2000 / 3000 kg
    3. Beam flange diameter: 800 to 1250mm
    4. Working width: customize as per beam working width
    5. Hydraulic unit: one
    6. Lifting height: 110mm
  16. Electric Beam Transport Trolley
    1. Item 016
    3. Capacity: 1500 / 2000 / 3000 kg
    4. Beam flange diameter: 800 to 1250mm
    5. Beam working width: adapt any loom (1400 to 3900mm)
    6. Lifting/driving motors: two AC motors
    7. Lifting height: 110mm
    8. Servo Controller: Curtis
  17. Empty Beam Transport Trolley
    1. Item 017
    2. Изображение выглядит как колесо, ручная тележка Содержимое, созданное искусственным интеллектом, может быть неверным.
    3. Capacity: 500 kg
    4. Beam flange diameter: 800 to 1250mm
    5. Beam tube diameter: 150 to 400mm
    6. Hydraulic unit: one
    7. Lifting height: 750mm
  18. Hydraulic Fabric Roll Transport Trolley
    1. Item 018
    2. Capacity: 300 kg / 500 kg
    3. Max fabric roll diameter: 500mm
    4. Centre lifting height: 585mm
    5. Hydraulic unit: one
  19. Hydraulic Fabric Roll Transport Trolley
    1. Item 019
    2. Capacity: 300 kg / 500 kg
    3. Max fabric roll diameter: 500 / 1000mm
    4. Centre lifting height: 1100mm
    5. Hydraulic unit: one
  20. Hydraulic Fabric Roll Transport Trolley
    1. Item 020
    2. Capacity: 1000 kg
    3. Max fabric roll diameter: 1000mm
    4. Centre lifting height: 950mm
    5. Hydraulic unit: one
  21. Electric Fabric Roll Transport Trolley
    1. Item 021
    2. Capacity: 2000 / 3000 / 3500 kg
    3. Fabric roll diameter: 500 to 1800mm
    4. Fabric roll working width: up to 4000mm
    5. Lifting/driving motors: two AC motors
    6. Lifting height: 110mm
    7. Servo controller: Curtis
  22. A-Frame Trolley
    1. Item 022
    2. Изображение выглядит как автокомпонент, ручная тележка, рамка Содержимое, созданное искусственным интеллектом, может быть неверным.
    3. Capacity: 1000 to 5000 kg
    4. Max. fabric roll diameter: 2000mm
    5. Fabric roll width range: 1400 to 4000mm
  23. Hydraulic A-Frame Tractor
    1. Item 023
    2. Capacity: 3000 / 5000 kg
    3. Lifting height: 300mm
    4. Hydraulic unit: one
    5. Hydraulic cylinder: one
  24. Electric A-Frame Trolley Tow Tractor
    1. Item 024
    2. *Without operator’s station platform
    3. Capacity: 3000 kg
    4. Lifting height: 350mm
    5. Lifting/driving motors: two AC motors
    6. Servo controller: Curtis
  25. Electric A-Frame Trolley Tow Tractor
    1. Item 025
    2. *With operator’s station platform
    3. Capacity: 3000 / 5000 kg
    4. Lifting height: 350mm
    5. Lifting/driving motors: two AC motors
    6. Servo controller: Curtis
  26. Loom Batch Winder
    1. Item 026
    2. Max. fabric working width: 5600mm
    3. Max. batch diameter: 1600mm
    4. Speed: synchronized with loom
    5. Edge-alignment error: ≤ 5mm
    6. Electric specs: 3-phase 480V 60Hz (customization available)
  27. Loom Batch Winder with Pressing Roller
    1. Item 027
    2. Fabric type: industrial fabrics, advertising fabrics, fiberglass fabrics, other heavy fabrics
    3. Max. fabric working width: 5600mm
    4. Max. batch diameter: 1600mm
    5. Speed: automatic synchronized with loom
    6. Edge-alignment error: ≤ 5mm
    7. Electric specs: 3-phase 480V 60Hz (customization available)
  28. Carbon Fiber Fabric Batch Winder
    1. Item 028
    2. Fabric type: carbon fiber fabrics, fiberglass fabrics, composite fabrics
    3. Max. fabric working width: 5600mm
    4. Batch diameter: 800mm, 1000mm, 1200mm
    5. Winding tension: 200 N to 1000 N
    6. Max. batching speed: 1.33 m/min
    7. Edge-alignment error: ≤ 5mm
    8. Electric specs: 3-phase 480V 60Hz (customization available)
  29. Fiberglass Fabric Batch Winder
    1. Item 029
    2. Fabric type: fiberglass fabrics, advanced electronic fabrics
    3. Max. fabric working width: 5600mm
    4. Max. batch diameter: 1000mm
    5. Speed: automatic synchronized with loom
    6. Electric specs: 3-phase 480V 60Hz (customization available)
