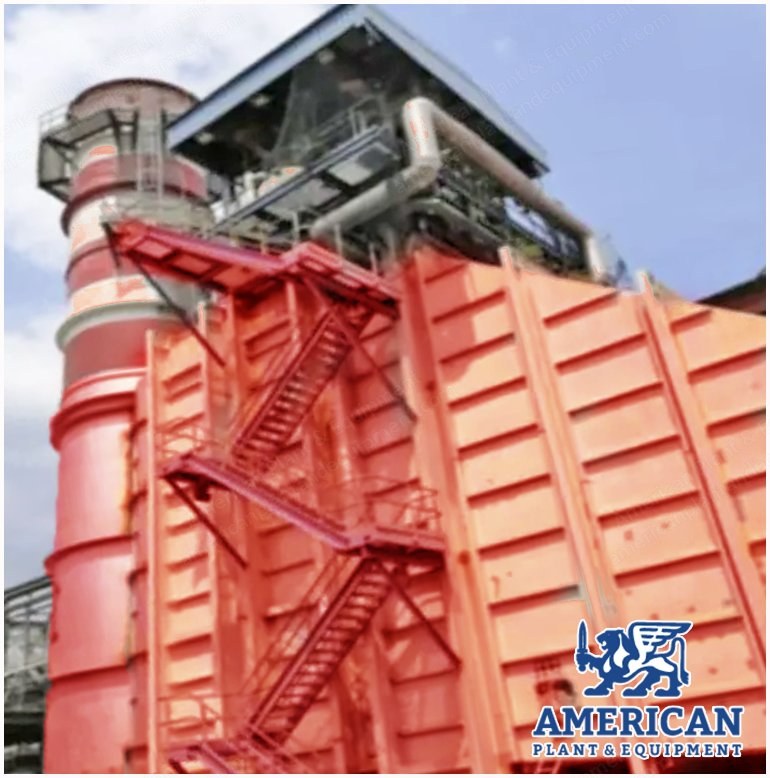

GE, Frame 6B, 1997, 39 MW, Dual-Fuel, 11 kV, 50 Hz

GE, Frame 6B, 1997, 39 MW, Dual-Fuel, 11 kV, 50 Hz

Description

  1. Overview
    1. Heavy-duty ge frame 6b (ms6001b) gas turbine plant rated at 39 mw iso, dual-fuel (gas/oil), with full auxiliary systems and upgrades
    2. 68,448 operating hours, available for immediate delivery with complete documentation
    3. Ge frame 6b gas turbine generator plant – 39 mw, dual-fuel, 11 kv, complete package
    4. Manufactured in 1997 in scotland (k.e.l)
    5. Rugged, high-performance industrial gas turbine generator plant engineered for reliable base-load or peaking power
    6. Proven ge technology for dual-fuel operation (natural gas and distillate oil), ensuring operational flexibility and high availability
  2. Specifications
    1. Manufacturer: general electric (ge)
    2. Model: frame 6b (ms6001b)
    3. Power output: 39 mw iso rated
    4. Fuel type: dual-fuel – natural gas and distillate oil
    5. Voltage output: 11 kv
    6. Frequency: 50 hz
    7. Turbine speed: 5114 rpm
    8. Generator speed: 3000 rpm
    9. Generator model: t190-240, 42.25 mva, 3-phase
    10. Exciter: tkj 70/10
    11. Year of manufacture: 1997
    12. Manufactured in: scotland (k.e.l)
  3. Configuration
    1. 3-stage turbine and 17-stage axial compressor
    2. Cannular combustion system with 10 combustion cans
    3. 42.25 mva t190-240 generator
    4. Load gearbox (trl65cv) reduces turbine speed to 3000 rpm for generator synchronization
  4. Auxiliary Systems
    1. Complete set of auxiliary systems including lube oil, hydraulic, atomizing air, and fuel handling systems
  5. Fuel System
    1. Gas and fuel oil lines
    2. Gas strainer, control valves, stop/speed ratio valve
    3. Dual-fuel nozzles
  6. Upgrades
    1. Upgrades between 2009 and 2013 enhanced fuel delivery, safety, and emissions control, aligning the turbine with modern standards
  7. Operating History
    1. Total operating hours (eoh): 68,448 (as of 2016)
    2. Total starts: 2,166
    3. Maintenance records: ci, mi, hgpi completed regularly (2000–2014)
  8. Condition
    1. Complete maintenance records, including ci, mi, and hgpi inspections
    2. In storage and available for immediate delivery
    3. Complete inspection, packing list, and maintenance logs available upon request
