Raw material: raw hemp blades contain 30% to 40% shive/hurd and 5 to 10% dust/fines before opening; typical length: 500 to 1500 mm, common average: 800 to 1200 mm
Application: nonwoven web for erosion control mats
Working width: 2500 mm
Capacity: around 180 to 270 kg/h (depends on different gsm)
Density: 400 to 1000 gsm, 50 mm to 150 mm

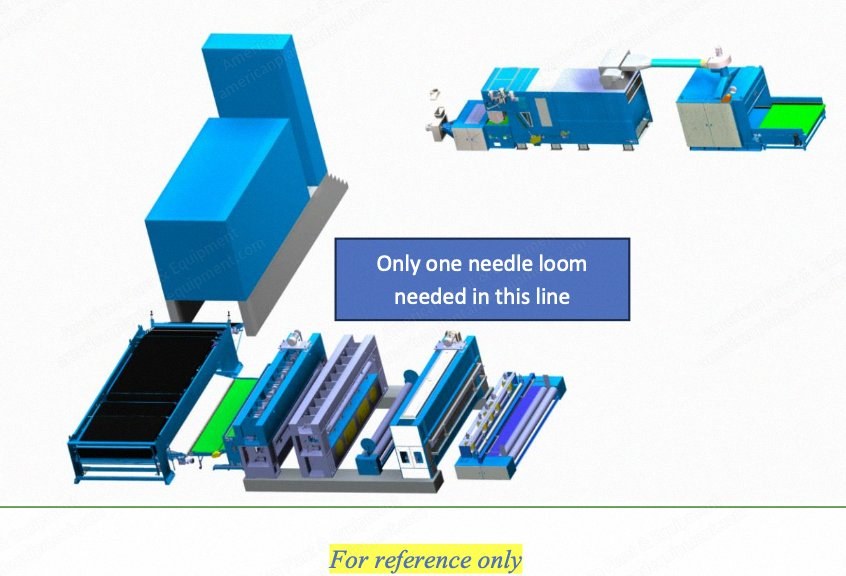

Craftwork: single cylinder carding machine + middle speed needle punching unit
Compressed air: air pressure 0.6 to 0.8 mpa, air volume ≤ 1.5 m³/h
Power requirements: tbd
Environmental requirements: temperature -15 °c to 35 °c, average relative humidity 65%, relative humidity ≤ 90%
Parameters are for reference only; final data is decided by final design
Equipment color: if no color number is specified, color matching needs party b’s tacit approval
Equipment main body: party b tacitly approve
Equipment door panel: party b tacitly approve
Safety cover: party b tacitly approve
Process flow and description: equipment capacity calculation (data calculated according to different processes may have a large deviation)
Delivery scope: the seller shall undertake to supply the goods in the quantity and quality specified in this technical specification sheet
Progress implementation schedule: the progress implementation starts from the effective date of the contract, that is, the contract is signed and the advance payment is received
Packaging: the goods shall be well packed following our standard packaging marked in accordance with international requirements
Quality of goods warranty: the seller warrants that the equipment supplied is new, has no manufacturing defects, is suitable for the intended use, fully complies with the requirements of the customer’s technical assignment
The warranty on the goods comes into force from the moment of commissioning of the goods and putting them into operation
The warranty is valid for one year from the date of entry into force
Warranty does not apply to high-wear and consumable parts
Excluded from supply scope: the offer does not include electric cables (primary and secondary wirings)
This offer is exclusive of any auxiliary machines such as air compressor, chillers, any heating insulations, cable trays for cabling, laboratory instruments, special packing materials
Single Machine Specifications
Opening and blending machine: the machine is one of the parts of the opening and blending system for the complete nonwoven process. The raw materials are mixed and opened by the opening roller as per the set time; the lattice has a weighing display, and the different raw materials to be manually fed on the lattice, and after being uniformly mixed, sent to the next step through the fan. The opening rollers in the machine are designed well enough to open up the fibers very properly.
Working width: 1800 mm
Weight control: digital weighing machine
Precision: <3%
Feeding lattice: pvc lattice
Oblique lattice: 5 precisely designed opening rollers
The frame is made of q235-a steel plate by cnc laser cutting, cnc bending and modular assembly
The five beating roller is fixed with steel opening bar, which could open the fiber well but reduce the damage to the fiber upmost
The transfer lattice adopts black high-quality pvc curtain, which has good flexibility and wear resistance, and its service life is increased by 80% compared with other pvc curtains
The weighing part and the frame are completely separated in structure to ensure the stability of weighing
The feeding, blending and conveying are all controlled by plc program, which can be adjusted according to demand
Various baled fibers are weighed in proportion and then directly opened without manual shaking, reducing labor
