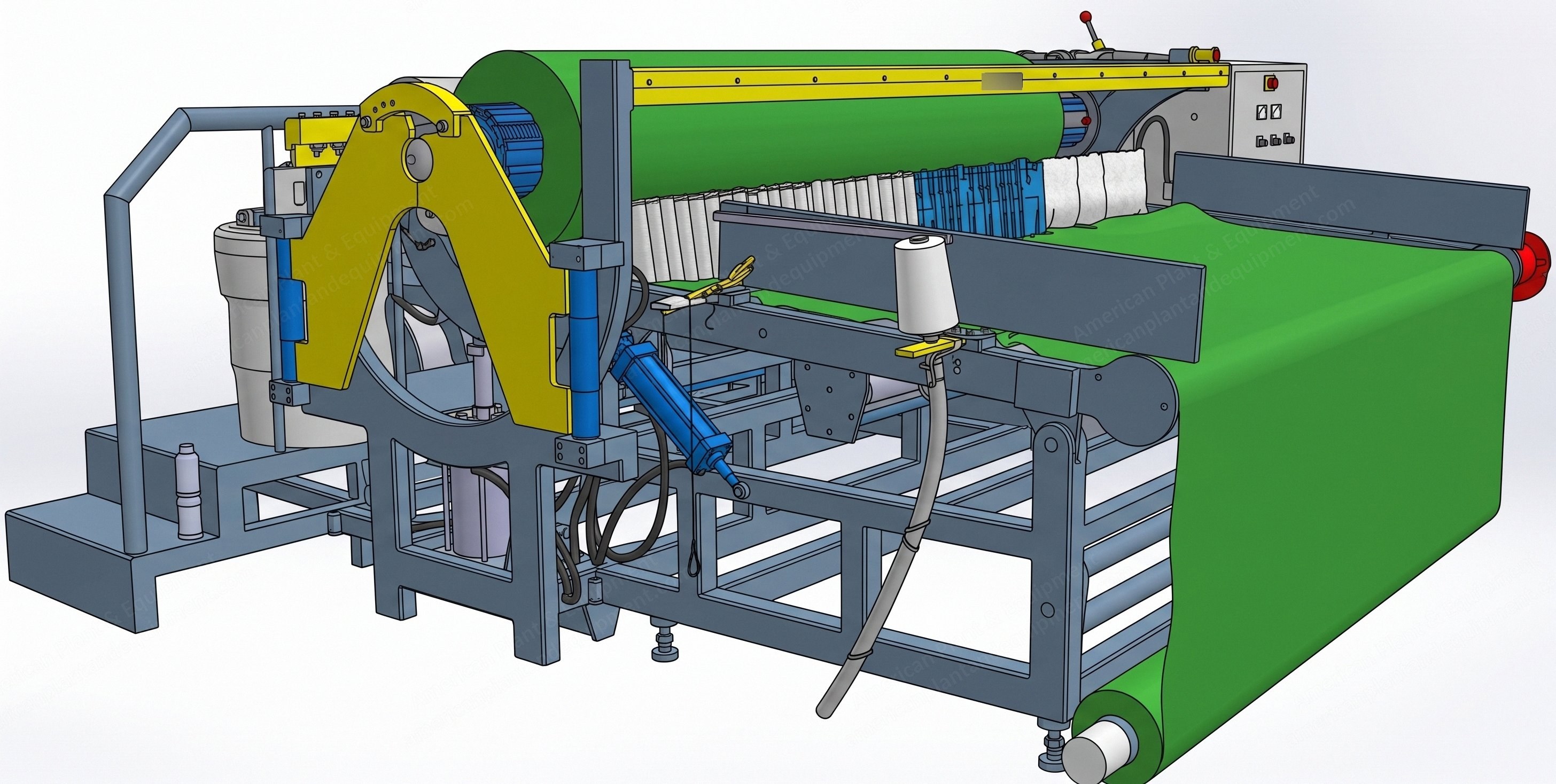

Description Overview Spring type: bonnell/pocket spring Control system: PLC CE certificate, patent Have screen from start to end to protect worker safety Can compressor and roll packing function together Specifications Production speed: 8 to 10 min/roll (6 to 13 units/roll) Productivity: 20 to 30 units/shift Mattress width: 900 to 2300 mm Mattress height: 50 to 180 mm Spring wire diameter: 1.5 to 2.3 mm Spring coil: 4 to 6 coils Power requirements: 380 V / 50 Hz Main drive power: 5 kW Air consumption: approx. 5 m³/h at 0.8 MPa Operative temperature: 0 +/- 45 °C Overall dimension: 6000 x 1700 x 1800 mm Machine weight: 3000 kg
