NovaStar, BS138, Complete Jute Bag Production Line (New)

NovaStar, BS138, Complete Jute Bag Production Line

Description

  1. Process Overview
    1. Warping → sack weaving → calender → sack measure/fold/cut into sheet → sewing → packaged into the warehouse.
  2. Complete Set of Equipment

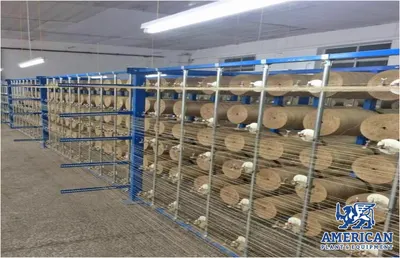

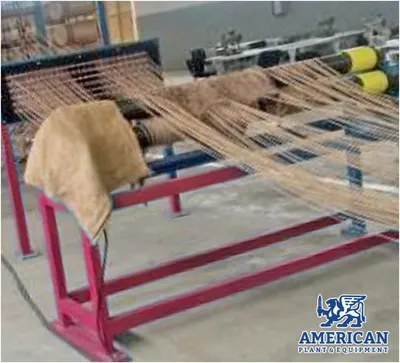

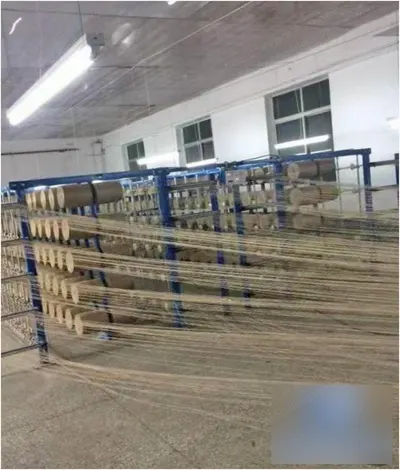

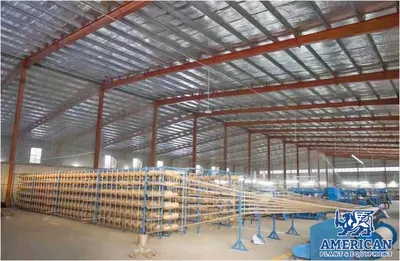

    1. Warping machine: power 7.5 kW, speed 150 to 300 m/min, voltage 380 to 415 V, matches with rapier loom, work width 1900 to 2400 mm.

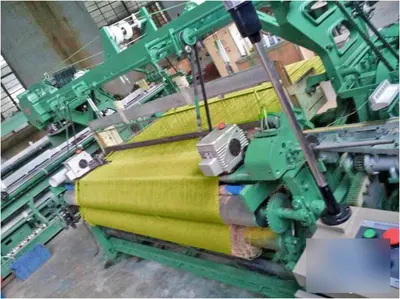

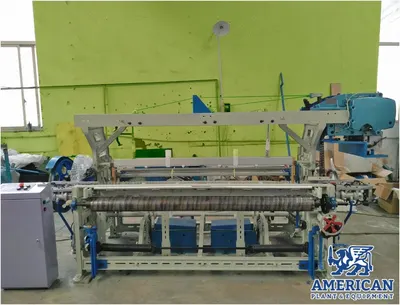

    2. Sack loom (weaving) – 2 sets: power 4 kW, customized weaving, motor rpm 720 to 760, voltage 380 V to 415 V, frequency 50 Hz, machine speed 150 rpm, for 30 kg bag.

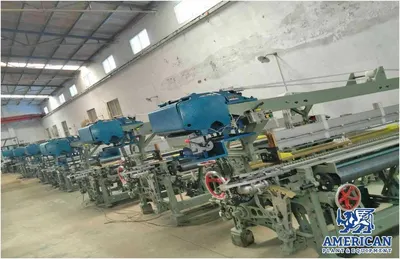

    3. Sack loom (weaving) – 8 sets: power 4 kW, customized weaving, motor rpm 720 to 760, voltage 380 V to 415 V, frequency 50 Hz, machine speed 150 rpm, for 50 kg bag, for 60 kg bag, for 85 kg bag.

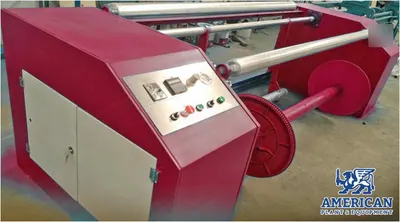

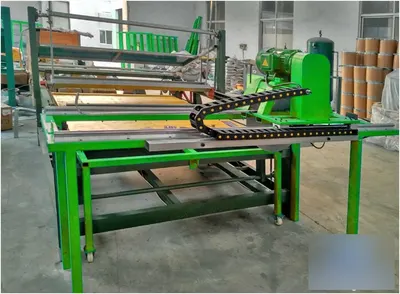

    4. Jute bag cutting machine: power 5.5 kW, max cutting meter speed 200 m/min, cutting length 55 up to 65 inch, cutting thickness 10 mm to 309 mm.
    5. Damping machine (humidifying equipment): power 4 kW, rpm 1400, pump 40WZ(R)-20, rpm 1400, voltage 380 to 415 V.
    6. Air compressor: pressure 11 bar, power 15 kW, 3 phase induction motor.
    7. Fully mechanized frame: auxiliary equipment.
    8. Monofilament – 2 sets: auxiliary equipment.
    9. Steel buckle – 8 sets: auxiliary equipment.
    10. Drop wire: auxiliary equipment.
    11. Small cart – 2 sets: auxiliary equipment.
    12. Waste side machine: auxiliary equipment.

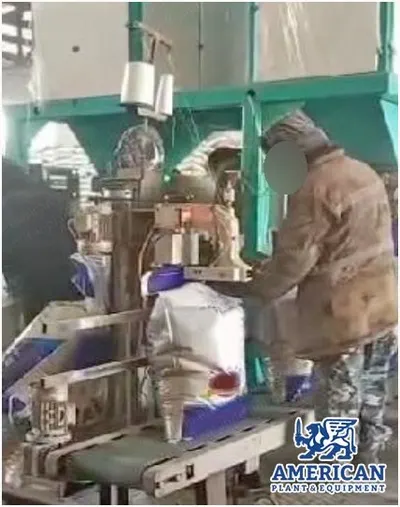

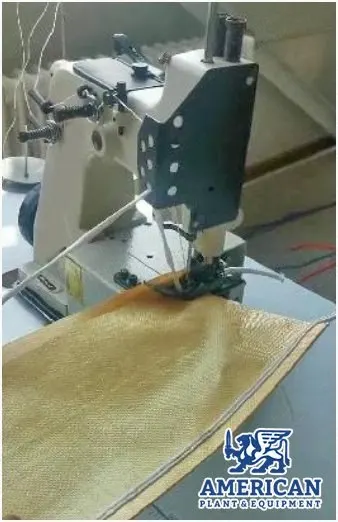

    13. Overeging sewing machine – 10 sets: rpm 1400, max speed 1400 rpm, power 370 W, frequency 50 Hz, current 1.3 A.
    14. Hemming sewing machine – 2 sets: current 1.3 A, rpm 1400, max speed 1900, frequency 50 Hz, power 370 W.
    15. Stitching sewing machine – 2 sets: current 1.3 A, rpm 1400, max speed 1900, frequency 50 Hz, power 370 W.

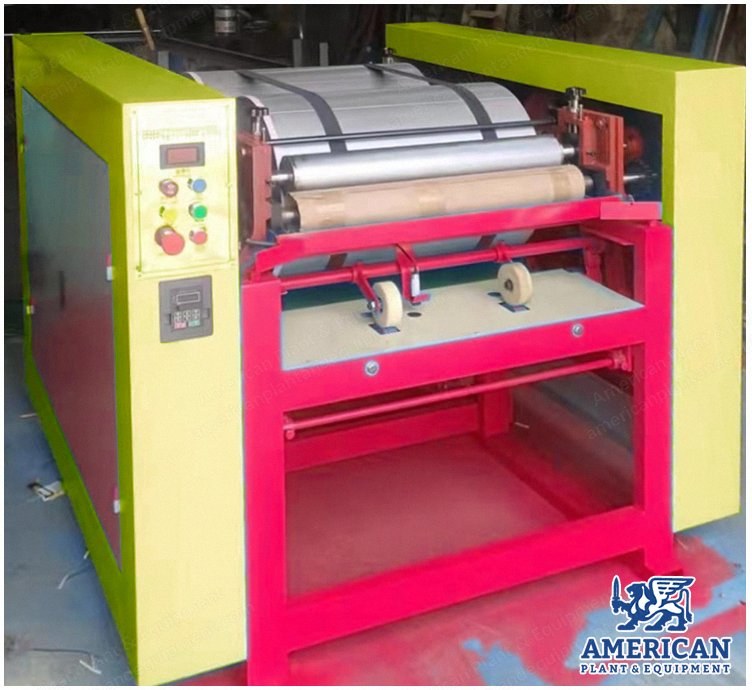

    16. 3 colors jute bag printing machine: semi-automatic, 3 phase/AC 440 V, rpm 1440, frequency 50 Hz.

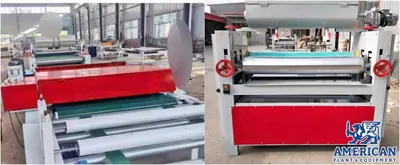

    17. Celandine machine (5 roll): pneumatic, automatic, single roller press 2 t, power 50 kW, 3 phase, voltage 380 to 415 V.
    18. Ink sinking machine (ink sinking is kind of between creel and warping machine): with warping machine.
    19. Cotton moisture meters: no additional specifications provided.
    20. Gram weight scale (3 kg/0.2 g nscing): no additional specifications provided.

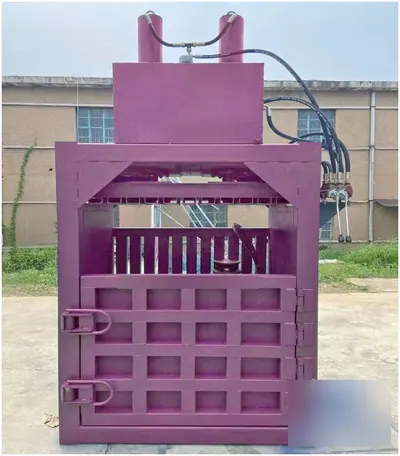

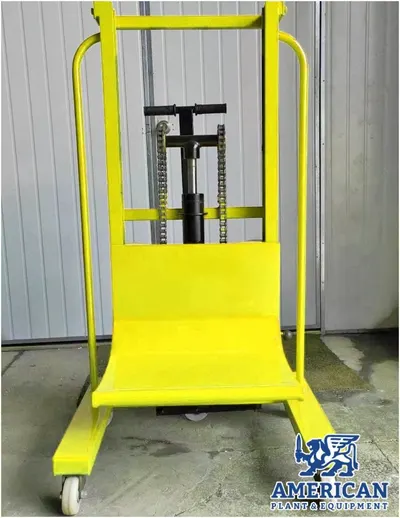

    21. Small cart (hydraulic): hydraulic piston, 30 ton.
    22. Simple steel tub: tank size 1000 mm x 1000 mm x 820 mm.
