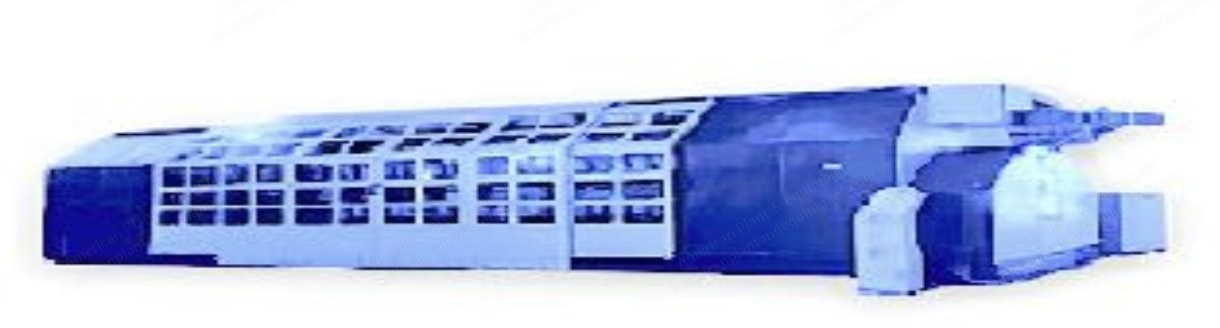

Description Overview 4 strand (4 ply) rope machine Rope range: 8 mm to 16 mm Strand flyer speed: 250 rpm (maximum) Rope flyer speed: 300 rpm (maximum) Twist per minute: twice the flyer speed Rope lay: Z type Twist range: 15 to 45 tpm Twist factor: 1 rpm = 2 twist Twist in strand: adjustable Drive: timing belt drive and V-belt drive Pay of packages (feeding bobbin): 250 mm dia x 300 mm tra Sliding cover: for smooth and quick operation Body cover (optional): laser cutted safety door with auto stop Electronic Division Motor: 25 hp (22.5 kW) with AC drive - standard make IE 2 Balancing: electronically balanced Control panel: HMI-PLC based control system Length counting meter: rope length as per customer requirement Optional Features (Extra Cost) Meter marking: extra attachment for brand and meter marking facility printer Coiling head: extra coiling head for stand by with individual length counter Production Take up system (single head): direct coils or bobbin winding Take up coil capacity: wind 220 meter of 25 mm Additional take up capacity: as per customer's requirement with extra cost Take up capacity: unlimited length (endless rope) Various production capacity depends upon the selected raw-material and tpm Production per hour for 8 mm rope: 31.00 m/hr at 33.78 tpm, 29.09 g/m Production per hour for 10.0 mm rope: 55.48 m/hr at 27.03 tpm, 45.45 g/m Production per hour for 12.0 mm rope: 87.19 m/hr at 22.52 tpm, 65.45 g/m Production per hour for 14.0 mm rope: 124.57 m/hr at 19.31 tpm, 89.09 g/m Production per hour for 16.0 mm rope: 165.34 m/hr at 16.89 tpm, 116.36 g/m Dimensions and Weight Dimension (L x W x H): 24 in x 8.5 in x 8.10 in Weight: 9500 kg (approx.)
