NovaStar, GN157, Nonwoven Bag Making Machine, Max Unwinding Width 1700mm, Max Unwinding Diameter 1000mm (New)

Details:

Functions

1.Unwinding: auto feeding, photocell eye tracking and rectifying deviation, manual magnet powder tension control, edge folding and manual ball screw adjust,edge sealing by ultrasonic welding.

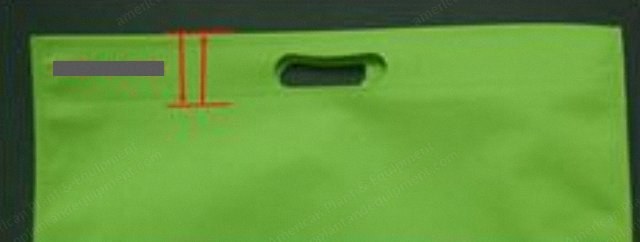

1. Edge folding 20mm (0.8 in) to 80mm (3.1 in)
2. Custom made round embossing mould
3. Horn journey max 70mm (2.8 in)
4. Max diameter of unwinding 1000mm (39.4 in)
5. Max width of unwinding 1700mm (66.9 in)
6. Further specifications
   1. 270 mm (10.6 in) 3 pcs70 mm 2 pcs

2. Folding rack: non woven fabric cross folding device,easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.

3. Gusset making:feeding and computer length fixed by 1st stepping motor,photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic. Bag gusset from 60mm (2.4 in) to 160mm (6.3 in).

4.Box bag making: the function of box bag creasing, triangle sealing by ultrasonic, triangle removing by punching, PET film unwinding and rewinding and D-cut punching.

1. Gusset size of box bag from 80mm (3.1 in) to 160mm (6.3 in).
2. Custom made gusset size up to 300mm (11.8 in).

5.Handle attaching: automatic integration ultrasonic handle sealing device, incorporates PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material.Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75pcs/min.

1. Custom made embossing mould
2. Width of handle 25mm (1.0 in) to 30mm (1.2 in)
3. Width of handle feeding 50mm (2.0 in) to 60mm (2.4 in)
4. Length of handle 380mm (15.0 in) to 600mm (23.6 in)
5. Distance between two attaching spot from 110mm (4.3 in) to 200mm (7.9 in)

6. The width of bags and main reducing motor to drive the motion of ultrasonic welding and cold cutting. Incorporates two Taiwan ultrasonic welding system (horn 300mm) for this model, sealing is beauty and firm. And different specs of ultrasonic (horn 270mm (for this model), even roller sealing) can be used to meet the requirements of different specs of non woven fabric.

1. Double mould, horn journey 300mm (11.8 in)
2. Max side sealing (bag height) is 600mm (23.6 in)
3. Custom made square embossing mould

7. Distribution box: integrate all the electricity elements, incorporates split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.

Feeding Device:

Control Device and Unwinding Device:

Quantity: only one machine
