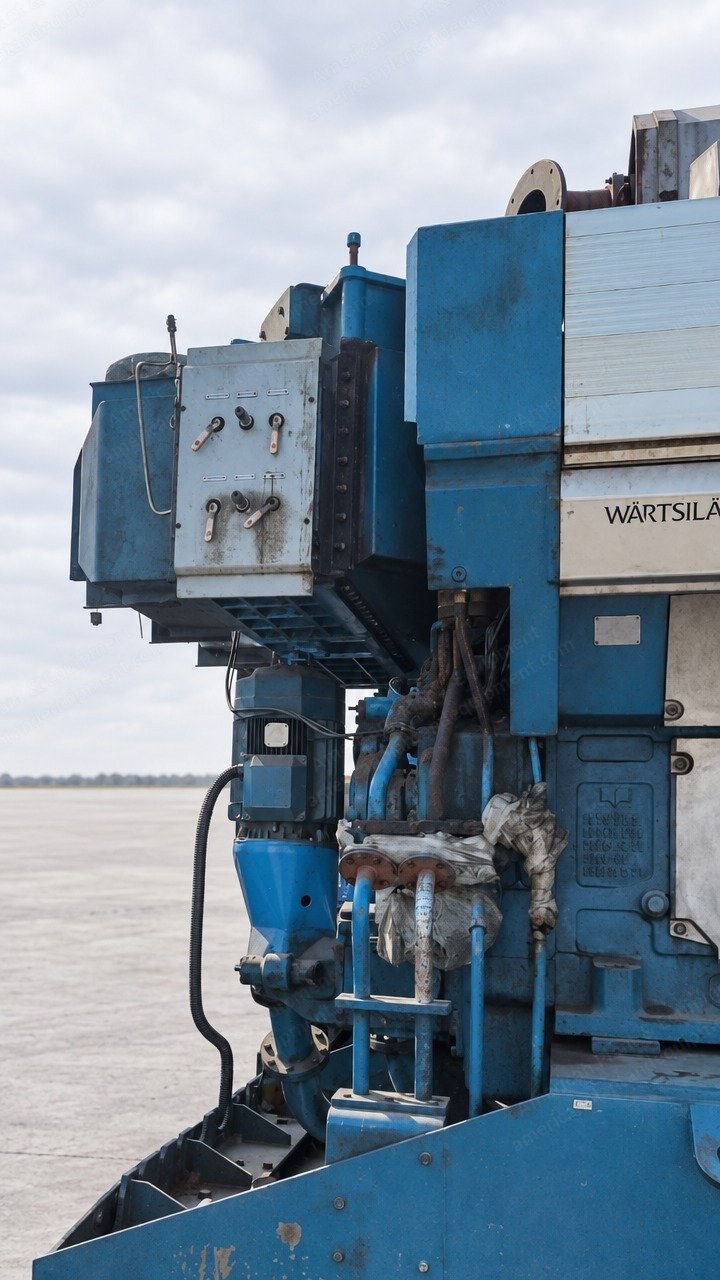

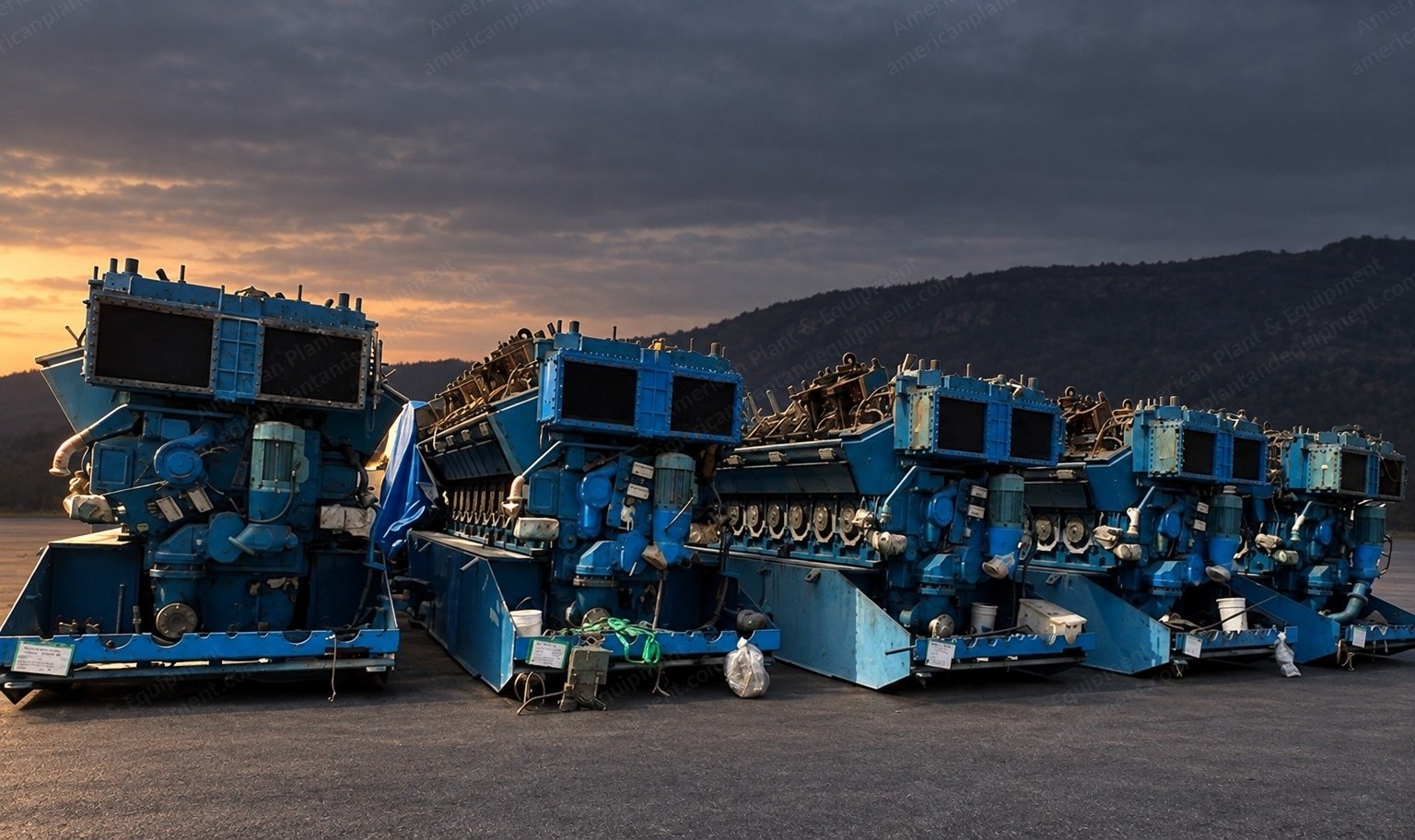

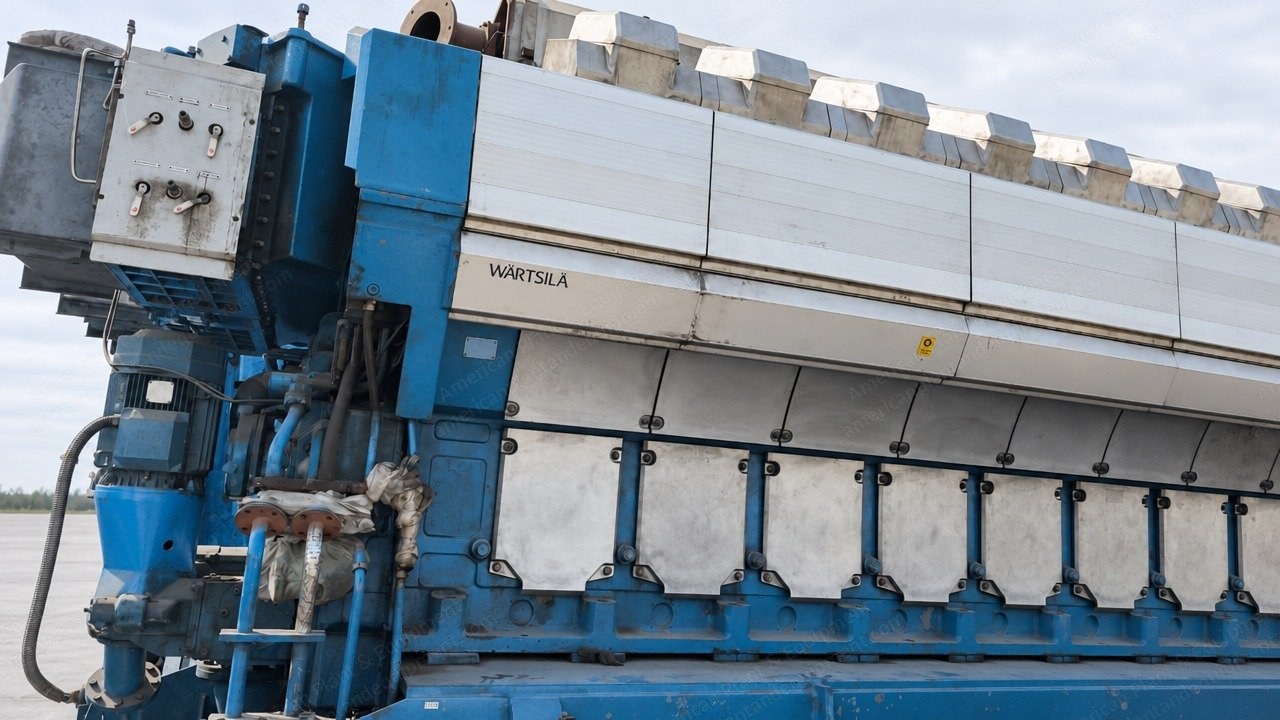

Description Overview Status: available Brand: Wartsila Model: W18V32 Quantity: 5 generating sets Wattage: 7290 kW (9,776.1 hp) per unit Total capacity: 36.45 MW Voltage: 13800 V Year: 2001 Condition: used (see Condition below) Running hours: approximately 22,000 per unit (see Genset Running Hours below) Frequency: 60 Hz Fuel: HFO Generator type: ABB industry synchronous generator (8813 kVA) Condition Used. The engines were removed from a vessel. Some cylinder heads were removed from the engines so that they could be lifted out. The engines need a complete workshop cleaning and service, including refitting the cylinder heads, before use. Genset Running Hours Genset 1: 21,280 hrs Genset 2: 21,121 hrs Genset 3: 21,054 hrs Genset 4: 21,062 hrs Genset 5: 21,044 hrs General Specifications Engine type: 4-stroke Configuration: V-type with 18 cylinders Bore and stroke: 320mm (12.6 in) bore and 400mm stroke Displacement: approximately 32 liters per cylinder Power output: ranges from 7 MW to 35 MW depending on the specific model and configuration Speed: operates at 720 or 750 rpm Fuel and Performance Fuel type: primarily heavy fuel oil (HFO) with options for marine diesel oil (MDO) in some configurations Fuel consumption: varies based on load; for instance, at full load, the fuel consumption can be around 185.6 g/kWh HFO viscosity: typically around 140 cSt before entering the engine, with a maximum temperature before the engine of approximately 50°C (122°F) Component Overview Engine: 5 pcs Motor: 5 pcs Engine bed: 5 pcs Purifier: 5 pcs Filters: 5 pcs Compressor Sperre HL2/77: 2 to 3 pcs Mix control panels & electronics: 23 pcs OMD (oil mist detector): 5 pcs Auxiliary systems: Alfa Laval components and ABB synchronous generators Specifications Capacity: 36.45 MW
