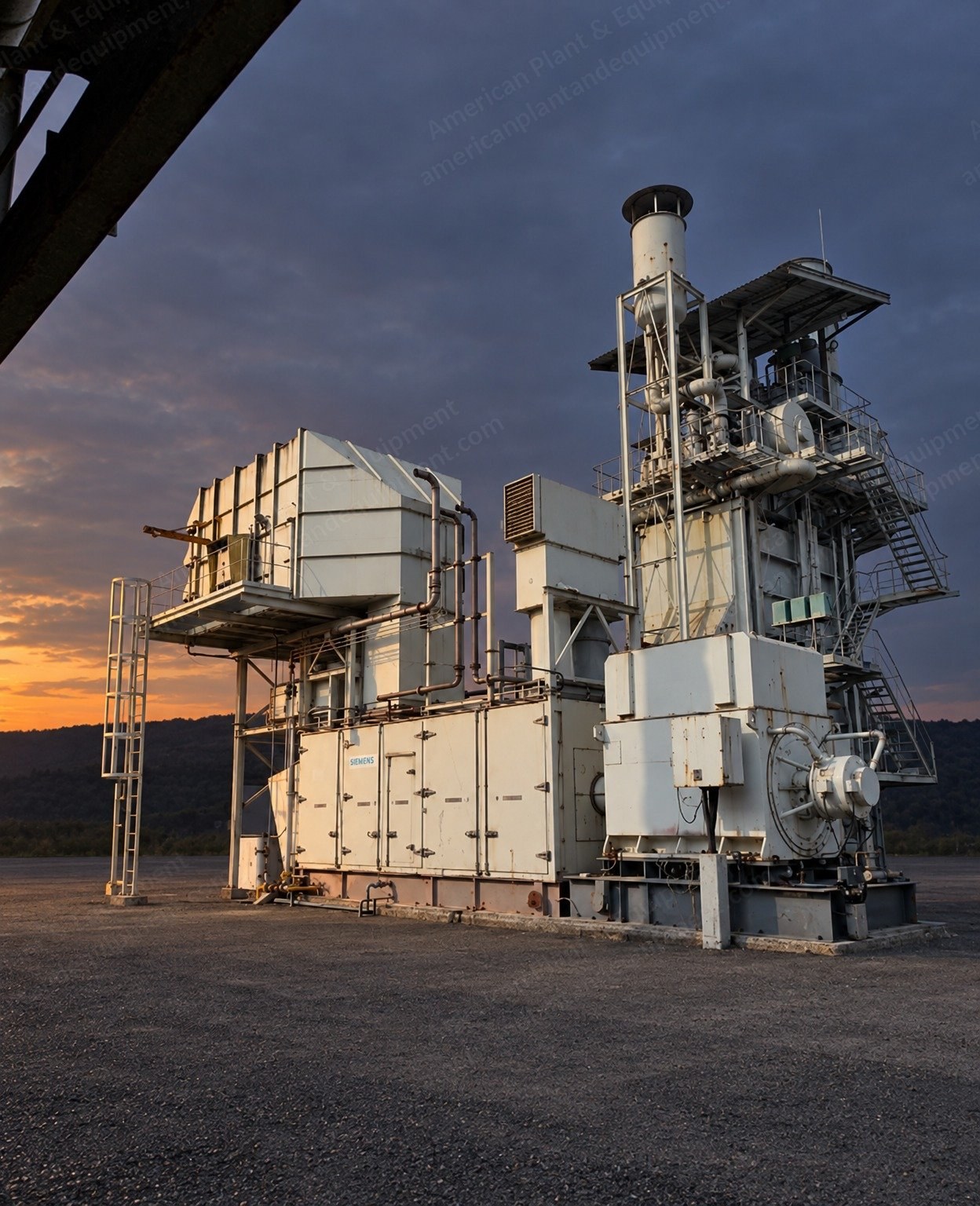

Siemens, SGT400, 2018, 14.4 MW, Natural Gas, 50 Hz, 10.5 kV

Siemens, SGT400, 2018, 14.4 MW, Natural Gas, 50 Hz, 10.5 kV

Description

  1. Overview

    1. Manufacturer: Siemens

    2. Model: SGT400

    3. Year of manufacture: 2018

    4. Commissioning: 2023

    5. Fuel: Natural Gas (NG)

    6. Combustion system: DLE

  2. Specifications

    1. Output: 14.4 MW per unit

    2. Total output: 28.8 MW

    3. Generator: Allan

    4. Frequency: 50 Hz

    5. Generator voltage: 10.5 kV

    6. GT / generator speed: 9,525 / 1,500 RPM

  3. Operating Hours

    1. First set: 243 hours

    2. Second set: 237 hours

  4. Scope of Supply

    1. Complete Siemens SGT400 GTG packages

    2. Gas turbine engine

    3. Gearbox

    4. Generator

    5. Base frame and housing

    6. Fuel gas system and shut-off valves

    7. Control, lubrication and cooling systems

    8. Oil pumps and oil coolers

    9. AC/DC systems, chargers and MCC

    10. Air intake filtration system

    11. Air intake hood

    12. Ventilation system, including filters, fans and silencers

    13. CO₂ fire-extinguishing system, including cylinders, detectors, alarms, control system and piping

    14. Starting system with starter motor

    15. Unit control system and control cabinets

  5. Condition

    1. Installed, very low operating hours

    2. Manufactured in 2018 and commissioned after installation and debugging in 2023

    3. Both units have operated for only a very limited number of hours

    4. Available for inspection subject to mutually agreed terms and procedures
