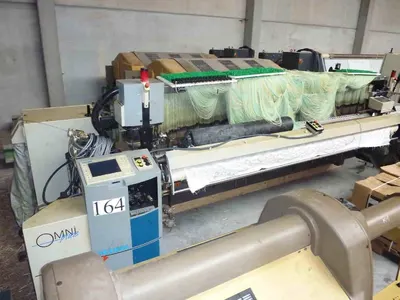

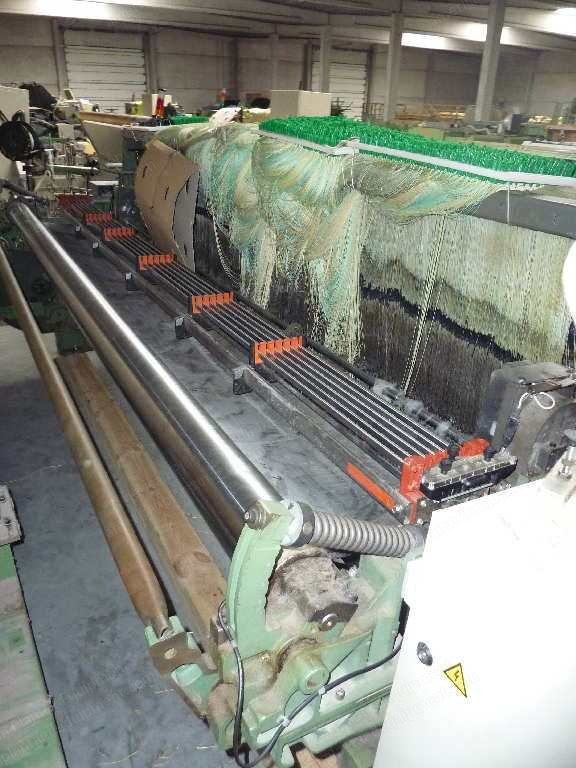

Picanol, Omniplus-F-6-J-340, 2000, 3400mm Working Width, 6 Colors, Staubli LX1600B Jacquard

Picanol, Omniplus-F-6-J-340, 2000, 3400mm Working Width, 6 Colors, Staubli LX1600B Jacquard

Description

  1. Overview
    1. Picanol air jet loom
    2. Type: Omniplus-F-6-J-340
    3. Year: 2000
    4. Working width: 3400 mm
    5. 6 colors
  2. Jacquard Specifications
    1. Electronic Staubli jacquard type LX1600B
    2. 2688 hooks, of which 2640 hooks installed
    3. JC-5 controller
    4. M5 modules
    5. Harness Staubli 88 ends/cm
    6. 26,640 ends on 2x 158.5 cm
  3. Drive and Electrical
    1. Sumo motor
    2. 400 V, 50 Hz
  4. Weft and Warp Equipment
    1. Equipped with 5 weft accumulators Iro type 1131 plus
    2. 6 warp stop motion bars
    3. 15,000 droppers

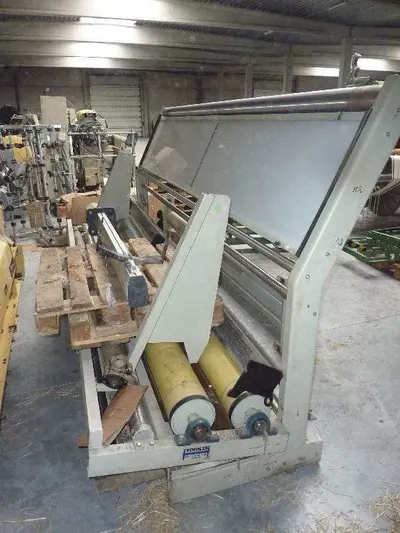

  5. Batching and Beam Configuration
    1. Batching motion Scholze
    2. Without warp beams
    3. Loom equipped for full width beam Ø 1000 mm
    4. Without gantry
