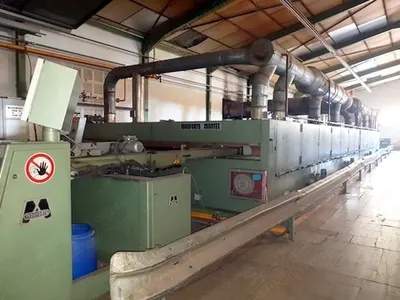

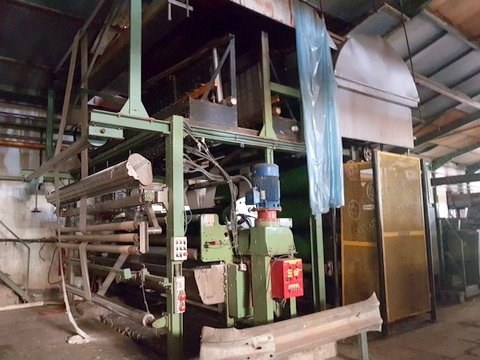

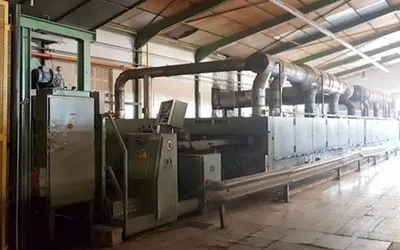

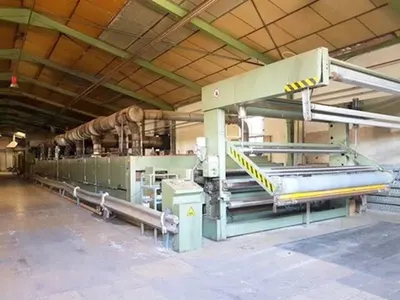

Monforts, Montex, 1997, 3600mm Working Width, 7 Chambers, Gas Heated

Monforts, Montex, 1997, 3600mm Working Width, 7 Chambers, Gas Heated

Description

  1. Overview
    1. Roller width: 3600 mm
    2. Maximum fabric width: 3400 mm
    3. 7 chambers
    4. Natural gas heated
    5. Horizontal pin and clip chain
  2. Composition
    1. High fabric frame with tensioner
    2. Set of SS guide rollers
    3. Opening and centering device in enclosed SS box
    4. Dancing roller assembly
    5. Set of SS guide rollers

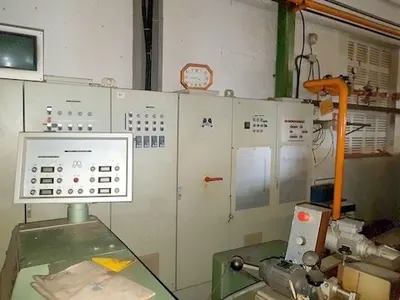

    6. Control panel for operator
    7. Motorized stainless steel scroll rollers assembly for fabric spreading
    8. Set of guide rollers
    9. Gas heated infra red pre-dryer (1990)
    10. Set of guide rollers
    11. 2 bowl finishing padder
    12. Mahlo weft straightener with 2 bow and 3 skew rollers (1990)
    13. Workers platform
    14. Overhead inspection and control monitor bridge
    15. Set of SS scroll rollers and guide rollers
    16. Fabric entry to chain
    17. 3 fingers motorized uncurler
    18. E&L fabric edge guiding cameras type FR1501
    19. Over feeding device up to 50%, brushes for cleaning chain

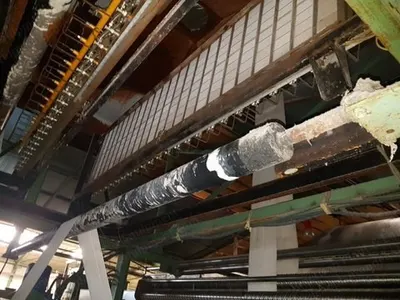

    20. Horizontal pin and clip chain

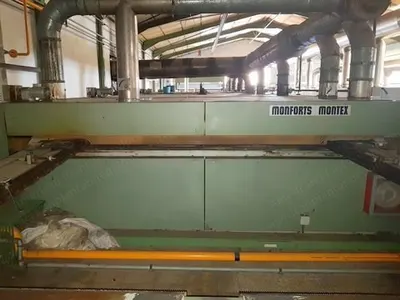

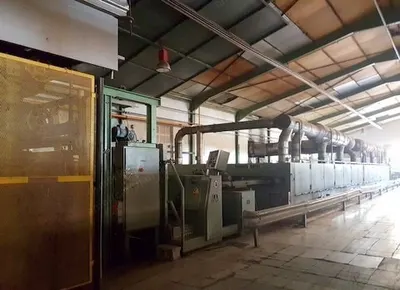

    21. 7 chambers drying and setting oven

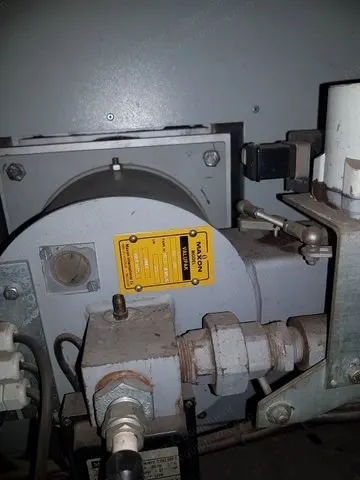

    22. Maxon burners
    23. Automatic moisture and temperature monitor and control for each chamber
    24. Cooling zone at exit with motor and fan
    25. 2 x exhaust fans with motors for fumes and waste air
    26. Exit with plaiter and big pneumatic batcher

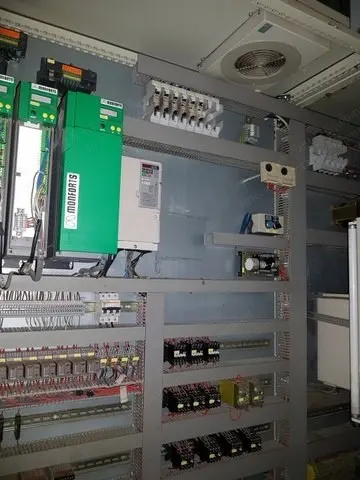

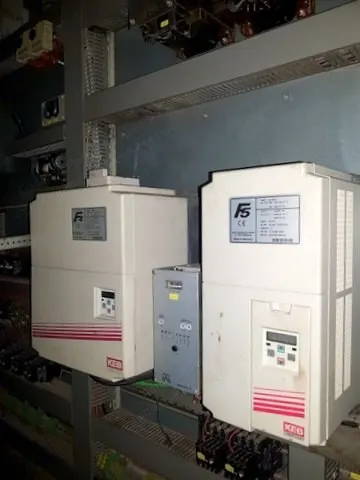

    27. 380 V, 50 Hz, KEB inverters

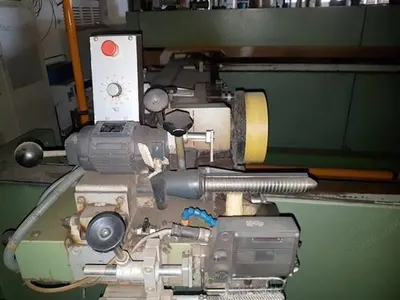

    28. 1 x stitching machine for ends stitching
    29. Complete gas train with regulator
    30. Filter
    31. Control valve and metering
  3. Condition
    1. Excellent running condition
    2. Highly maintained to European standards
