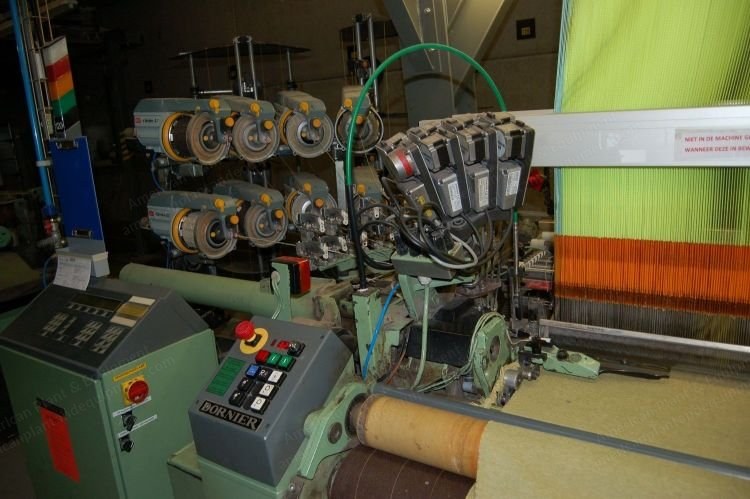

Dornier, HTVS, 1996/1997, 1800mm Working Width, 8 Weft Colors, Staubli LX 1600 Jacquard

Dornier, HTVS, 1996/1997, 1800mm Working Width, 8 Weft Colors, Staubli LX 1600 Jacquard

Description

  1. Overview
    1. Dornier rapier looms
    2. Type HTVS4/J-180 (3 looms)
    3. Type HTVS8/J-180 (4 looms)
    4. Year: 1996 (1 loom) / 1997 (6 looms)
    5. Working width: 1800 mm
    6. Speed: 480 tpm
  2. Jacquard Equipment
    1. Jacquard Staubli type LX 1600
    2. Format: 5120
    3. Year: 2000 (4 looms) / 2002 (3 looms)
  3. Weft and Warp Systems
    1. 8 weft colors
    2. 8 weft feeders Roj on support
    3. Bobbin creel
    4. Electronic let-off and take-up motor
    5. Grob warp detection
    6. 4000 droppers
    7. 1.5 warp beam
  4. Controls and Take-Up
    1. Display panel AT1
    2. Take-up system of the waste selvedge
    3. Waste dustbin
    4. 1.5 cloth roll
    5. Cardan ax
    6. JC5 controller
