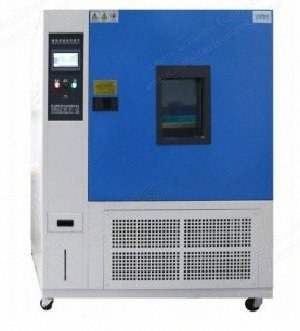

NovaStar, EC175, Constant Temperature and Humidity Test Chamber, 1000L, -70 to 180C, 10% to 98% RH (New)

NovaStar, EC175, Constant Temperature and Humidity Test Chamber, 1000L, -70 to 180C, 10% to 98% RH

Description

  1. Overview
    1. Constant temperature and humidity test chamber
    2. Internal volume: 1000 l (≥980 l)
    3. Internal dimensions: 1000 mm (width) × 1000 mm (deep) × 1000 mm (height)
    4. External dimensions: ≤1200 mm (width) × 1825 mm (deep) × 1978 mm (height)
    5. Equipment weight: approximately 750 kg
  2. Temperature Specifications
    1. Temperature control range: -70 °C to 180 °C (for long term running)
    2. Temperature deviation: ± 1.5 °C in the range of -70 °C to +150 °C
    3. Temperature deviation: ± 3 °C in the range of +150.1 °C to +180 °C
    4. Cooling speed: from normal temperature to -70 °C within 75 minutes
    5. Rapid cooling rate: faster than 1 °C per minute
  3. Humidity Specifications
    1. Humidity control range: 10% to 98% when the cabin temperature is 10 °C to 95 °C
    2. Humidity sensor: wet ball gauze sensor
    3. Corresponds to 95 °C to 95% RH test conditions
  4. Construction and Features
    1. Observation window with electronic heating device
    2. Water tank volume: approximately 32 l
    3. Electronic automatic expansion valve
    4. Compressor: original imported scroll type, ≤3.0 × 3.0 kW
    5. Heater: nickel-chromium alloy heating wire heater
    6. Humidifier: surface evaporation type
  5. Control System
    1. 5-inch color touch screen can set 3 fixed value programs and 40 99-step programs
    2. 7-inch color touch screen
