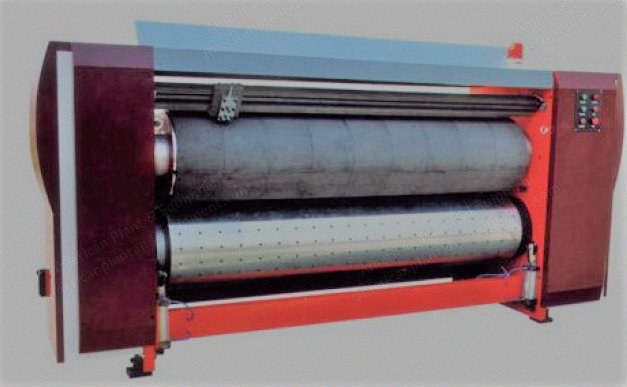

Description Overview Die cutting roller for high quality steel materials, 30 mm thickness, balance correction, hard-chrome plating. Wallboard for high quality cast iron material, 50 mm thickness and large processing center production. Soft roll automatic grinding institution to pouches repeat usage, grinding 3 to 4 times. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line. Cut imports of soft pouches, ease of installation. Mechanical soft roll about 40 mm lateral movement, the pads wear uniform. 40cr material the use of grinding gears for 6, low noise long life. Die cutting roller cylinder automatic separation devices to reduce wear pouches. Paper Feeding Department Adsorption automatic feeder, one-slotting, cut corner, creasing friling. Feed 10,000 per hour speed. Precision die-cutting from +0.75 mm to 0.75 mm. Phase planetary gear used electric adjustments, turn on and turn off down were quick adjustment. Before manually adjust block cardboard side block electric adjustment. Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy. Computer Unit Man-machine interfaces, plc precision control of the entire computer system. Main motor frequency control. On the control panel before and after the concise, easy to operate. The machine is by light, electricity, gas joint control system. Electrical accessories of the machine are branded. Technical Parameters Max feeding paper: 2400 mm x 1400 mm. Minimum feeding paper: 400 mm x 600 mm. Thickness of feeding paper: 11 mm. Feeding speed: 50 to 160 pcs per minute. Power of main motor: 7.5 kW. Machine weight: 6000 kg.
