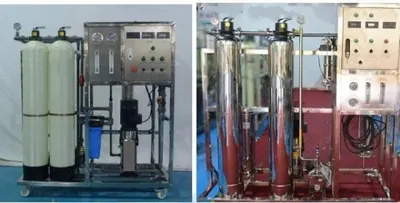

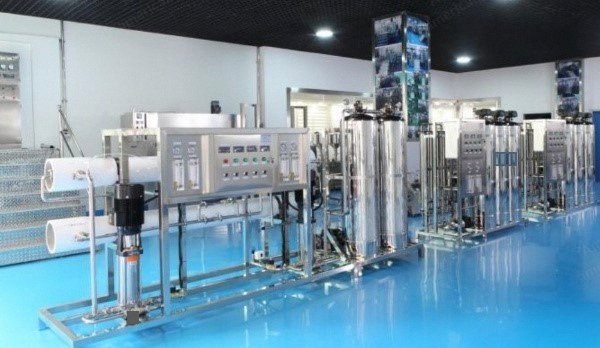

NovaStar, WW112, Water Purification Machine, 250L/h, Reverse Osmosis, Stainless Steel (New)

NovaStar, WW112, Water Purification Machine, 250L/h, Reverse Osmosis, Stainless Steel

Description

  1. Overview
    1. Capacity: 250 L/h
    2. Design volume: 250 L/h
    3. Water conductivity: pure water machine ≤8 µs/cm (raw water conductivity ≤300 µs), meets national standards of water
    4. Reclaim rate: 60%
    5. pH value: 5.5 to 7.5
    6. Desalination rate: whole machine desalination rate ≥98%, single membrane lowest desalination rate 99.6%
    7. Product advantage: south pressure pump, anhydrous automatic stop, automatic supercharging low pressure, pure water pipe water filling and stopping automatically, fully automatic functions
    8. Complete equipment incorporates stainless steel material (PVC drainage pipe, beautiful appearance and pressure resistance)
    9. High pressure pump is imported Grundfos, imported solenoid valve and Dow membrane
  2. Raw Water Pump
    1. Flux: 3 m³/h
    2. Diameter: 35 m
    3. Power: 0.35 kW
  3. FRP Quartz Sand Filter
    1. Type: vertical cylinder
    2. Rinse device: manual flush
    3. Water outlet: 1 m³/h
    4. Size: ф250 x 1250 mm
    5. Barrel height: ⅔ of pillar height
    6. Work pressure: ≤0.8 MPa
    7. Equipment material: FRP
    8. Filter medium: refined quartz sand ~5
  4. FRP Activated Carbon Filter
    1. Type: vertical cylinder
    2. Rinse device: manual flush
    3. Water outlet: 1 m³/h
    4. Size: ф250 x 1250 mm
    5. Barrel height: ⅔ of pillar height
    6. Work pressure: ≤0.8 MPa
    7. Equipment material: FRP
    8. Filter medium: activate carbon, particle size 0.3 to 0.4 m, 25 kg
  5. Precision Filter
    1. Size: 20 inches, 5 µm filter element, 2 pieces
    2. Flux: 2 t/h
    3. Material: blue filter housing PVC
  6. Stainless-Steel High Pressure Pump
    1. South pump industry
    2. Water output: 1 m³/h
    3. Diameter: 120 m
    4. Power: 0.75 kW
  7. Membrane Shell
    1. Material: stainless steel
  8. Reverse Osmosis Membrane
    1. Single flow: 0.25 t/h
  9. Conductivity Meter
    1. Online measure, CM-240 digital display
  10. Water Solenoid Valve
    1. Included
  11. Rinse Solenoid Valve
    1. Included
  12. Control Valve
    1. Included
  13. Flow Meter
    1. 0 to 11 GPM
  14. Pressure Meter
    1. 0 to 0.6 MPa
    2. 0 to 2.5 MPa
  15. Low Voltage Switch
    1. Included
  16. Equipment Rack
    1. Included
  17. Pipeline, Pipe Fittings
    1. PVC
  18. pH Meter
    1. Included
  19. Electrical Control Cabinet
    1. Included
  20. Electrical Components
    1. Included

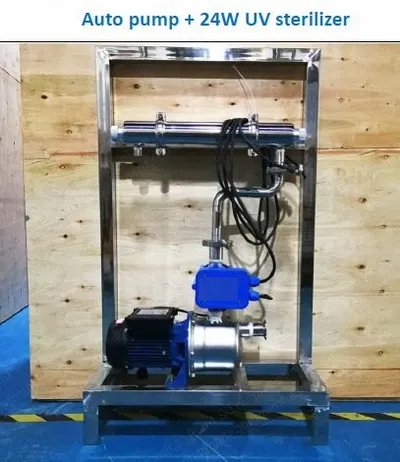

  21. Auto Pump + 24 W UV Sterilizer
    1. Max lift: 34 m
    2. Max flow: 1.5 m³ per hour
    3. Rated lift: 20 m
    4. Rated flow: 1.5 m³ per hour
    5. Max suction: 8.5 m
    6. Pipe diameter: 25 mm
    7. Power: 0.37 kW
    8. Speed: 2900 RPM
    9. Maximum liquid temperature: 70 °C
    10. Insulation class: 155 (F)

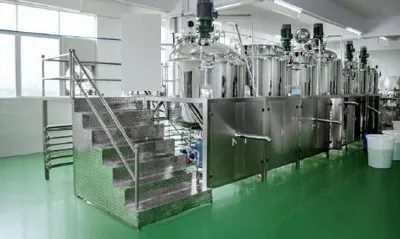

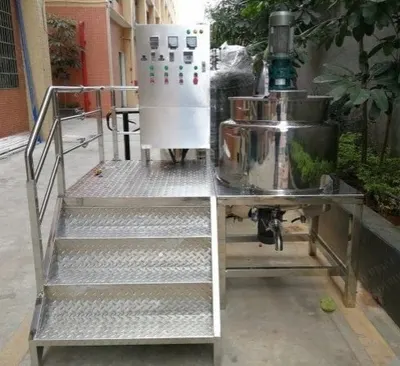

  22. Liquid Homogenizer Mixer
    1. Main pot full volume: 240 L
    2. Working capacity: 60 to 200 L
    3. Internal and external sanitation polishing ≥300 mesh
    4. Inner tank: thick 5 mm, seal head SUS316L, thickness 4 mm, import stainless steel
    5. Jacket: thick 5 mm, electric heating 12 kW, tap water cooling bottom inlet and top outlet
    6. Shell: thick 3 mm, insulation media aluminum silicate
    7. Lid: half open hinged lid, GPM hygiene standards
  23. Agitator
    1. Frame type wall scraper mixing, with one fixed propeller
    2. Flange shaft coupling
    3. Stirrer paddle: thick 10 mm
    4. Scraper blade: PTFE material, remove product from the wall
  24. Agitator Motor
    1. Power: 2.2 kW
    2. Siemens motor and reducer
    3. Speed: 0 to 65 RPM
    4. Delta frequency inverter
  25. Sealing Agitator
    1. Three-way skeleton oil seal + NSK bearing
  26. Bottom Homogenizer
    1. Power: 4 kW Siemens motor
    2. Rotor and stator high shearing homogenizer
    3. Speed: 0 to 3600 RPM, Delta inverter
  27. Sealing of Homogenizer
    1. Mechanical seal + water cooling circulation
  28. Discharging Way
    1. DN36 bottom ball valve, hygiene level
  29. Electric Control System
    1. Shell material: thickness 2 mm, stainless steel sand panel
    2. Standard configuration: instrument, button, appliance components
  30. Platform and Bracket
    1. All SS and equipped with anti-skid aluminum plate
    2. Best configuration
  31. Horizontal Liquid Filling Machine
    1. Structure: self-suction products to filling machine, full pneumatic control, normal gravity type feeding products, change manual and automatic filling state, piston cylinder control volume
    2. Principle: compressed air control drive, using lead screw, counter, make filling quantity adjustment accurate, emergency switch, piston automatically retreat back to initial bits, filling stop
    3. Cylinder: Airtac
    4. Material: for all contact products part
    5. Filling range: 100 to 1000 mL
    6. Filling speed: 0 to 30 BPM (adjustable)
    7. Air pressure: 0.5 to 0.8 MPa
    8. Working pressure: 0.2 to 0.5 MPa
    9. Air consumption: 0.05 m³ per min
    10. Weight: 45 kg

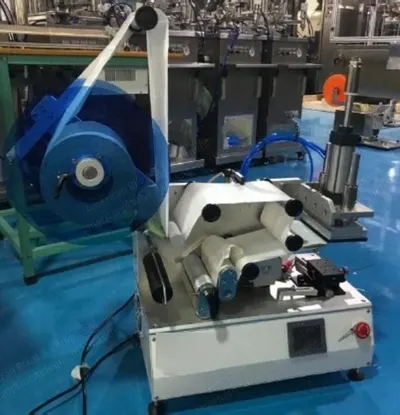

  32. Semi Automatic Round Bottle Labeling Machine
    1. Scope of applicable labels: width 10 to 350 mm, length 10 to 150 mm
    2. Diameter of applicable bottle neck: external diameter 20 to 80 mm, height 30 to 200 mm
    3. Max roll inside diameter: 76 mm
    4. Production capacity: 1200 to 2400 bottles per hour (depends on size of label and speed of manual operation)
    5. Rated voltage: 220 V, 50 Hz
    6. Total power: 100 W
  33. Semi Automatic Flat Bottle Labeling Machine
    1. Scope of applicable labels: width 10 to 350 mm, length 10 to 150 mm
    2. Diameter of applicable bottle neck: external diameter 20 to 80 mm, height 30 to 200 mm
    3. Max roll inside diameter: 76 mm
    4. Production capacity: 1200 to 2400 bottles per hour (depends on size of label and speed of manual operation)
    5. Rated voltage: 220 V, 50 Hz
    6. Total power: 100 W
  34. Conveyor Belt
    1. Equipment includes: one set speed regulation motor, one set stents and working table, one piece belt
    2. Speed regulation motor: Taibag motor, power 0.4 kW, speed 0 to 200 per min
    3. Delta inverter, frequency control
    4. Working table countertop: length 6000 mm, width 750 mm, height 800 mm (height adjustable)
    5. Desk plate thickness: 1.3 mm
