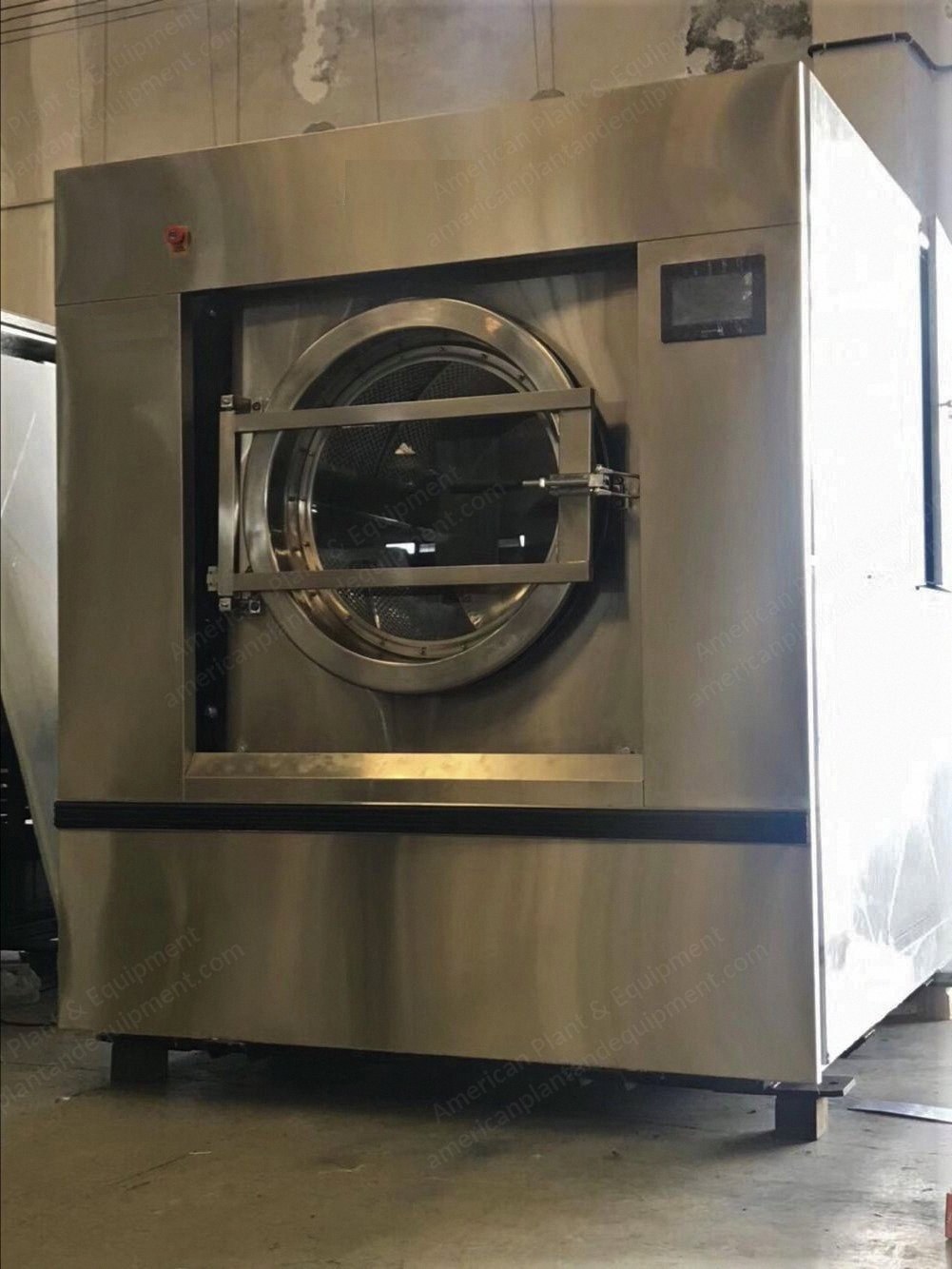

NovaStar, HE-100, Automatic Washer Extractor, 100kg capacity, 1235x842mm drum, 325-650 RPM extraction

NovaStar, HE-100, Automatic Washer Extractor, 100kg capacity, 1235x842mm drum, 325-650 RPM extraction

Description

  1. Overview
    1. Designed for industrial laundry, washing and extracting, 2 in 1.
    2. Soft mount design supported by hydraulic damper; foundation free.
    3. Automatic control with 30 editable programs and fault-diagnosis function.
    4. Automatic temperature control, thermostatic heating function, energy saving.
    5. High speed extracting, 300 to 320 g-force.
    6. Advanced automatic detergent feeder.
    7. Equipped with balance sensor, automatic stop against over-shock.
    8. Pneumatic automatic door lock.
  2. Specifications
    1. Washing capacity: 100 kgs.
    2. Drum size: 1235 mm x 842 mm.
    3. Drum volume: 1008 liters.
    4. Drum material: 304 stainless steel, inner and outer drum.
    5. Washing speed: 30 to 60 rpm.
    6. Mid or high extraction speed: 325 to 650 rpm.
    7. Voltage: 220, 60 Hz.
    8. Motor power: 7.5 kW.
    9. Inverter power: 15 to 18.5 kW.
    10. Water inlet diameter: 50 DN.
    11. Water supply pressure: 0.2 to 0.3 Mpa.
    12. Water consumption: 1400 kgs per batch.
    13. Drainage pipe: 100 DN.
    14. Compressed air pressure: 0.4 to 0.6 Mpa.
    15. Compressed air inlet diameter: 8 mm.
    16. Machine dimensions: length 1690 mm x width 2000 mm x height 2080 mm.
    17. Net weight: 3500 kgs.
    18. Electric heat, power 36 kW.
    19. Steam pressure: 0.4 to 0.6 Mpa.
    20. Steam consumption: 50 kgs per batch.
    21. Steam inlet diameter: 25 DN.
