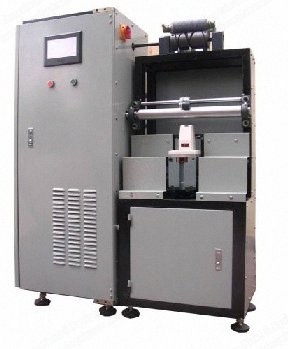

Part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test.
Mini type machine, save researching cost and easy to operate and maintain.
Can be used for cotton fiber or wool fiber (alternative) with different parts.
Features
Incorporates touch screen and PLC control.
Imported frequency converter of high efficiency.
Technical Specifications
Number of spindles: 1, 2, 3, 4 or customized.
Fiber type: cotton.
Revolving cup speed: 30000 rpm.
Combing roller: 6000 rpm.
Drafting range: 30 to 250.
Coiling speed: 20 to 110000 mm per minute.
Fiber length: 22 to 42 mm.
Output capacity: 0.25 to 1 kg per hour or customized.
Dimension: 800 x 600 x 1700 mm.
