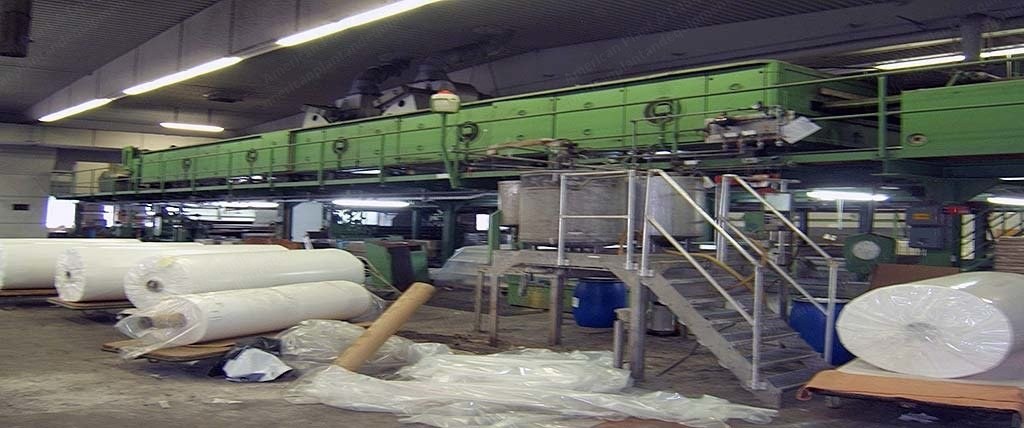

Artos, Stenter Frame, 1967, 2400mm Working Width, Steam Heated

Artos, Stenter Frame, 1967, 2400mm Working Width, Steam Heated

Description

  1. Overview
    1. Make: Artos
    2. Year: 1967
    3. Production width: 600 to 2400 mm
    4. Speed: 0.1 to 20 m/s
    5. Working temperature: 130 °C max.
  2. Plant Includes
    1. Infeed: Küsters-Foulard 222.52 (2 machines, years 1987 and 1994)
    2. Infeed swing dryer
    3. Clamping frame dryer
    4. Machine outlet
    5. Control cabinets and panels
  3. Included Components
    1. 5 x steam heated double heaters
    2. 4 x recirculation motors: 6.5 kW / 1440/min
    3. 6 x recirculation motors: 1.9 to 6.5 kW / 970 to 1460/min
    4. Main drive: 11 kW / 1455/min
    5. 2 x radial exhaust fans: output 2 x 2000 to 10000 m³/h, motor power 5.5 kW, rotational speed 1440/min
    6. Rotatable infrared radiator heating field, heating surface 2200 x 1000 mm, installed heating output 60 kW
