REFERENCE NUMBER: K-3941

LABORATORY COTTON FANCY YARN TWISTER



TWO SETS OF THICK YARN FEEDING, WITH CORN YARN ROLLER, TO SPIN COTTON LOOP YARN, SLUB/KNOP YARN, 2 COLOR FANCY YARN



CONTROL:TOUCH SCREEN+ PLC

4 SPINDLES

TWISTING DEGREE:ABOUT 200-2000 TIMES/METER

DRAFTING RANGE:ABOUT 2-50

FIBER LENGTH:22mm TO 42mm

OUTPUT:ABOUT 0.25KG-0.5KG

SPINDLE SPEED:12000 RPM

ROLLER SIZE:Φ25/25/25mm

RING SIZE:Φ38-45 mm

TOTAL POWER:750W

VOLTAGE:220/3×380V AC  50/60Hz

MACHINE DIMENSIONS 1000mm×800mm×1600mm



QUANTITY: 1

Learn More

S-1171 RING TWISTER RT-721A WITH 160 SPINDLES, ROLLER DIAMETER 51 OR 57mm

RING TWISTER
MODEL: RT-721A
QUANTITY OF SPINDLE: 160 (ADJUSTED)
LIFTING MOVEMENT OF TRAVELER RING: 203mm
SPEED OF SPINDLE: 3310 TO 6760RPM
DIA OF ROLLER: 51 OR 57mm
DISTANCE OF SPINDLE: 140mm
POWER OF MOTOR: 380VAC, 3PHASE, 50HZ, 11KW
DIA OF TRAVELER RING: 100mm
TWISTING DIRECTION: Z OR S
SCOPE: 10-2 COUNTS YARN OR 450D-2500D FIBER
36 TEX 3-18 PLY PP OR PE TWINE
OVERALL DIMENSION: 13.5*1.13*2.15M
MACHINE WEIGHT: 6500 KGS

QUANTITY: 1

Learn More

S-1170 RING TWISTER RT-721B WITH 120 SPINDLES, ROLLER DIAMETER 51 OR 57mm

RING TWISTER
MODEL: RT-721B
QUANTITY OF SPINDLE: 120 (ADJUSTED)
LIFTING MOVEMENT OF TRAVELER RING: 205mm
SPEED OF SPINDLE: 2800 TO 5730RPM
DIA OF ROLLER: 51 OR 57mm
DISTANCE OF SPINDLE: 186mm
POWER OF MOTOR: 380VAC, 3PHASE, 50HZ, 15KW
DIA OF TRAVELER RING: 140mm
TWISTING DIRECTION: Z OR S
SCOPE: 21 COUNTS 5-36 PLYS YARN
2000D-5000D FIBER
36 TEX 3-36 PLY PP OR PE TWINE
OVERALL DIMENSION: 13.5*1.13*2.15M
MACHINE WEIGHT: 6800 KGS

QUANTITY: 1

Learn More

S-1169 RING TWISTER RT-722 WITH 40 SPINDLES, ROLLER DIAMETER 57mm

RING TWISTER
MODEL: RT-722
QUANTITY OF SPINDLE: 40 (ADJUSTED)
LIFTING MOVEMENT OF TRAVELER RING: 300mm
SPEED OF SPINDLE: 1800 TO 2800RPM
DIA OF ROLLER: 57mm
DISTANCE OF SPINDLE: 280mm
POWER OF MOTOR: 380VAC, 3PHASE, 50HZ, 15KW
DIA OF TRAVELER RING: 204mm
TWISTING DIRECTION: Z OR S
SCOPE: 21 COUNTS 5-180 PLY YARN OR 850-15000 FIBER
36 TEX 21-70 PLY TWINE
OVERALL DIMENSION: 7.07*1.58*2.27M
MACHINE WEIGHT: 6600 KGS

QUANTITY: 1

Learn More

S-1168 RING TWISTER RT-723 WITH 15 SPINDLES, ROLLER DIAMETER 57mm

RING TWISTER
MODEL: RT-723
QUANTITY OF SPINDLE: 15 (ADJUSTED)
LIFTING MOVEMENT OF TRAVELER RING: 300mm
SPEED OF SPINDLE: 1800 TO 2100RPM
DIA OF ROLLER: 57mm
DISTANCE OF SPINDLE: 375mm
POWER OF MOTOR: 380VAC, 3PHASE, 50HZ, 7.5KW
DIA OF TRAVELER RING: 254mm
TWISTING DIRECTION: Z OR S
SCOPE: 21 COUNTS 5-180 PLY YARN OR 850-15000 FIBER
36 TEX 21-70 PLY TWINE
OVERALL DIMENSION: 5.951.1*2.2M
MACHINE WEIGHT: 2800 KGS

QUANTITY: 1

Learn More

REFERENCE NUMBER: X-1034 VOLKMANN 2x1 TWISTER VTS07/5.10, YEAR 1995 WITH 120 POSITIONS 120 SPINDLES POWER 8” (LONG TUBE 225mm) DIAMETER COILS UP TO 180mm EXIT CONES 6” (COURSES 152 mm) CONICITY 5 o 57’ THREADED TIRE THREAD BACKUP DECIVE IN THE SPINNING ON THE CONE STOP LIFT THE ARM-HOLDER ROPTURA WIRE INVERTER SPEED REGULATION MOVING TANGENCIAL SPINDLES FOR BAND SPEED ZONE OF 6000 TO 9500 RPM 16 METERS PER MINUTE OF A 30, 77A TWISTE FOR METRO 1331 TWISTS IN SIZE QUANTITY AVAILABLE: 3 Learn More

REFERENCE NUMBER: F-1425 (02025LNKM1RC) C RPR TWISTING MACHINES 320mm DIAMETER 72 SPINDLES MANUFACTURER: RPR (ITALY) POT DIAMETER: 320mm (12.5 INCHES) NUMBER OF SPINDLES PER MACHINE: 72 QUANTITY AVAILABLE: 2 Learn More

REFERENCE NUMBER: M-4752 (111112AJS10R) L SAVIO TWISTER 190 YEAR 1990 SAVIO MODEL TDS 190 300 SPINDLES DOUBLE DRIVE FEEDING 8” (200mm) MAXIMUM BOBBIN DIAMETER 154mm DELIVERY 6” (152mm) X 4°20’ LEVER FOR YARN BREAKING PNEUMATIC THREAD-IN YARN RESERVE CREEL SOFT CONES DEVICE MAGITEX (CHAIN) YEAR 1990 QUANTITY AVAILABLE: 1 Learn More

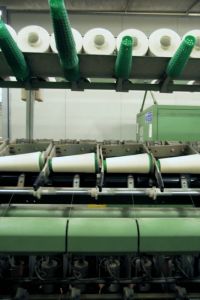

REFERENCE NUMBER: M-4753 (11112GBBH10R) L SAVIO TWISTER 190 F YEAR 1991 TDS SAVIO MODEL 190 F 396 SPINDLES FREE BALLON FEEDING 6” (152 mm.) DELIVERY 6” (152 mm.) CONICITY 4°20’ PNEUMATIC THREAD-IN YARN RESERVE SOFT CONES DEVICE YEAR 1991 QUANTITY AVAILABLE: 1 Learn More

REFERENCE NUMBER: M-5035 (121255DNE11RX) L OERLIKON SAURER VOLKMANN VTS-07 COMPACT TWISTING MACHINE YEAR 2008 – 96 SPINDLES OERLIKON SAURER VOLKMANN TWISTING MACHINE YEAR OF MANUFACTURE: 2008 / ONLY 1,810 OPERATING HOURS TYPE: VTS-07 COMPACT TWISTER WITH 96 SPINDLES ASSEMBLY-WOUND FEED PACKAGES OF 6” SINGLE-PLY YARN FEED PACKAGES OF 2 x 6” VOLCOJET SYSTEM MOTOR 30KW INCLUDES BOBBIN 32,000 (6 DIFFERENT COLORS) 165X20X11X4.5mm (NEW) QUANTITY AVAILABLE: 1 Learn More
