Search results for: 'Mattress f'

YY-2155 MATTRESS BORDER ZIPPER AUTOMATIC SEWING MACHINE, MAXIMUM SPEED 3000RPM FEATURES: 1. MAXIMUM SPEED: 3000RPM; 2. PRODUCTIVITY: 10 M/MIN; 3. ZIPPER WIDTH: 32mm (OTHERS SIZES CAN BE CUSTOMIZED); 4. FINISHED PRODUCTS WIDTH: ≤350mm (CUSTOMIZABLE); 5. ZIPPER RELATIVE POSITION CAN BE ADJUSTED ACCORDING TO THE PRODUCT TECHNICS; 6. SYNCHRONOUS CUTTER DESIGN, PNEUMATIC CONTROL CUTTER PRESSURE, EASY TO MAKE ADJUSTMENT; 7. MATTRESS BORDER LEFT-RIGHT LIMITS SET-GUIDE MECHANISM, APPLY FOR BORDER WIDTH AND LEFT RIGHT POSITION ADJUSTMENT; 8. AUTOMATIC THREAD BREAKAGE DETECT. 9. PRODUCTION OUTPUT COUNTING FUNCTION. 10. AUTOMATIC WINDING FUNCTION. 11. MATTRESS BORDER WIDTH: MAXIMUM 350mm, OTHER WIDTH CAN BE CUSTOMIZED; 12. WITH PNEUMATIC CUTTING KNIFE; 13. WITH THREAD BROKEN DETECTIVE FUNCTION; 14. WITH PRODUCTION COUNTING FUNCTION; 15. WITH AUTO RE-ROLLING FUNCTION; 16. STITCH TYPE: MULTI-NEEDLES DOUBLE THREAD CHAIN STITCH; 17. NEEDLE QUANTITY: 4 NEEDLES; 18. STITCH LINE DISTANCE: 1/4-1/2-1/4; 19. STITCH LENGTH: 5-6 STITCHES PER INCH; 20. MAX SEWING THICKNESS: 8mm; 21. POWER: SINGLE PHASE, 220V; 22. POWER CAPACITY: 2.2KW; 23. INSTALLATION SIZE: 4100X1100X1900mm. QUANTITY: 1 Learn More

H-1289 SEMI-AUTOMATIC MATTRESS COMPRESSION MACHINE, PRESS PLATE TYPE VACUUM COMPRESSED PACKING FOR MATTRESS COMPRESSION MAINLY USED FOR ALL TYPES OF FOAM MATTRESSES OR SPRING MATTRESSES • MAXIMUM LIFTING DISTANCE: 500mm • TOTAL MACHINE MAXIMUM PRESSURE : 50 TONS • OIL PUMP POWER : 7.5 KW • OIL CYLINDER QUANTITY : 4 • MACHINE VOLUME: 13 CUBIC METERS, REQUIRES (1) 20-FOOT CONTAINER TO SHIP QUANTITY: 1 Learn More

J-4802 TEKNOMAC MATTRESS ROLL PACKING MACHINE, YEAR 2018 -INCLUDES ENTRY CONVEYOR AND EXIT CONVEYOR MAKE: TEKNOMAC MODEL: TK381/2+390 YEAR: 2018 QUANTITY: 1 Learn More

J-4765 AUTOMATIC HOT MELT GLUE MACHINE FOR MATTRESSES, 20 SECONDS PER MATTRESS -MAXIMUM MATTRESS WIDTH: 2100mm -MAXIMUM MATTRESS HEIGHT: 500mm QUANTITY: 1 Learn More

ABLE TO DO ROLLING TESTS ON MATTRESSES

DURABILITY TEST FOR THE BED SURFACE:
1. USES INDEPENDENT CONTROL SYSTEM. PLC CONTROL SEPARATELY. COOPERATE WITH COLOR TOUCH SCREEN. IT IS
CONVENIENT AND VISUAL TO OPERATE. THE TESTING PROCESS AND THE RUNNING STATUS BE CLEAR TO US, TEST TIMES CAN
BE SET FREELY.
2. SPECIAL LIFT DEVICE IS CONVENIENT TO LIFT UP THE HEAVY ROLLER AND EASY TO MOVE IT TO THE TEST AREA OF THE
MATTRESS. THEN PUT DOWN THE ROLLER AND MAKE ITS OWN WEIGHT FULLY LOAD TO THE SURFACE OF THE MATTRESS.
3.ROLLER CAN MOVE UP AND DOWN IN THE TESTING PROCESS, TO ADAPT TO CONCAVE AND CONVEX SURFACE OF THE
MATTRESS.
4. WHEN DOING DURABILITY TEST OF EDGE, ROLLER CAN BE MOVED TO THE “PARKING” AREA BEHIND THE INSTRUMENT.
5. DURABILITY TEST FOR THE EDGE IS DRIVEN BY SERVO MOTOR; IT IS QUIET, STEADY AND RELIABLE TO OPERATE.
6. INCORPORATES ADVANCED PHOTOELECTRIC SENSE TECHNOLOGY. THE BEGINNING POSITION OF THE CENTER LINE OF THE
CUSHION SURFACE RETURN TO THE HOME POSITION AUTOMATICALLY.
DURABILITY TEST FOR BED EDGE :
ADOPT INDEPENDENT CONTROL SYSTEM, USING DEDICATED HIGH-PRECISION AND HIGH INTELLIGENT ARAM CONTROLLER
AND SPECIAL TEST SOFTWARE. IT CAN RUN UNDER WINDOWS SYSTEM ON PC, IT IS OPERATED ALL BY SOFTWARE, THE
INTERFACE OF SOFTWARE IS EASY TO OPERATE.
SPECIAL TEST SOFTWARE ON PC, WINDOWS OPERATING PAGE, A HIGH DEGREE OF COMPATIBILITY.
TEST PROGRAM HAS ALREADY BEEN SET ON THE SOFTWARE ON PC ACCORDING TO THE TEST REQUIREMENT. A KEY TO TEST.
IT IS CONVENIENT FOR OPERATOR TO LEARN AND SAVE THE TRAINING TIME.
THE CURVE WINDOW OF TEST SOFTWARE DISPLAY THE VALUES OF FORCE AND SHIFT IN REAL TIME, COORDINATE MODEL.
LOADING CUSHION ON THE EDGE AND LOADING CUSHION WHICH IS USED FOR MEASURING USE GENERIC CONNECTION
HEAD THAT CAN BE IN INTERCHANGED. SHARING A SET OF DRIVING DEVICE, SAVE SPACE AND COST.
ADJUSTABLE RACK. THE PRESSURE PLATE CAN BE ADJUSTED THE POSITION ALONG THE DIRECTION OF X AND Y. IT CAN
MEASURE EACH POINT OF THE MATTRESS. IT IS DIFFERENT FROM THE TRADITION WAY TO SEPARATE. THE TEST CAN BE
FINISHED WITHOUT MOVING THE SAMPLE.
SAVE A LOT OF TESTING TIME, GREATLY REDUCES THE WORKING INTENSITY, OPERATORS CAN ACHIEVE SINGLE OPERATION,
SAVE THE COMPANY COST.
FORCE SENSOR AVOIDS DAMAGE TO THE CORE COMPONENTS BECAUSE IT CAN MAKE PROTECTION WHEN IT IS OVERLOAD.

ROLLING TEST SPEED: 16±2CYCLES PER MINUTE (OR SPECIFIED BY CUSTOMER)
CYLINDER ROLLER: 1400N, THE MIDDLE DIAMETER: 300mm, BOTH ENDS DIAMETER: 250mm, LENGTH: 1000
HEXAGON STYLE WOODEN ROLLER: SIZE AS STANDARD REQUIREMENT
COUNTER: 0~999999 CAN BE SET.
THE CONTROL WAY OF ROLLING: TOUCH SCREEN + PLC CONTROL
LOADING CUSHION ON THE EDGE: BUTTOCKS SHAPE, 380mm X 495mm
LOADING PARTS ON THE EDGE: THE MIDPOINT ON THE LONG EDGE OF THE MATTRESS.200 mm FROM EDGE.
LOADING FORCE ON THE EDGE: 1000N
LOADING TIME ON THE EDGE: 3S
POSITION OF MEASUREMENT: MATTRESS CENTER, LEFT AND RIGHT ARE BOTH 250mm, THE MIDPOINT ON THE LONG EDGE
OF THE MATTRESS 200 mm INWARD.
LOADING PLATE OF MEASUREMENT: DIAMETER 355mm, RADIUS OF CURVATURE OF THE END R800mm
CAPACITY OF FORCE SENSOR: 2KN
LOADING SPEED OF MEASUREMENT: 90±5mm/MIN
STROKE: 500mm
DRIVE MOTOR: SERVO MOTOR

Learn More

TT-2144 MPT AUTO-TUFT SYSTEM, COMPLETELY AUTOMATION A FULLY AUTOMATIC TUFTING SYSTEM COMPLETE WITH PLC CONTROL USING TOUCH SCREEN TECHNOLOGY. SUPPLIED WITH PRODUCT IN-FEED CONVEYOR AND EXIT CONVEYOR. MACHINE SPEED BASED ON FIRST TO LAST TUFT: 3FT IN 85 SECONDS 4’6 TO 5’ IN 105 SECONDS. 200+ MATTRESSES PER 8 HOUR SHIFT BASED ON 3’, 4’6’ & 5’ PRODUCTS. MACHINE FEATURES HORIZONTAL FEED SUITABLE FOR ALL SPRING TYPES INCLUDING POCKET UNITS LATEX AND FUTONS MATTRESSES HELICAL AVOIDANCE SYSTEM AUTOMATIC PRODUCT SIZING Learn More

REFERENCE NUMBER: J-3756 MERELLO MATTRESS PACKING MACHINE, MODEL ME-104, MAX. MATTRESS 2250 x 2250 x 500mm MAKE: MERELLO MODEL: ME-104 BAG IS MADE OF PLASTIC ROLLS (PE), THICKNESS FROM 50 TO 200 MICROMETERS AUTOMATIC ADJUSTMENT OF THE WIDTH, HEIGHT AND THICKNESS OF THE MATTRESS MATTRESS DIMENSIONS: FROM 1700 x 700 x 100mm TO 2250 x 2250 x 500mm DETECTS THE THICKNESS OF THE MATTRESS AND APPLIES THE PROGRAMMED PRESSURE TO FURTHER TIGTHEN THE BAG PLASTIC CUTS WITH COLD KNIFE: MAINTENANCE-FREE, SMOKE OR ODOR FREE REINFORCEMENT COIL: MOTORIZED ROLLERS FOR PLACING ADDITIONAL PLASTIC ROLLERS TRANSISTORIZED PLC CONTROL AND TOUCH SCREEN THAT REPORTS THE STATUS OF HE MACHINE VARIABLE SPEED DRIVE IN ALL MOTORS TO EXTEND THEIR LIFE THE MACHINE CAN STORE 4 + 4 BOBBINS IN WORKING POSITION Learn More

T-8404 AUTOMATIC MATTRESS HOTMELT GLUE LINE CONTENT OF LINE HOT MELT SITATION UNIT - WITH HOT MELT UNIT (CORNER AND CENTER GLUING) TRANSPORTATION CONVEYOR WITH ANTISTATIC SILICON BELT (2 SETS) MATTRESS FLIPPING CONVEYOR (1 SET) AUTOMATIC PRESSING SYSTEM (1 SET) Learn More

REFERENCE NUMBER: K-5003 HOTMELT GLUING MATTRESS PRODUCTION LINE 2200mm 500 TO 600 MATTRESSES PER 8-HOUR SHIFT MAX WORKING WIDTH: 2200mm CAPACITY: AVERAGE 500 TO 600 MATTRESSES PER 8 HOUR SHIFT (DEPENDING ON THE OPERATOR PERFORMANCE), ASSUMING ONLY ONE FOAM LAYER IS USED. THE OVERALL SYSTEM IS CONTROLLED WITH ONE MAIN CONTROL PANEL INCLUDES TWO HOTMELT GLUE GUNS FOR THE EDGE: ONE GUN WITH 8 NOZZLES (T-SHAPED) ONE GUN WITH 4 NOZZLES LINE IS FOR BOTH POCKET AND BONNEL SPRINGS. ONE BUTTON PRESS TOGGLES BETWEEN THE TWO; ALL GLUING DIMENSIONS WILL BE SET AUTOMATICALLY WITHOUT ENTERING ANY DIMENSIONS. FLOORSPACE DIMENSIONS: 12400mm X 2400mm QUANTITY AVAILABLE: 1 Learn More

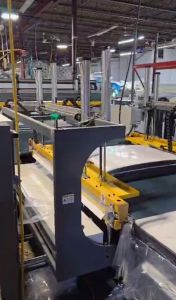

TT-6324 MATTRESS WRAPPER MACHINE, WIDTH 2200mm, YEAR 2022 1. MATTRESS WRAPPER MACHINE 2. MANUFACTURING YEAR 2022 3. AND THE DELIVERY DATE IS 2023 QUANTITY: 1 Learn More
