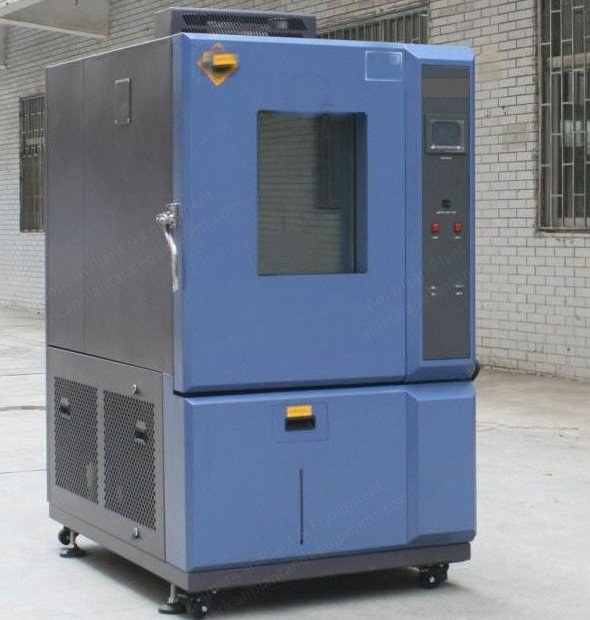

NovaStar, 1000 L, Stability Chamber, EC100 Capacity, 70 to 180C, 10% to 98% RH (New)

NovaStar, 1000 L, Stability Chamber, EC100 Capacity, 70 to 180C, 10% to 98% RH

Description

  1. Accessories
    1. Temperature resistant silicone gasket: 1 pc
    2. Cable port: 1 pc; OD 100 mm
    3. Window light: 1 pc
    4. Multipane view window: 1 pc
    5. Loading shelves: 2 pcs
  2. Refrigeration and Heating System
    1. Original imported high efficiency compressor
    2. Air cooling condenser
    3. Fin-tube heater
    4. Original imported solenoid valves
    5. Inner spiral K-type refrigerant copper tube
    6. U-type finned electro-thermal tube
    7. Heating and cooling systems separated
    8. Single stage refrigerating system
  3. Humidifying and Dehumidifying System
    1. Electric and byte type humidifying system
    2. Stainless steel humidifying barrel with view window for water level
    3. ADP dehumidifying way
    4. Over-temperature and overflow protection units
    5. Humidifying and dehumidifying systems separated
  4. Circling and Drain System
    1. Centrifugal fan and imported motor
    2. Reverse uniflow (air flow direction)
    3. Flow-throws wind
    4. Drain system uses swirl type outlet and U-trap deposition unit
  5. Programmable Micro Computer LCD Touch Controller
    1. Programmable touch controller, user-friendly, stable and easy use
    2. Programs: 99 segments per program, 120 programs, 120 cycling per program
    3. PID and SSR control way, stable and easy use
    4. Have slop control function for heating and cooling, linked PTNs can be executed
    5. PID automatic calculation
    6. Micro computer multi function controller, main components data automatically output including compressors, solenoids, heating units, etc
    7. Errors of main components appear on the LCD panel
    8. The brightness of the LCD panel can be adjusted
    9. Time sequence control interface relays have 3 groups which manage the output of outside logic units including signal, mechanical and power, etc
    10. Programs auto-save function if power cut off suddenly
    11. Have HOLD and ADV buttons in programs
    12. Automatically set the high and low temperature limits after programs set
    13. Password set function
    14. SD card slot, 2 GB SD card, RS232 or Ethernet (RJ45)
  6. Operating Environment
    1. Ambient temperature: +25°C
    2. RH ≤85%
  7. Protection
    1. Electricity leak protection
    2. Lightning strike protection, ZRN lightning arrester inside the controller
    3. Sensor dates transferred inside the micro computer
    4. Temp. sensors TO open circuit or short circuit (+ - OVER)
    5. The first level over temperature protection
    6. Error detected units
    7. The second level over temperature protection TO electronic over-temp protection unit
    8. The third level over-temperature protection
    9. Compressor protection TO refrigerants pressure protection and overload protection
    10. Extended protection unit TO two suppletive ports
    11. Error protection TO power cut off, error reports shown in LCD panel and audible alarm starts
    12. Dynamic high and low temperature protection
    13. Ambient temperature protection TO the inner chamber and specimens automatically return back to ambient temperature after the operation stop
    14. Safety protection: non-fuse protection switch, overheat alarm protection, compressor overload protection, phase sequence protection, motor over TO current protection
