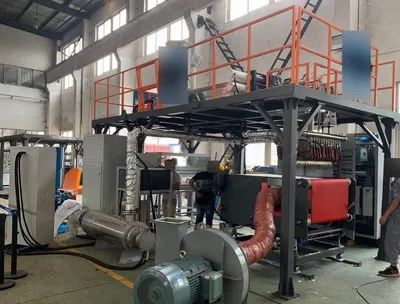

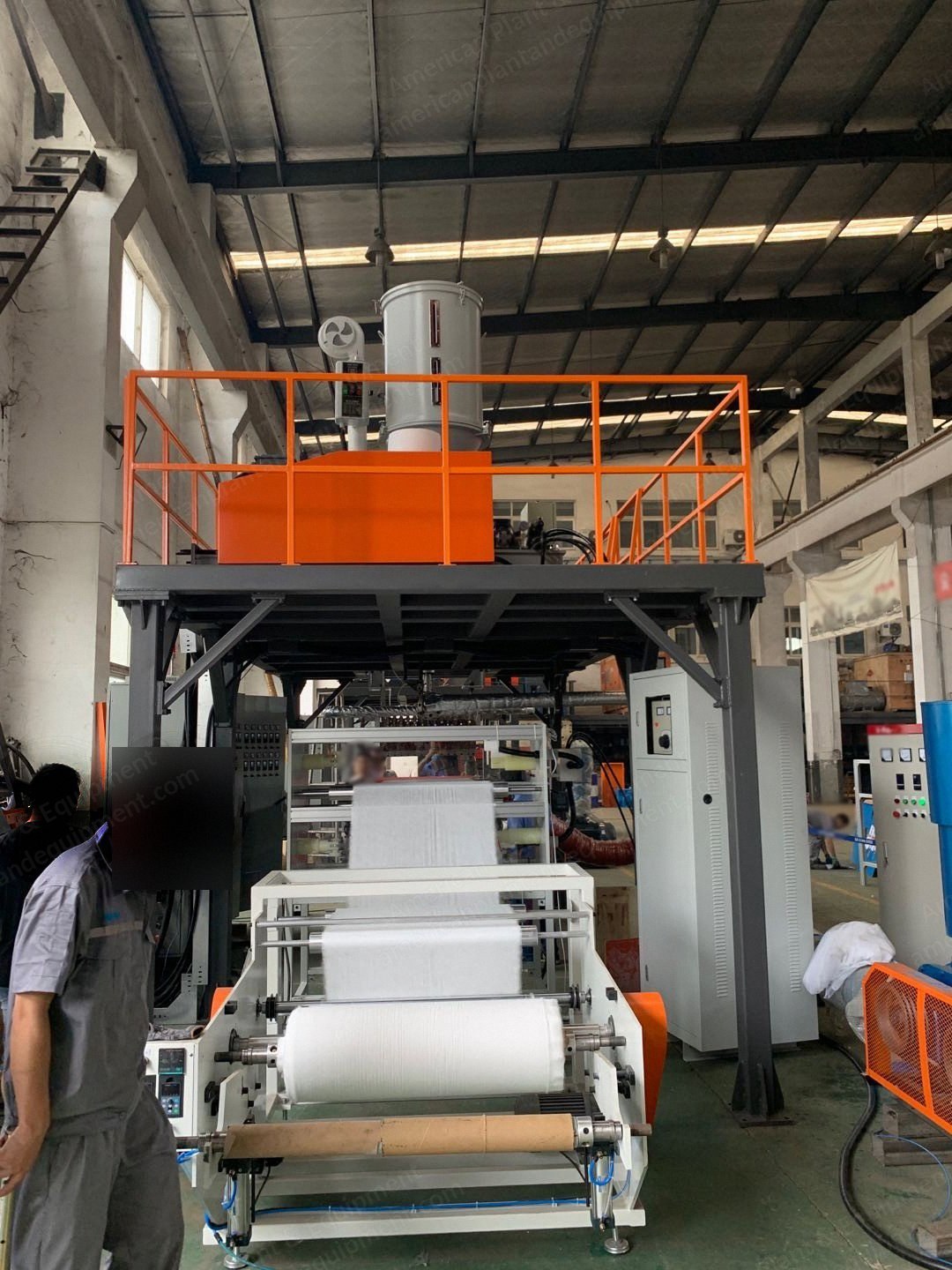

Description Overview Machine type: Meltblown Working width: 600 mm Effective size: 500 mm (175 x 3) Production speed: 0 to 50 m/min Product weight range: 20 to 80 gsm Max output: 300 to 400 kg/24 hours Production time: 7 days Specifications Extruder diameter: 75 mm Extruder motor: 30 kW Power (total): 200 kW Voltage: 220 volts and 50/60 Hz Dimension: 10000 x 4500 x 4000 mm Weight: 5 tons Quantity of containers needed: 1 x 40 Main Structure of the Equipment Automatic feeding machine and hot air drying hoPer: 100 kg/h, 1 set Screw extruder: GW75 type, 1 set Melt filter: special for melt blown, 1 set Melt flow channel: need heat preservation, 1 set Special melt-blown die head: vertical spray structure, need heat preservation, 1 set Screw type air compressor: 37 kW, 1 set Air heating furnace: 60 kW, 1 set Mesh receiver: 1 set Suction fan and pipeline device: 22 kW, 1 set Automatic slitting machine: 4 pcs, 1 set Friction winding machine: 1 set Electrical control system: RKC or Ormon temperature display, 1 set High voltage electret treatment device: 0 to 100 kV, 1 set Melt-blown die head cleaning furnace: 1 set
