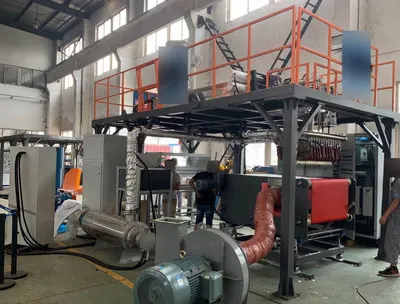

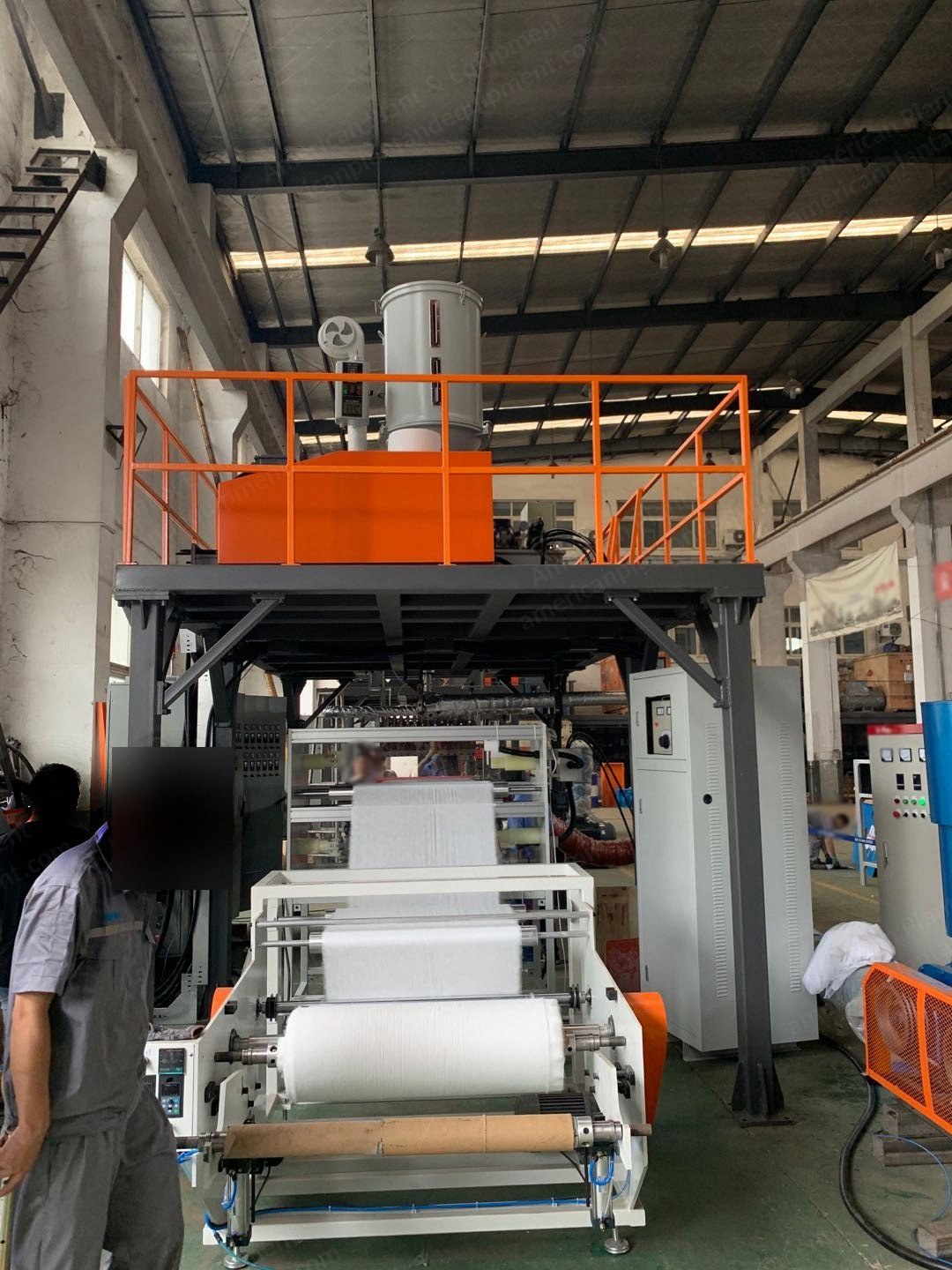

NovaStar, NN134, Meltblown Nonwoven Production Line, 800mm, 500 kg/24h (New)

NovaStar, NN134, Meltblown Nonwoven Production Line, 800mm, 500 kg/24h

Description

  1. Overview
    1. Machine type: Meltblown
    2. Working width: 800 mm
    3. Effective size: 700 mm (175 x 4)
    4. Resin: PP (melted 1500)
    5. Production speed: 0 to 50 m/min
    6. Extruder diameter: 75 mm
    7. Extruder motor: 30 kW
    8. Product weight range: 20 to 80 gsm
    9. Max output: 500 kg/24 hours
    10. Dimension: 16000 x 5000 x 5000 mm
    11. Weight: 18 tons
    12. Power (total kW): 180 kW
    13. Voltage: 220 volts and 50/60 Hz
    14. Production time: 10 days
  2. Specifications
    1. Screw extruder
      1. Model: GW 75 / 30
      2. Material: 38 CrMoAlA
      3. Barrel heating power: 18 kW
      4. Heater type: Ceramic heater
      5. Cooling fan: 0.12 kW double-shaft type
      6. Motor: 30 kW
      7. Motor type: AC direction connection
      8. Driver ABB: ABB inverter
      9. Designed speed: 20 to 70 r/min
      10. Barrel protection structure: With heat preservation cover
    2. Screen charger
      1. Structure type: Double-position column type
      2. Diving type: Hydraulic device, manual control
      3. Pressure sensor: Before filter is domestic
    3. Gear pump
      1. Model: 30 cc
      2. Control mode: ABB inverter control
      3. Driving motor: 3 kW
      4. Pressure: Before filter is domestic, after filter is GEFRAN
    4. Melt pipeline
      1. Material: Stainless steel seamless pipe, polishing inside
      2. Heating method: Electrical heating
      3. Heat preservation type: Rock wool lining, stainless steel cover
    5. Melt blown special die
      1. Die head length: 900 mm
      2. Spinneret hole length: 800 mm
      3. Spinneret hole diameter: 0.25 to 0.28 mm
      4. Spinneret hole L/D: 10:1
      5. Heating power: 12 kW
      6. Die spinneret direction: Vertical spray structure
    6. High pressure blower
      1. Blower type: High pressure roots blower
      2. Boost: 70 MPa
      3. Power: 37 kW
      4. Control type: Inverter control method to adjust the output pressure of roots fan
    7. Air heater
      1. Heating power: 90 kW
      2. Tank material: Stainless steel
      3. Heat preservation: Stainless steel closed structure lined with thermal insulation cotton
      4. Air heating rod: Resistant-type heating
    8. Mesh receiver
      1. Line speed: 0 to 50 m/min
      2. Mesh material: Teflon
      3. Mesh width: 1200 mm
      4. Driving structure: Rotary
      5. Spinneret adjust distance: 80 to 350 mm
      6. Driving power: 1.5 kW
    9. Slitter
      1. Knife qty: 5 pcs circular knife
      2. Size adjustment: Manual
    10. Winder
      1. Structure: Passive friction type
      2. Driving power: 1.5 kW
      3. Air shaft size: 3 inches
    11. High-voltage electret treatment
      1. Voltage input: 220 volts and 50/60 Hz
      2. Max voltage output: 100 kV
      3. Treatment width: 800 mm
    12. Melt blown die head cleaning device
      1. Heating furnace size: 800 x 800 x 1000 mm
      2. Heating power: 15 kW
