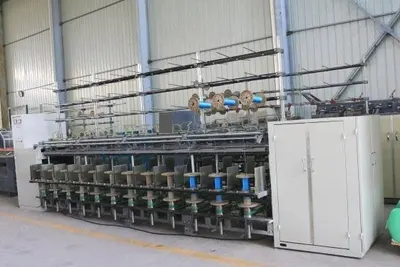

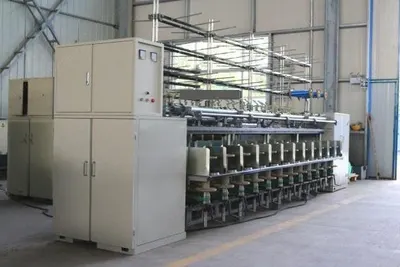

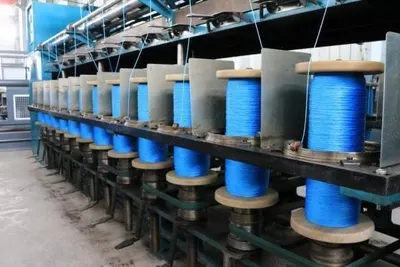

NovaStar, WN104, Ring Twister Machine, 16 Spindles, 300mm Traveler Ring Diameter, 300 to 500 rpm Spindle Speed (New)

NovaStar, WN104, Ring Twister Machine, 16 Spindles, 300mm Traveler Ring Diameter, 300 to 500 rpm Spindle Speed

Description

  1. Overview
    1. Quantity of spindle: 4 spindles per group, 4 groups, 16 spindles total
    2. Twisting direction: Z or S
    3. Suitable scope: 21 counts 5 strands to 180 strands yarn
    4. Suitable scope: 850 D to 36000 D fiber
    5. Suitable scope: 36 tex 21 to 90 strands twisting or twine
  2. Specifications
    1. Speed of spindle: 300 to 500 rpm
    2. Lifting movement of traveler ring: 300 mm
    3. Diameter of roller: 57 mm
    4. Distance of spindle: 560 mm
    5. Diameter of traveler ring: 300 mm
    6. Bobbin dimension (OD x ID x H1 x H2): Φ 250 x φ 22.5 x 305 x 345 mm
