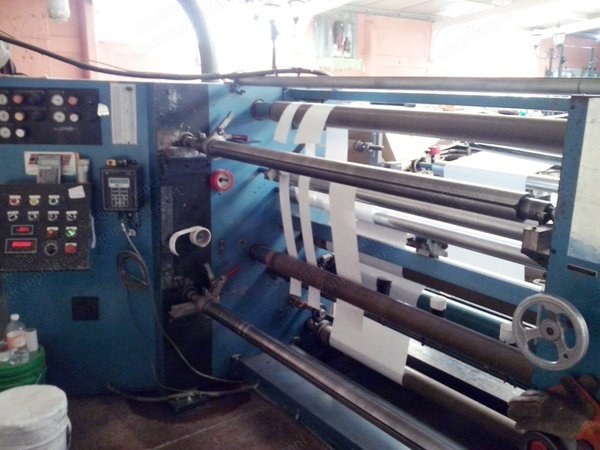

Conweb, Duplex Slitter Rewinder, 62" Width, 40" Unwind Diameter, 24" Rewind Diameter

Conweb, Duplex Slitter Rewinder, 62" Width, 40" Unwind Diameter, 24" Rewind Diameter

Description

  1. Overview
    1. Conweb duplex center winder
    2. Width: 62 in
    3. Rewind shafts: 3 in
    4. Maximum rewind diameter: 24 in
    5. Duplex rewind
  2. Rewind And Tension Control
    1. Core spacer differential rewind tension control
    2. All slit rolls have individual tension control
    3. Four zone individual tension control
    4. Can run four different slit widths at the same time
  3. Controls And Counters
    1. Predetermining footage counter and totalizer
  4. Slitting System
    1. Kiss shear cut with male and female knives
  5. Unwind Section
    1. Shaft type unwind with auto edge guiding
    2. Diameter unwind capacity: 40 in
    3. Air expanding unwind shaft: 3 in
    4. Splice table with pneumatic web clamps
