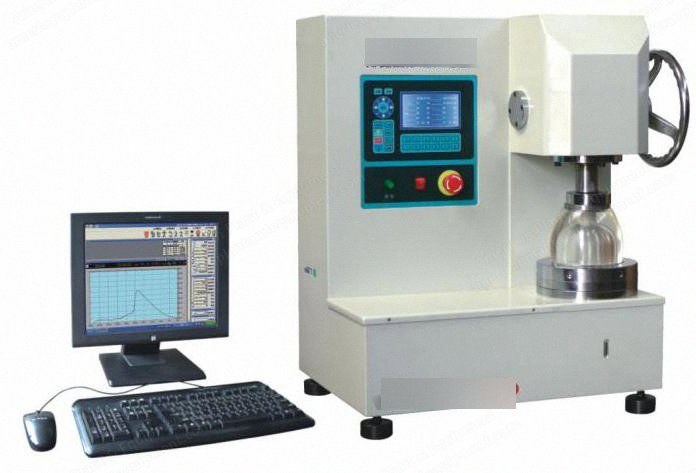

Scope of application: For various textiles, non-woven fabrics, leather and other materials, when the warp and weft and forces in all directions at the same time, the expansion force and expansion performance measurement (hydraulic elastic diaphragm method).
Related standards: GB/T 7742.1, FZ/T 60019, ISO 2960, ISO 13938.1-04, ASTM D3786, JIS 1018.6.17.
Specifications
Measuring range: 0-2 MPa / 0-10 MPa.
Minimum division value: 0.002 MPa.
Test area: 50 cm² (Φ79.8 mm); 7.3 cm² (Φ30.5 mm).
Thickness of elastic diaphragm: ≤2 mm.
Maximum expansion: 70 ± 0.02 mm.
Maximum bursting time: 99.9 ± 0.1 s.
Pressurization rate: 100 to 500 ml/min.
Output form: Print output, display output, support online communication.
Power supply: AC 220 V, 50 Hz, 800 W.
Dimensions: 770 × 450 × 760 mm.
Weight: 300 kg.
