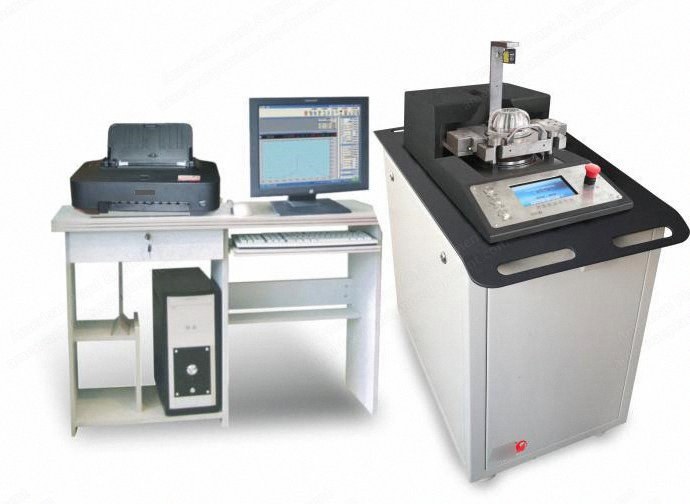

NovaStar, MC106, Electronic Burst Intensity Meter, 0.001 to 6.000MPa, AC220V, 500x870x1240mm (New)

NovaStar, MC106, Electronic Burst Intensity Meter, 0.001 to 6.000MPa, AC220V, 500x870x1240mm

Description

  1. Overview
    1. Scope of application: For various textiles, non-woven fabrics, leather and other materials, when the warp and weft and forces in all directions at the same time, the expansion force and expansion performance measurement (hydraulic elastic diaphragm method).
    2. Related standards: GB / T7742.1, FZ / T60019, ISO2960, ISO13938.1-04, ASTMD3786, JIS1018.6.17.
  2. Instrument Characteristics
    1. Gas pressurization, uniform pressurization speed, fast response, not limited by movement range.
    2. Relieve pressure quickly, no waiting time for return trip, double the experimental efficiency.
    3. Automatic sample clamping, pneumatic hydraulic pressure clamping system, easy and convenient operation, no slipping and no leakage.
    4. Microcomputer control, 7-inch color touch screen, menu operation, support for online communication, and bidirectional control.
    5. It has three test modes: constant speed, constant pressure and constant expansion.
    6. Laser ranging.
  3. Technical Parameters
    1. Measurement range: 0.001 to 6.000 MPa.
    2. Elastic diaphragm size: outer diameter: Φ140 mm; thickness: ≤2 mm.
    3. Test area: Φ79.8 ± 0.05 mm (50 cm²); Φ30.5 mm (7.3 cm²) (other area fixtures can be customized).
    4. Maximum expansion: 70 ± 0.02 mm.
    5. Maximum bursting time: 99.9 ± 0.1 s.
    6. Pressure rate: 100 ml/min, 200 ml/min, 300 ml/min, 500 ml/min.
    7. Output form: print output, display output, support online communication.
    8. Power supply: AC220V 50Hz 200W.
    9. Dimensions: 500 × 870 × 1240 mm (host L × W × H).
    10. Weight: about 150 kg.
