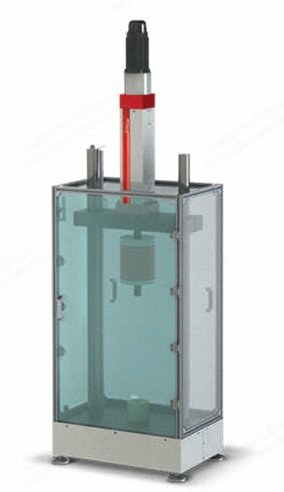

NovaStar, Bi-Axial Variant for Linear Axis, Electro-Mechanical and Linear Motor Testing

Name: NovaStar, Bi-Axial Variant for Linear Axis, Electro-Mechanical and Linear Motor Testing
Brand: NovaStar
SKU: DD-1161

‹ Go Back Next Product ›

Description

Overview
1. Technical solutions for electro-mechanical axis and for axis based on linear motors.
2. All solutions include a biaxial load cell.
3. Greater values available upon request.
Torque And Speed Specifications
1. Model BV10: max dynamic torque 10 Nm, max static torque 7.5 Nm, max test speed 400 rpm.
2. Model BV25: max dynamic torque 25 Nm, max static torque 20 Nm, max test speed 400 rpm.
3. Model BV50: max dynamic torque 50 Nm, max static torque 40 Nm, max test speed 300 rpm.
4. Model BV100: max dynamic torque 100 Nm, max static torque 80 Nm, max test speed 230 rpm.
5. Rotational absolute encoder integrated and included on all models.
Compatibility
1. Available for electro-mechanical axis: BV10 with EA05 and greater, BV25 with EA010 and greater, BV50 with EA030 and greater, BV100 with EA050 and greater.
2. Available for electro-dynamic axis: BV10 with UD02 and greater, BV25 with UD02 and greater, BV50 with UD04 and greater, BV100 with UD08 and greater.
Load Cell Specifications
1. Available load cell capacities: 0.1 kN, 0.5 kN, 1 kN, 2.5 kN, 5 kN, 10 kN, 25 kN, 50 kN, 100 kN.
2. Standard accuracy class is 1 (ISO 376).
3. Accuracy classes 0.5 and 0.0 available upon request.
Accessories
1. Portal structure for large product testing.
2. Two columns load frame.
3. Extensometer for static tests.
4. Control for two or more synchronized electro-mechanical axis.
5. Climatic temperature chambers integrated on the structure and managed by test center.
6. Remote control.
7. Wedge grips for tests on plane specimen.
8. Wedge grips for tests on cylindrical specimen.
9. Mechanical customized grips for materials and products mono-axial testing.
10. Mechanical customized grips for materials and products multi-axial testing.
11. Technical solutions for electro-mechanical axis and for axis based on linear motors for specific tests available upon request.

Additional Specifications

Specifications

Capacity	Up to 100 Nm dynamic torque, Up to 100 kN load cell
Integrated Encoder	Rotational absolute encoder integrated

Performance

Load Cell Fmax (kN)	0.1 kN
Max Dynamic Torque (Nm)	10 Nm
Max Static Torque (Nm)	7.5 Nm
Max Test Speed (RPM)	400 rpm
