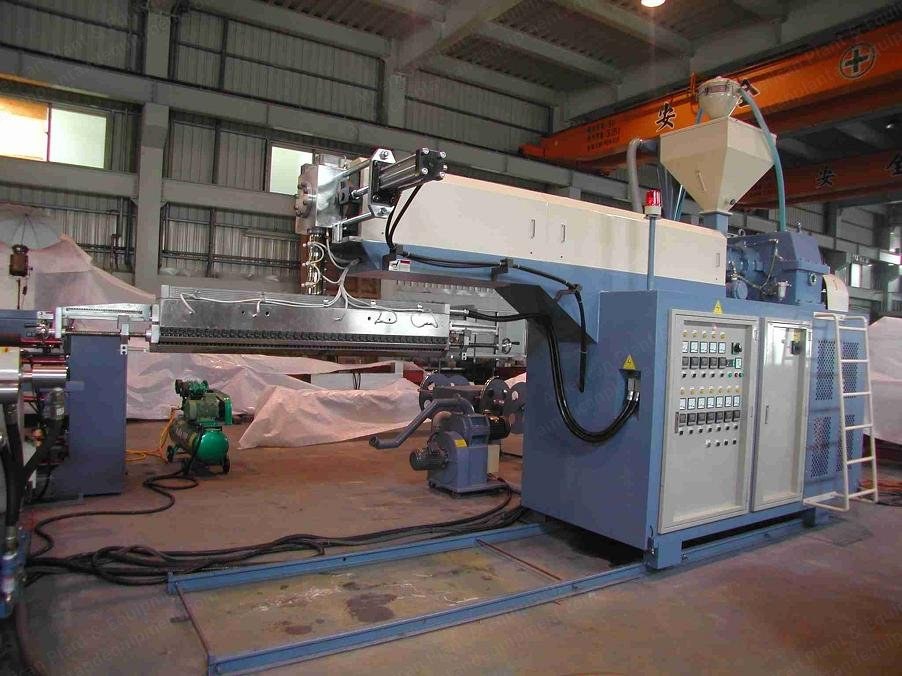

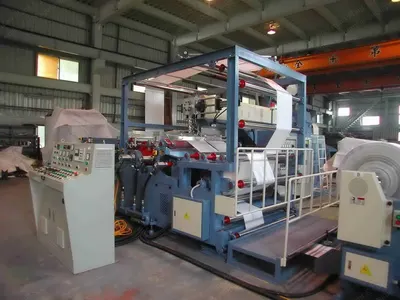

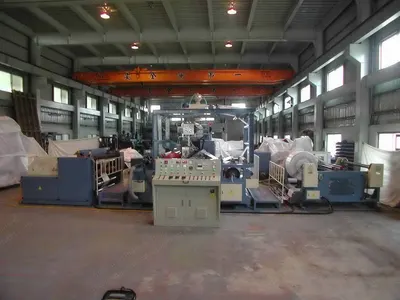

NovaStar, Double Sided Lamination Machine, 850-1550mm Width, 140-160kg/hr Capacity (New)

Overview

1. Single side coating of PP/HDPE woven cloth

2. Double side coating of PP/HDPE tubular woven

3. Material: PP, LDPE lamination grade material

Specifications

1. Production width: 850 mm to 1550 mm (single side)

2. Production width: 400 mm to 720 mm (double side)

3. Production thickness: 0.02 mm to 0.05 mm

4. Line speed: 25 m/min to 85 m/min (maximum speed: 100 m/min)

5. Output capacity: 140 kg/hr to 160 kg/hr (with turn-bar device)

Extruder

1. Gear box with oil cycle filter and cooling device

2. Screw diameter: 90 mm, L/D = 32/1

3. Screw material: SACM-645 (nitrided treatment, polished and chromed)

4. Barrel material: SACM-645 (nitrided treatment and polished)

5. Driving motor: 40 hp AC

6. Speed adjuster: Fuji inverter with reactor

7. Heating zone: 5 sets (PID meter + SSR control)

8. Heating capacity: 36 kW

9. Moving system: 1 hp brake motor

10. Vacuum autoloader

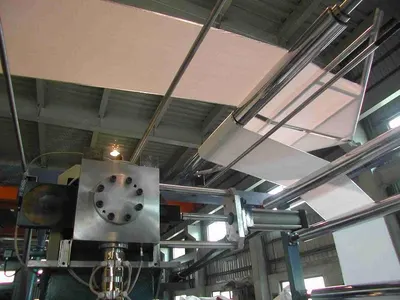

11. Hydraulic screen change (2 hp motor)

12. Plastic pressure meter

13. Electric panel

T-Die

1. T-die material: PDS-5

2. Width of die: 1750 mm

3. Heating zone: 5 sets (PID meter + SSR control)

4. Heating capacity: 30 kW

5. Width adjuster device

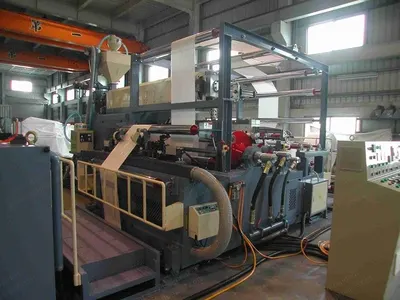

Unwinder Section

1. Maximum diameter width: 1200 mm x 1700 mm (L)

2. Auto tension controller (Nireco)

3. 2 x 20 kg powder brakes

4. Edge position controller

5. Connect pressure roller diameter: 140 mm x 1700 mm (L)

6. 3 unwinder 3-inch air shafts

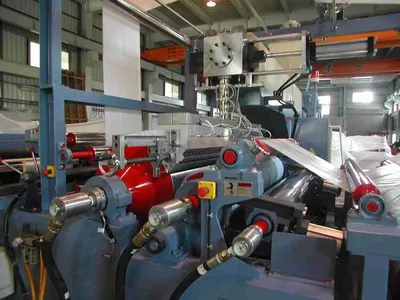

Laminating Section

1. Chiller roller diameter: 500 mm x 1700 mm (L), sand surface

2. Silicon roller diameter: 310 mm x 1700 mm (L)

3. Guide roller diameter: 100 mm x 1700 mm (L)

4. Expansion roller diameter: 115 mm x 1700 mm (L)

5. Pre-heater roller diameter: 352 mm x 1700 mm (L), heating capacity: 14 kW

6. Driving motor: 7.5 hp AC

7. Speed adjuster: Fuji inverter with reactor

8. 2 E.P.C cutting devices, 1/4 hp motor

9. Middle cutting device

10. Edge blower: 2 hp

11. Turn bar device for tubular woven

12. 3 Teflon tape devices

13. Corona surface treater capacity: 5 kW with guiding roller and fixer

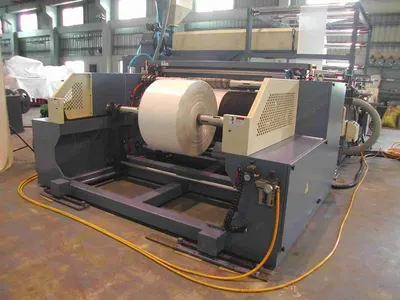

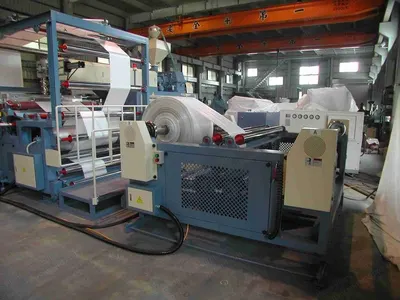

Winder Section Surface Friction

1. Winding roller diameter: 525 mm x 1700 mm (L)

2. Expansion roller diameter: 115 mm x 1700 mm (L)

3. Driving motor: 10 hp AC

4. Speed adjuster: Meiden inverter with reactor

5. Maximum diameter width: 1200 mm x 1700 mm (L)

6. Automatic cutting and roll change device

7. Winder 3-inch air shaft: 3 sets

Edge Yarn Reclaiming System

1. Crusher: 2 hp motor

2. Conveying blower: 3 hp motor

3. Driving motor: 1/2 hp motor

4. Store tank: 1 pc

Edge Yarn Winder Single Roll

1. Driving motor: 0.2 kg/m torque

2. Diameter: 520 mm x 350 mm (L)

Operation Electric Control Panel

1. Synchronous speed control (extruder + laminating + winding)

Included Equipment

1. 15 hp water chiller

2. 25 ton cooling tower

3. 3 hp water pump

4. 3 hp air compressor

5. Attached spare parts and tool box
