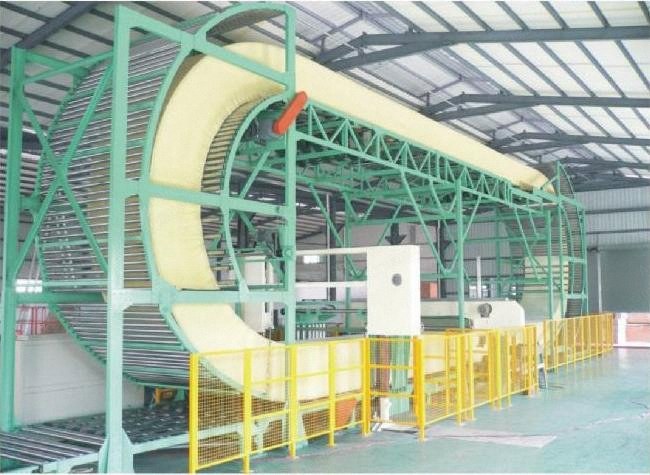

NovaStar, Looped Cutting Machine, 2100mm Working Width, 120m/min Cutting Speed, Siemens Servo System (New)

NovaStar, Looped Cutting Machine, 2100mm Working Width, 120m/min Cutting Speed, Siemens Servo System

Description

  1. Overview
    1. Foam cutting size: L48000~52000 x W1000~2200 x H1300 mm
    2. Foam cutting thickness: 2~30 mm
    3. Foam cutting density: 6~40 kg/m³
    4. Cutting speed: max. 120 m/min
    5. Cutting accuracy: Δ2~10 mm: ±0.1 mm, Δ11~30 mm: ±0.2 mm
    6. Foam sheet winding size: diameter 1800 x L1000~2300 mm
  2. Specifications
    1. Full Siemens servo system
    2. Full Siemens digital control system
    3. Total power: 50 kW
    4. Voltage: 480 V, 60 Hz, 3P
    5. Machine external size: L28000 mm x W6200 mm x H8000 mm
  3. Condition and Guarantee
    1. Guarantee: CE certificate, maintain for one year
