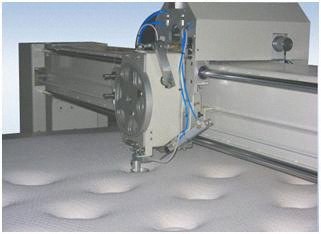

NovaStar, QL145, High Speed Computerized Single-Needle Quilting Machine, 2350x2350mm Quilting Width, 2500RPM, PLC Control (New)

NovaStar, QL145, High Speed Computerized Single-Needle Quilting Machine, 2350x2350mm Quilting Width, 2500RPM, PLC Control

Description

  1. Overview
    1. Automatic fabric feed
    2. Advanced outside rotary hook for sewing
    3. Automatic thread-break detector
    4. Presser foot adjustable to different thicknesses
    5. Equipped with a high capacity computer capable of handling complicated patterns
    6. Can run continuously or at intervals according to fabric and processing requirement
    7. 360 degree jump quilting with hundreds of patterns
    8. Maximum storage of patterns is 200
    9. Equipped with functions such as shift output counting, total output counting, pattern effect display, processing locus display, automatic thread cutting, automatic needle lifting, automatic stop in the event of thread-breakage
    10. Online vectorial angle correction and return parameter correction
    11. Japanese brand servo motors for complete precision
    12. Low noise, low vibration, reliable performance
    13. Special pattern-designing software and scanner-input available
    14. Automatic cloth feeding, pulling and cutting
  2. Technical Data
    1. Quilting width: 2350mm x 2350mm
    2. Quilting thickness: ≤70mm
    3. Needle model: 130/21
    4. Stitch length: 2mm to 6mm
    5. Rotating speed of needle: 2500rpm
    6. Capacity: 40 to 120 meters/hour
    7. Total power: 8.8kW
    8. Lubrication: fully automatic standard
    9. Control: PLC
    10. Dimensions (L x W x H): 8600mm x 3740mm x 1900mm
    11. Voltage: 3 phase, 480V, 50/60Hz
    12. Air consumption: approx. 0.5 cubic meters/hour at 6 bar
    13. Gross weight: 3500kg
