Dayton, Modified 15 Inch, Foam Drilling Machines (Electric and Pneumatic)

Description

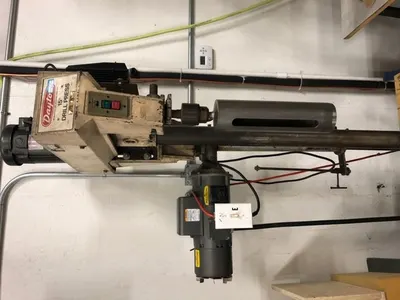

Item 001: Electric Drill Press
1. Modified Dayton 15" vertical press that moves up and down.
2. Spun by two Baldor motors.
3. With Dart controller to adjust the speed and a foot pedal to control up and down motion.
4. Can run both the 1" and 3.5" drill bits to their fullest travel capacity.
5. 5" drill bit can only go about 13" of the full 15" travel.

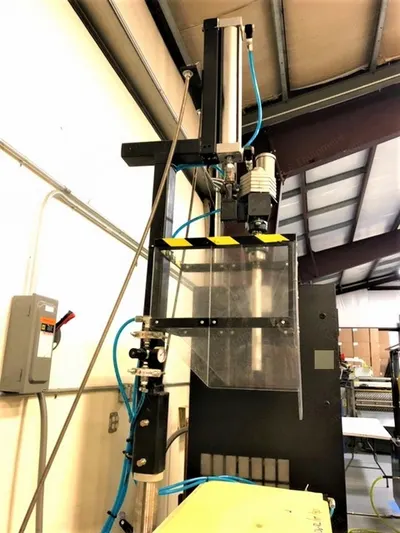

Item 002: Air Press
1. No brand available.
2. Spins and moves vertically via air pressure.
3. With regulator for speed control (but is typically run at approximately 80 psi to achieve maximum speed).
4. Air operated foot pedal to control up and down motion.
5. On/off valve on the right side of the machine activates the spinning motion.
6. Only needs to be connected to air supply.
7. Can only use 1" drill bit (does not handle weight of heavier drill bits well).
Drill Bits
1. Drill bits not included.
2. Currently running with 1", 3.5" and 5" drill bits.
3. 1" drill bit has 11" travel.
4. 3.5" drill bit has 13.5" travel.
5. 5" drill bit has 15" travel.

Capacity	15 inch travel
Drill Bits Compatibility	1 inch, 3.5 inch, and 5 inch drill bits (drill bits not included)
Item 001 Electric Drill	Modified Dayton 15 inch vertical press, two Baldor motors, Dart speed controller, foot pedal control
Item 002 Air Drill	Pneumatic air press, spins and moves vertically via air pressure, runs at approx 80 PSI, foot pedal control
