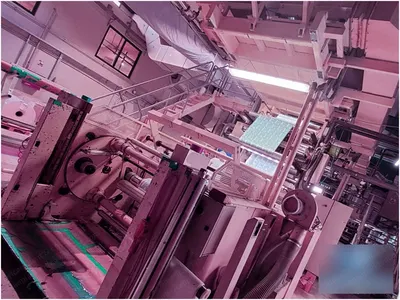

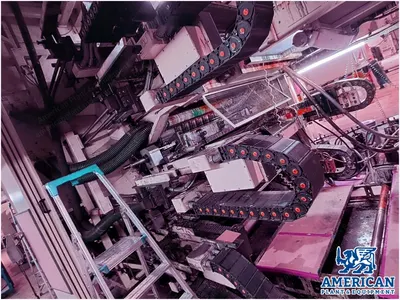

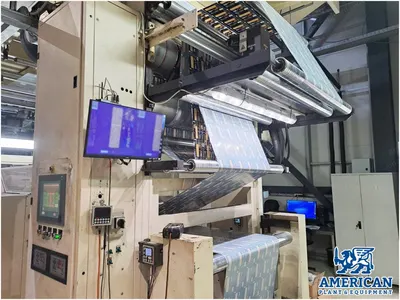

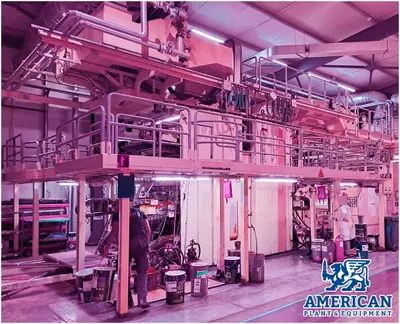

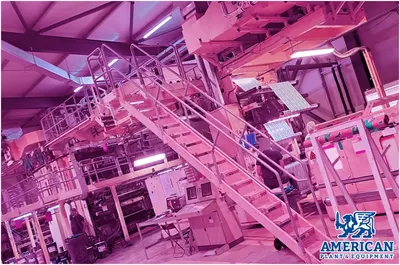

Schiavi, 2001, 8 Colors, 1320mm Web Width, 300 m/min

Schiavi, 2001, 8 Colors, 1320mm Web Width, 300 m/min

Description

  1. Overview

    1. Colors: 8

    2. Print possibilities: 4+4

    3. Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, paper, bio

    4. Gearless: No

    5. Fast sleeve change: Yes

    6. Fast sleeve anilox change: Yes

    7. Computer supervision: Yes

  2. Specifications

    1. Maximum speed: 300 meters per minute

    2. Print width: 1290 mm

    3. Minimum print repeat: 430 mm

    4. Maximum print repeat: 1200 mm

    5. Unwinder type: Double turret automatic flying splice

    6. Winder type: Double turret automatic flying splice

    7. Maximum reel diameter unwinder: 800 mm

    8. Maximum reel diameter winder: 800 mm

    9. Drying: Thermal oil

    10. Video camera: Yes (Fife)

    11. Corona treatment: Yes (Cason) for conductive and non-conductive materials

    12. Viscosity control: Gama (not in use, has to be repaired)

    13. Inking system: Ceramic anilox + chambered doctor blades

    14. Web width mm: 1320

    15. Viscosity control: Gama (requires repair)

  3. Condition

    1. Checked in 2022 by Bobst technicians, both mechanical and electrical parts

  4. Included

    1. Anilox sleeves: 23 pieces (2 x 80 ln/cm, 2 x 100 ln/cm, 2 x 120 ln/cm, 2 x 140 ln/cm, 1 x 160 ln/cm, 1 x 180 ln/cm, 1 x 200 ln/cm, 2 x 220 ln/cm, 1 x 270 ln/cm, 5 x 360 ln/cm, 4 x 380 ln/cm)

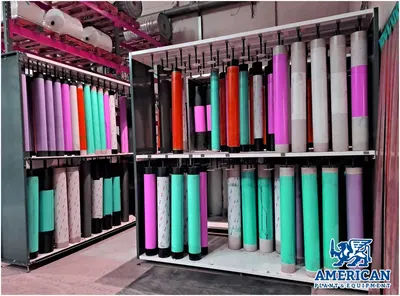

    2. Printing sleeves: 40 pieces (8 x 850, 8 x 1000, 8 x 1020, 8 x 1050, 8 x 1150)

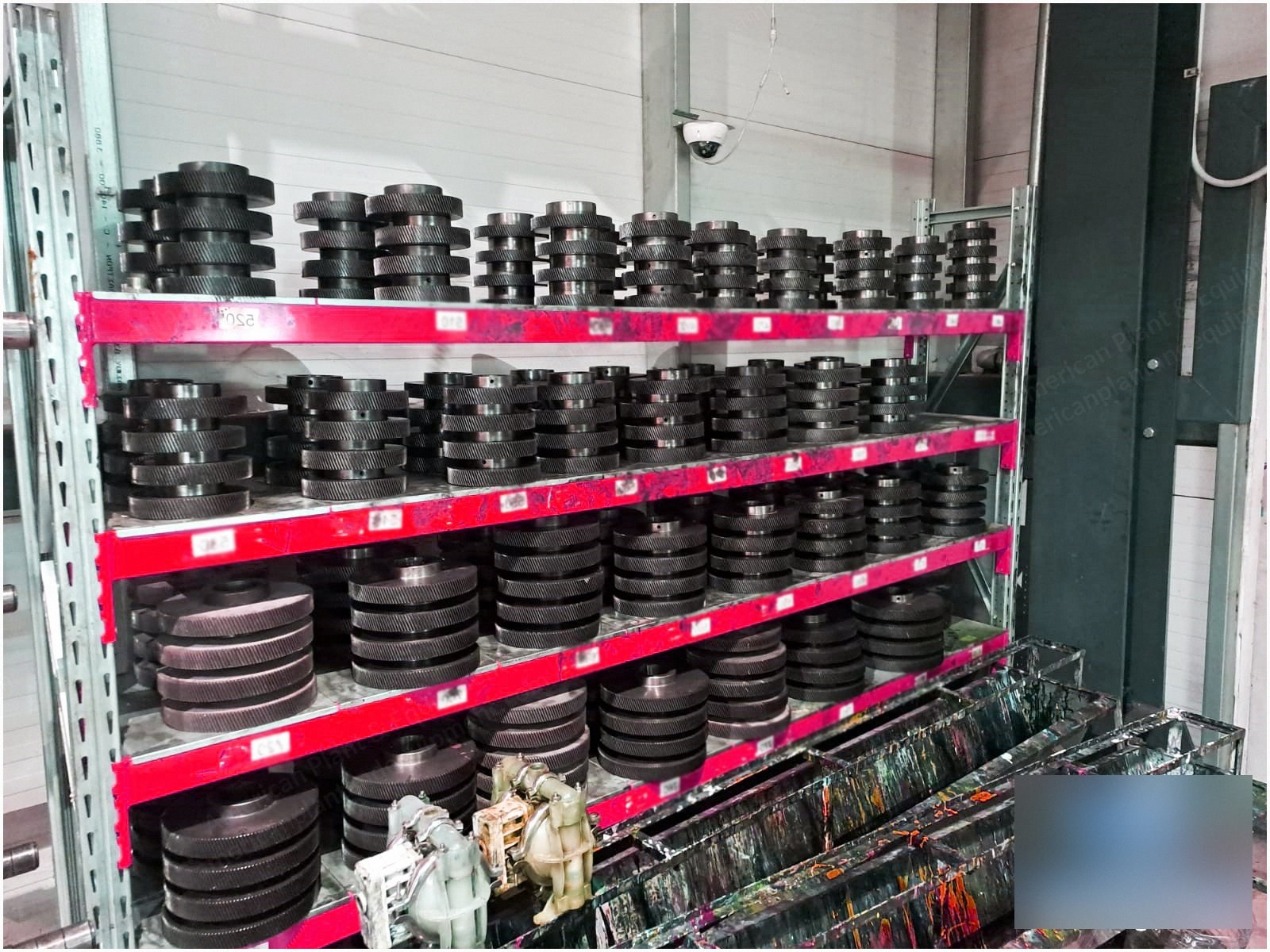

    3. Print cylinders: 8 for sleeves more than 700 mm repeat and 8 adaptors for sleeves more than 900 mm repeat
