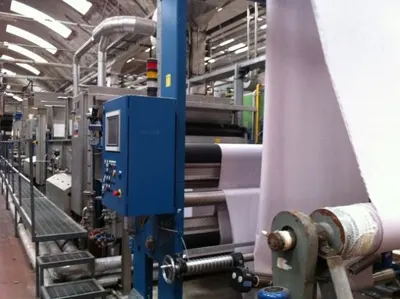

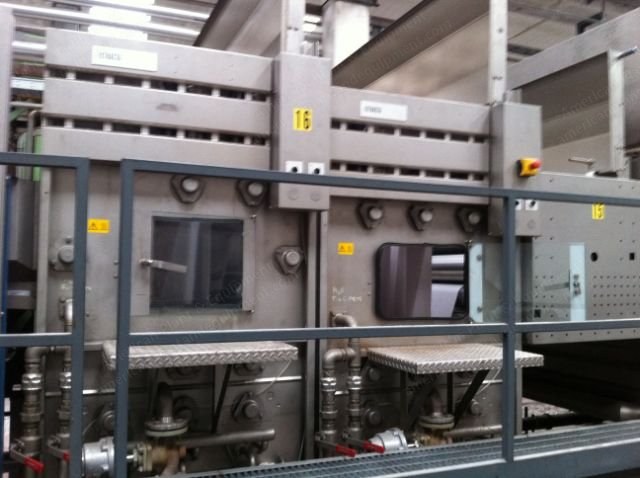

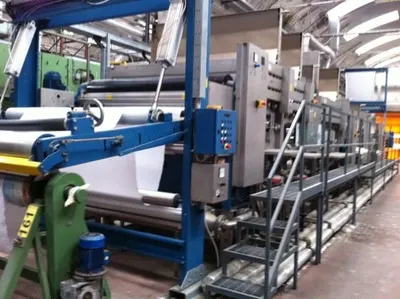

Benninger, ML2 Dimensa - Extracta LH 2000, 2008, 2000mm Working Width, Continuous Mercerizing Line

Benninger, ML2 Dimensa - Extracta LH 2000, 2008, 2000mm Working Width, Continuous Mercerizing Line

Description

  1. Overview
    1. Make: Benninger
    2. Model: ML2 Dimensa - Extracta LH 2000
    3. Year: 2008
    4. Available for fabrics: cotton 100%
    5. Fabric weight range: 110-450 g/mt2 (average 250 g/mt2)
  2. Technical Specifications
    1. Working width: 2000 mm
    2. Cylinders width: 2200 mm
    3. Average production speed: 28-38 m/min
    4. Tension (phase-phase): 3 x 400 V +/- 10%
    5. Frequency: 50 Hz +/- 2%
    6. Main tension: 24 VDC / 230 VAC
    7. Total power: approx. 77 kW
    8. Power installed: approx. 130 kVA
    9. Water pressure: min. 2 bar / max. 3 bar
    10. Steam saturated: 4.5 bar
    11. Air under pressure: min. 7 bar / max. 12 bar
    12. Stainless steel as for Dimensa: DIN 1.4301 (AISI 304) - DIN 1.4404 (AISI 316L)
    13. Noise during running: not more than 80 dB (A)
  3. Mercerizing Reaction / Impregnation Time
    1. Fabric weight 100 g/m2: impregnation/reaction time 24 sec, average speed 38 m/min
    2. Fabric weight 200 g/m2: impregnation/reaction time 26 sec, average speed 35 m/min
    3. Fabric weight 300 g/m2: impregnation/reaction time 30 sec, average speed 30 m/min
    4. Fabric weight 400 g/m2: impregnation/reaction time 34 sec, average speed 28 m/min
  4. Fabric Capacity
    1. Impregnation/reaction: 14 m
    2. Stabilisation: 8 m
    3. Neutralisation and washing: 62 m
  5. Equipment Included
    1. Fabric entrance devices
    2. 1 soaking tank squeezing group, high efficiency, linear pressure max. 500 N/cm
    3. 1 double chamber closed for intensive impregnation for mercerizing, fabric capacity 14 m
    4. 1 squeezing group high efficiency for linear pressure max. 500 N/cm
    5. 1 close chamber for relaxing with 8 m fabric capacity
    6. 1 squeezing group high efficiency, linear pressure max. 500 N/cm
    7. 1 closed chamber washing, type LH-DA7, with double pass of fabric, capacity 32 mts
    8. 1 closed chamber washing, type LH-D3C, with double pass of fabric, capacity 15 mts
    9. 1 closed chamber washing, type LH-D3C, with double pass of fabric, capacity 15 mts
    10. 1 closed chamber washing, type LH-DA3, with double pass of fabric, capacity 13 mts
    11. 1 group of squeezing high efficiency, linear pressure max. 500 N/cm
    12. Fabric exit devices with batcher, max. diameter 2000 mm
