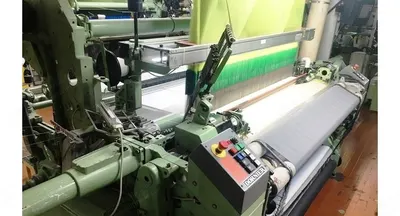

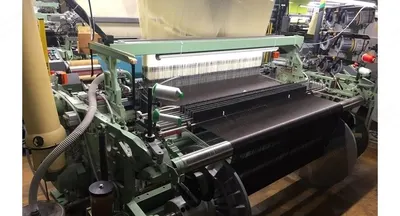

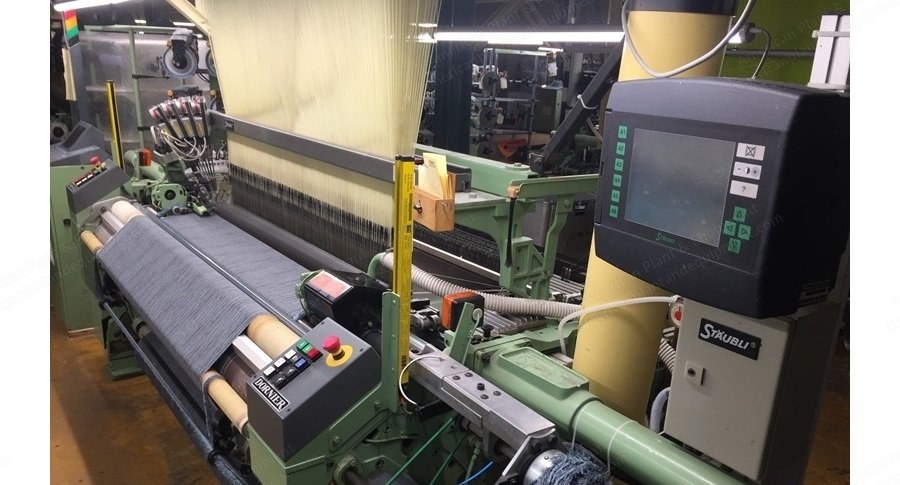

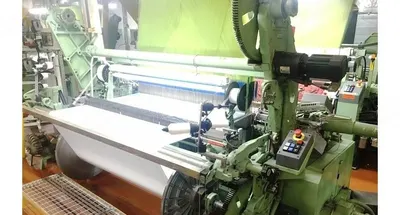

Dornier, HTVS8/J and HTVS16/J, 1995 to 2005, Width 2000mm and 1900mm, 8 Colors, Staubli Jacquard CX-880

Dornier, HTVS8/J and HTVS16/J, 1995 to 2005, Width 2000mm and 1900mm, 8 Colors, Staubli Jacquard CX-880

Description

  1. Machine 1
    1. Model: HTVS16/J
    2. Width: 2000 mm
    3. Year: 1999
    4. 8 ECS color selector (4 installed)

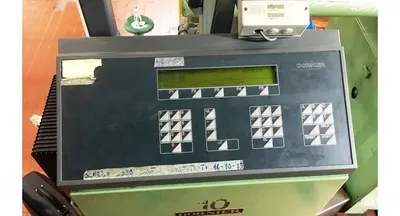

    5. Dialog panel at 2
    6. Electronic let-off and take-up

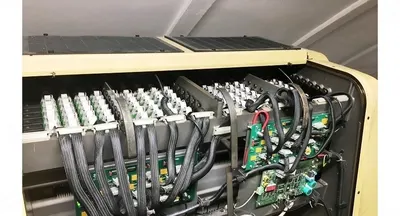

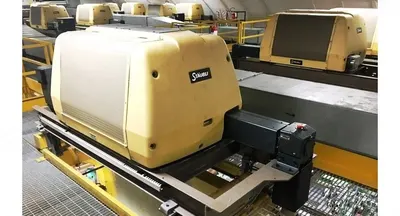

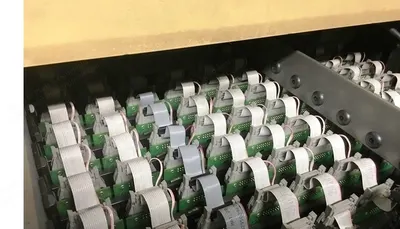

    7. With Staubli jacquard CX-880/2688 hooks (2400 installed), year 2005
    8. 4 weft feeders
    9. 1 beam
    10. 1 cloth roller
    11. 1 harness
    12. Droppers
    13. No gantry
  2. Machine 2
    1. Model: HTVS16/J
    2. Width: 1900 mm
    3. Year: 1995
    4. 8 colors installed
    5. Dialog panel at 1
    6. Electronic let-off and take-up
    7. Upper double beam
    8. Equipped with Staubli jacquard CX-880/2688 (2400 installed), year 2005
    9. Controller JC5, modules M4
    10. 4 weft feeders
    11. 2 beams
    12. 1 batching motion
    13. Droppers on loom
    14. 1 harness
    15. No gantry
