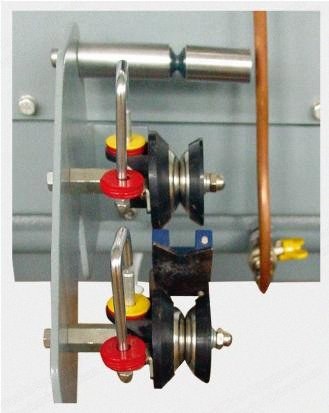

Yarn Singeing Machine, 80 Spindles, 1200 m/min, 152mm Traverse (New)

Yarn Singeing Machine, 80 Spindles, 1200 m/min, 152mm Traverse

Description

  1. Overview

    1. Yarn speed: up to 1200 m/min

    2. Suitable for high count yarn singeing machine

    3. Two level tension control device

    4. Combustion device

    5. Dust removing device

    6. Constant pressure in high speed winding system

    7. Interface

    8. Photoelectric probe of yarn

    9. Moving blowing suction system

    10. Optional parts: loose edge device

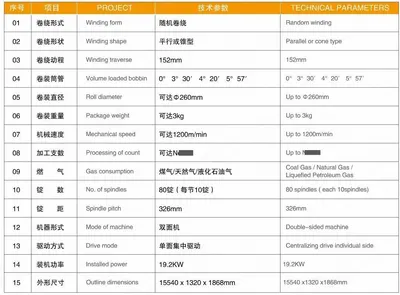

  2. Specifications

    1. Winding form: random winding

    2. Winding shape: parallel or cone type

    3. Winding traverse: 152 mm

    4. Volume loaded bobbin: 0°, 3°30', 4°20', 5°57'

    5. Roll diameter: up to 260 mm

    6. Package weight: up to 3 kg

    7. Mechanical speed: up to 1200 m/min

    8. Processing of count: up to Ne 180

    9. Gas consumption: coal gas / natural gas / liquefied petroleum gas

    10. Number of spindles: 80 spindles (each 10 spindles)

    11. Spindle pitch: 326 mm

    12. Mode of machine: double-sided machine

    13. Drive mode: centralizing drive individual side

    14. Installed power: 19.2 kW

    15. Outline dimensions: 15540 mm x 1320 mm x 1868 mm
