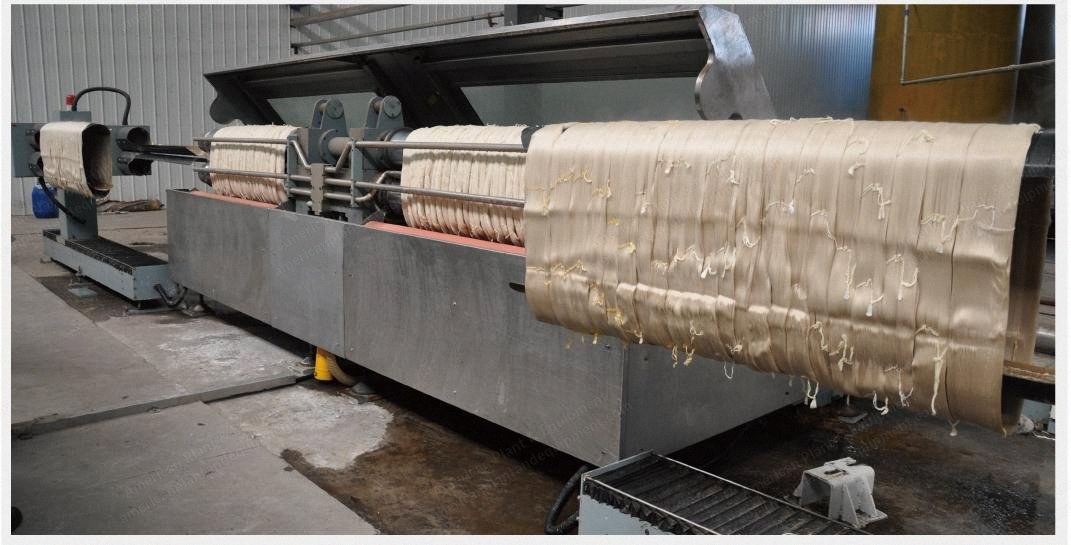

NovaStar, DG394, Automatic Hank Mercerizing Machine, 54 inch (1370mm) Nominal Yarn Frame, 12kg Capacity (New)

NovaStar, DG394, Automatic Hank Mercerizing Machine, 54 inch (1370mm) Nominal Yarn Frame, 12kg Capacity

Description

  1. Overview
    1. Epoxy coated rack
    2. 2 pair of mercerized roller
    3. 2 stainless steel base slot / washing trough
    4. Stainless steel cover
    5. Intelligent servo hydraulic system
    6. Mercerizing process management system
    7. Applicable to all types of cotton
  2. Specifications
    1. Nominal yarn frame – 54 inches (1370 mm)
    2. Hank yarn maximum range – 45-66 inches (1160-1530 mm)
    3. Mercerized workload – 12 kg (maximum)
    4. Each cycle – 6 minutes
    5. Maximum tension – 70000 kg
    6. Roll pressure maximum – 19 kg/cm²
    7. Spinning count – 1-160 s
    8. Installed capacity – 14 kW
    9. Outline dimensions – 11180 mm x 3200 mm x 2800 mm
  3. Optional Parts
    1. Automatic yarn loading / unloading device
    2. Caustic soda concentration automatic control system
    3. Automatic temperature control system of caustic soda
