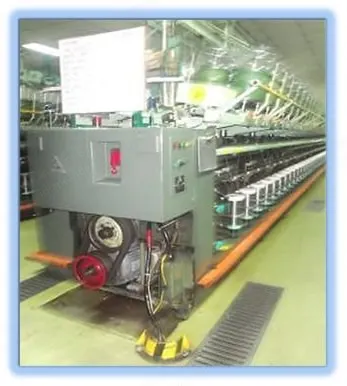

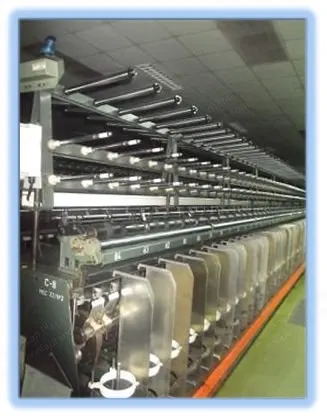

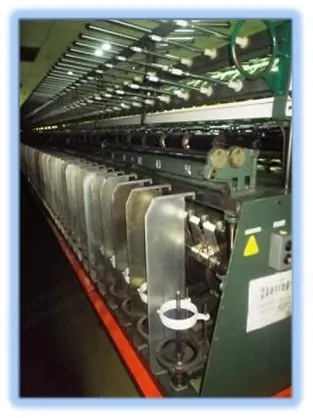

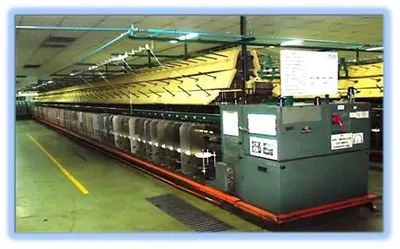

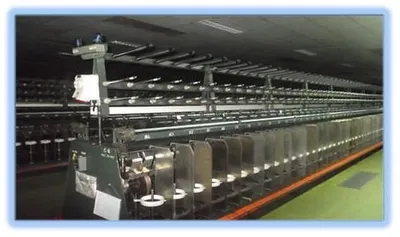

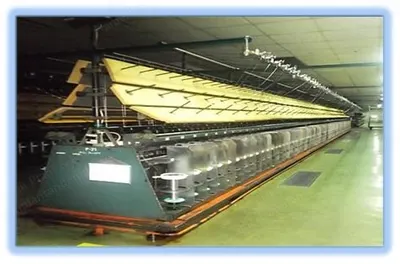

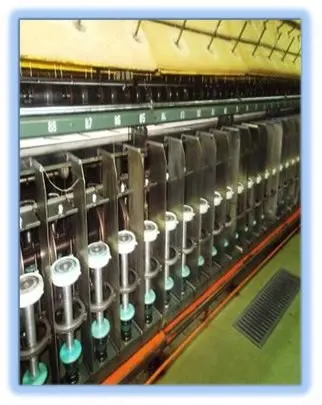

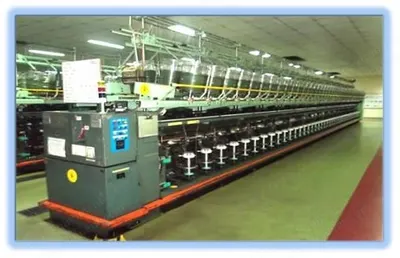

Saurer Allma, AZB 200/12", 84 Spindles, 400mm Spindle Gauge, 140mm Ring Diameter, 45 kW

Saurer Allma, AZB 200/12", 84 Spindles, 400mm Spindle Gauge, 140mm Ring Diameter, 45 kW

Description

  1. Overview
    1. Saurer Allma, Germany
    2. AZB ring twister for tyre cord: SADC
    3. Model: AZB 200/12"
    4. Number of ply: produces one/two/three ply yarn
    5. Quantity: 23 nos.
  2. Specifications
    1. Number of spindles: 84 spindles per machine
    2. Spindles per frame: 12 nos
    3. Spindle gauge: 400mm
    4. Ring diameter: 140mm
    5. Spindle length: 12 inch
    6. Motor capacity: 45 kW-AC
  3. Performance and Output
    1. Machine speed: 5800rpm
    2. Take up weight: 2.1 kg/bobbin
    3. Bobbin length: 12 inch (bobbin barrel length)
    4. Production capacity: 500kgs/day (assumption: 1,260d 2ply 400tpm)
