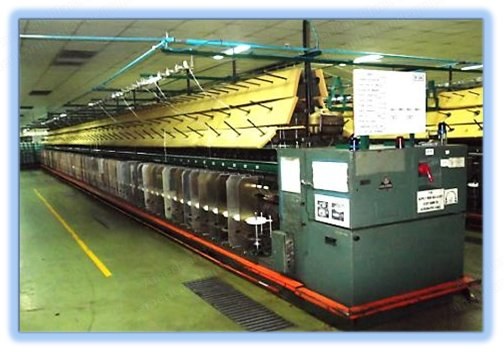

Saurer Allma, AZB 200/12", Ring Twisters for Tyre Cord, 200mm Spindle Gauge, 140mm Ring Diameter

Saurer Allma, AZB 200/12", Ring Twisters for Tyre Cord, 200mm Spindle Gauge, 140mm Ring Diameter

Description

  1. Plyer Machines
    1. Manufacturer: Saurer-Allma, Germany
    2. Model: AZB 200/12"
    3. Number of spindles: 180 spindles per machine
    4. Spindles per frame: 12
    5. Ply: Produces one-ply yarn
    6. Spindle gauge: 200 mm
    7. Ring diameter: 140 mm
    8. Spindle length: 12 in
    9. Motor capacity: 45 kW AC
    10. Take-up weight: 2.1 kg per bobbin
    11. Bobbin length: 12 in (bobbin barrel length)
    12. Production capacity: 600 kg per day (assumption: 1260d 400 tpm)
    13. Machine speed: 6350 rpm
    14. Total quantity: 13 machines
  2. Cabler Machines
    1. Manufacturer: Saurer-Allma, Germany
    2. Model: AZB 200/12"
    3. Number of spindles: 168 spindles per machine
    4. Spindles per frame: 12
    5. Ply: Produces one, two, or three-ply yarn
    6. Spindle gauge: 200 mm
    7. Ring diameter: 140 mm
    8. Spindle length: 12 in
    9. Motor capacity: 45 kW AC
    10. Take-up weight: 2.1 kg per bobbin
    11. Bobbin length: 12 in (bobbin barrel length)
    12. Production capacity: 1000 kg per day (assumption: 1260d 2-ply 400 tpm)
    13. Machine speed: 6350 rpm
    14. Total quantity: 8 machines
