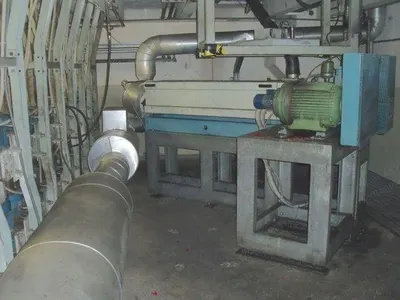

Barmag, PES HOY Spinning Unit, 1998, 12 Spinning Positions, 48 Yarn Ends, 45-110 Dtex, 2500-7000 m/min

Barmag, PES HOY Spinning Unit, 1998, 12 Spinning Positions, 48 Yarn Ends, 45-110 Dtex, 2500-7000 m/min

Description

  1. Overview
    1. Machine type: 9e10 / 24 d, sp56/8, cw7t-1200/8 bcas

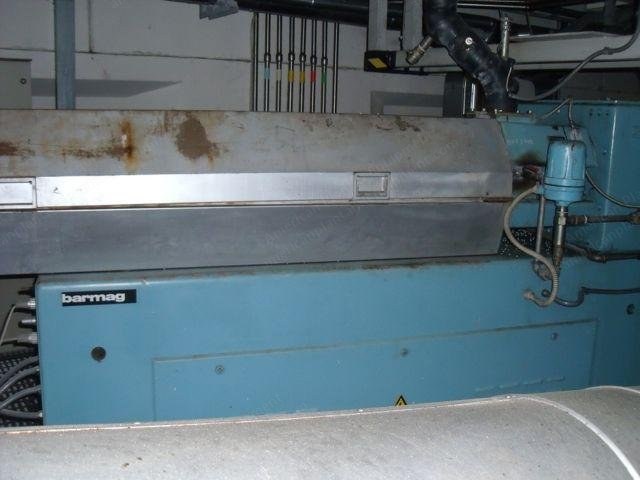

    2. Spinner extruder model: 9e 10

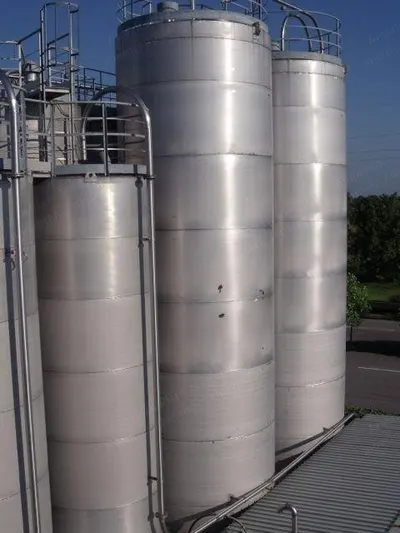

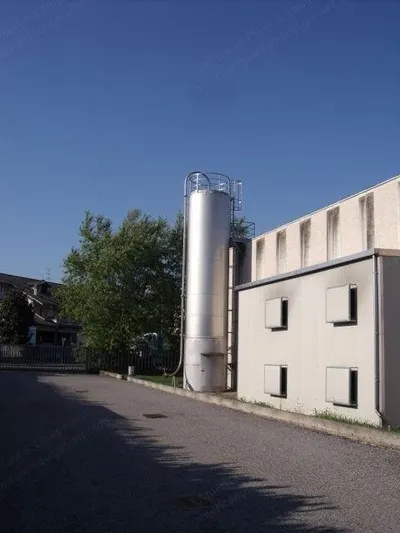

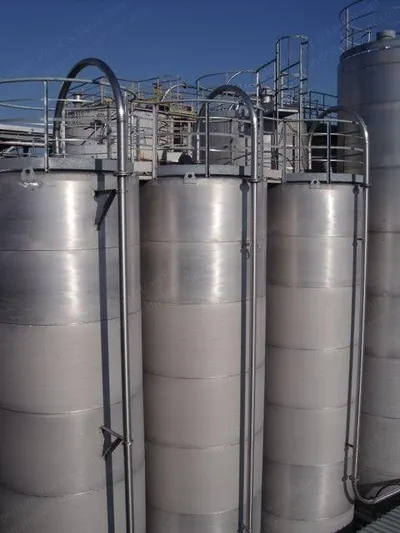

    3. Complete unit with silos, complete installation, etc.
  2. Specifications
    1. Final titer range: 45 dtex / 12 filaments
    2. 75 dtex, 24/36/48 filaments
    3. 110 dtex, 36/48 filaments
    4. Number of spinning positions: 6 per machine, total 12
    5. Yarn ends: 8 per position, 48 per machine
    6. Bobbin volume: 16.9 at 440 mm bobbin diameter
    7. Spacing: 1400 mm
    8. Cross spacing: without
    9. Chips temperature on extruder inlet: 90 to 130 degrees celsius
    10. Melt viscosity: 250 pa.s at 290 degrees celsius
    11. Melt temperature at extruder outlet: 295 degrees celsius
    12. Winding speed (mechanically): 2500 m/min to 7000 m/min
    13. Supply voltage: 380 v 50 hz
    14. Electric installation: en/de/iec
  3. Condition
    1. Complete unit with silos, complete installation, etc.
