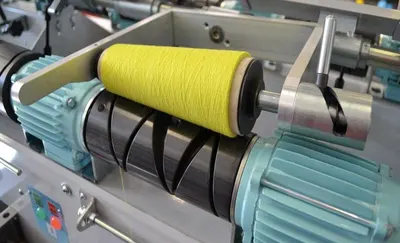

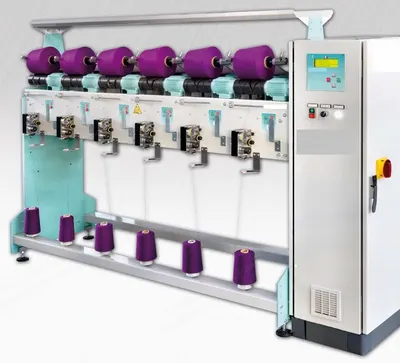

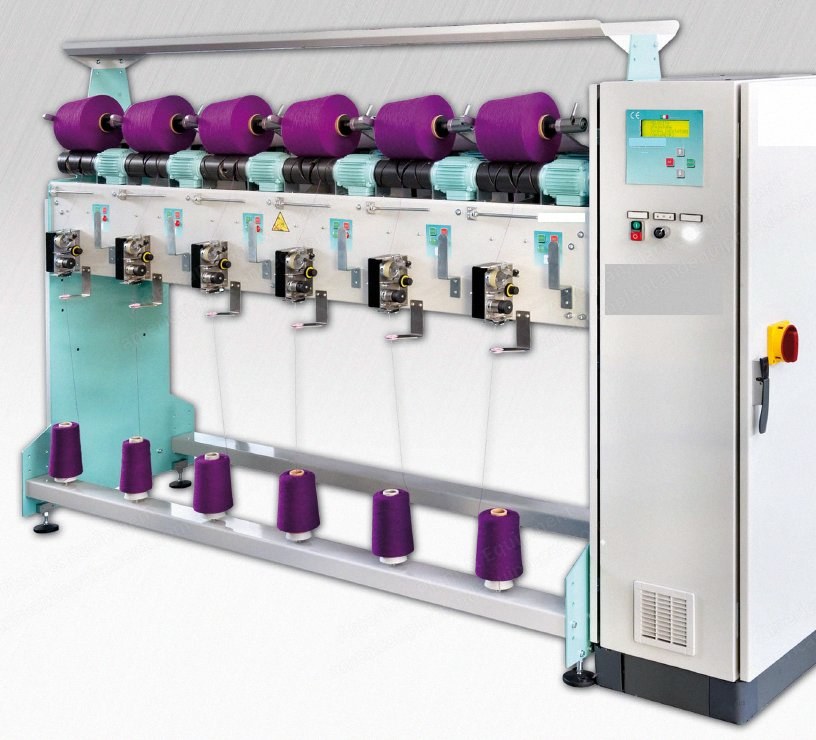

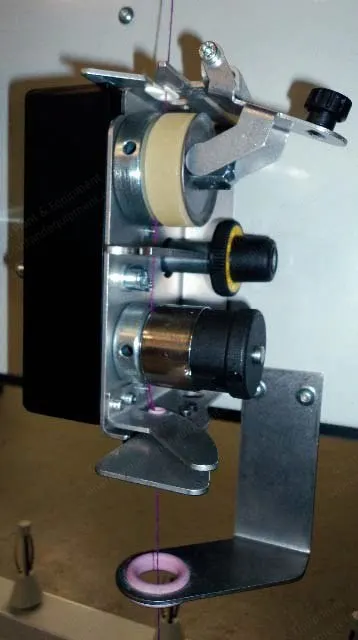

Description Overview Vertical threading machine Machine configuration up to 96 spindles with programmable control unit with digital display showing production and machine operational data Can simultaneously run at two different speeds and with two different lots of yarn Individual high precision electronic meter counter per spindle Specifications Yarn traverse 6" (152 mm) Conicity 0°00' - 3°30' - 4°20' - 5°57' Package diameter up to 290 mm maximum Feeding package diameter up to 300 mm maximum Motorization: individual AC coaxial motor per spindle Power supply: 400 V, 3 phase, 50/60 Hz Absorption: 0.09 kW per spindle Speed from 250 to 1200 m/min Grooved drums available: Ø 82 mm, 2.5 turns variable pitch, crossover angle 17°; Ø 95 mm, 2 turns variable pitch, crossover angle 20° Weights: basic unit of 6 spindles: 225 kg; double sided 12 spindles unit: 265 kg; control unit: 145 kg Machine Configuration From 6 up to 60 spindles single sided (6 spindles per unit) From 12 up to 96 spindles double sided (12 spindles per unit) Features Gas controlled arm pressure to accurately control the package density tailstock with spring for axial compensation Counter rotating motorized waxing device Self-cleaning motorized yarn tensioner Optical yarn detection sensor Micrometric slub catcher Programmable control unit with digital display showing production and machine operational data Electronic anti-patterning system programmable by the control panel Individual AC coaxial motor per spindle run by inverter Start/stop button Under machine creel with universal bobbin holder Overhead package holder Upon request, the CA winder can be supplied with overhead trolley blower, Mesdan ATS splicer and oiling device
