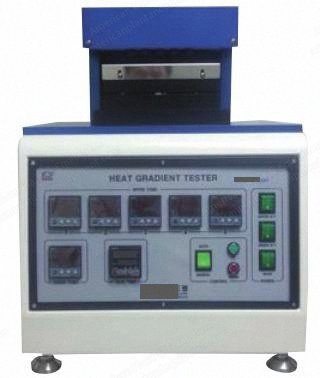

NovaStar, GL175, Heat Gradient Tester, 5 Channels, RT-300C, 220V

NovaStar, GL175, Heat Gradient Tester, 5 Channels, RT-300C, 220V

Description

  1. Overview
    1. Measures samples for heat sealing under controlled temperature, pressure and time conditions.
    2. Precise temperature controlled with PID.
    3. On request, a recorder indicating the change of temperature can be installed.
    4. Various approaches can be done by changing test conditions of temperature, pressure and time.
    5. 5 channel head and 1 channel head are available and exchangeable to be installed.
  2. Applications
    1. Film
    2. Fibre
    3. Coating
  3. Specifications
    1. Test channel: 10 w x 25 d mm, 5 ea
    2. Temperature range: rt-300°c (controllable separately)
    3. Temperature accuracy: ± 0.2°c
    4. Pressure capacity: max. 10 kg/cm² (controllable)
    5. Timer: 0-99.9 sec (0.1 sec step)
  4. Power
    1. 220 vac, 50/60 hz
  5. Dimensions
    1. Width: 435 mm
    2. Depth: 375 mm
    3. Height: 585 mm
