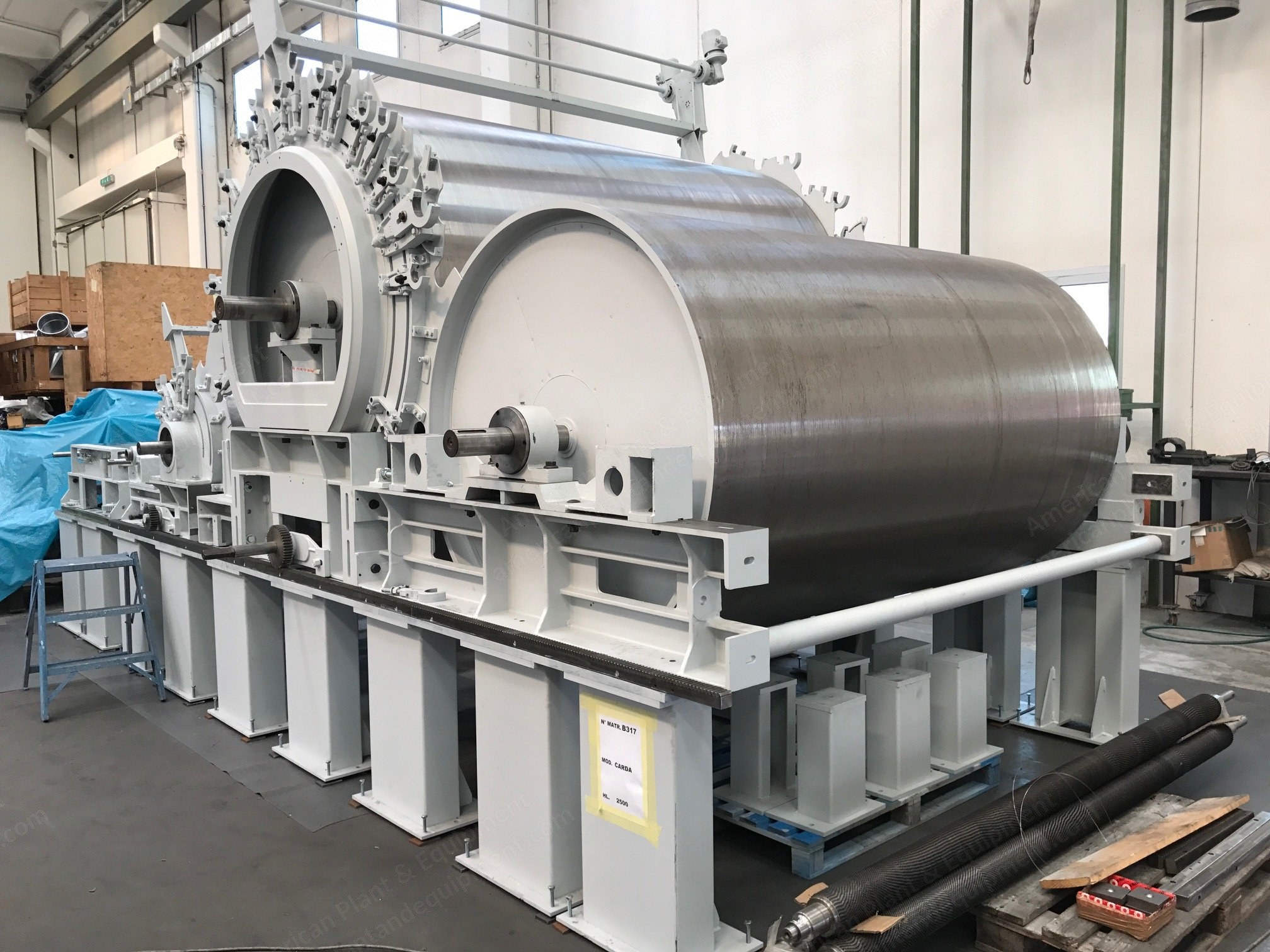

Description Overview Hopper feeder working width 2500 mm, model BCV Card working width 2500 mm, model SC 70-180 Silo Collecting chamber Aeration grid Introduction rolls Hopper Feeder Feeding conveyor in PVC Spiked vertical conveyor in PVC with pins Equalizing roll, complete of combs with pins Unloading roll, complete of PVC strips Compacting Volumetric Area Compacting wall, to compact the material Sliding wall in plexiglas Introduction rolls Motorization of Hopper Feeder AC motors 0.55 + 0.55 kW: fixed speed – introduction rolls AC motor 0.25 kW: variable speed by inverter – feeding conveyor AC motor 1.1 kW: variable speed by inverter – equalizing roll AC motor 2.2 kW: variable speed by inverter – spiked vertical conveyor AC motor 1.1 kW: fixed speed – unloading roll AC motor 0.37 kW: fixed speed – volumetric chamber Card Introduction Group Feed rolls with wire Licker-in roll Ø400 with wire Metal detector to check the metallic part inside the bat Card Breast Group Main roll Ø700 with wire 2 couples of worker Ø220 / stripper Ø140 with wire Card Transfer Group Transfer roll Ø500 with wire Card Carding Group Main roll Ø1800 with wire 5 couples of worker Ø230 / stripper Ø85 with wire Aerodynamic baffle
